Indoor Armored Fiber Optic Jumpers SM SC/APC E2000/APC Blue Jacket LSZH
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | SC/APC-E2000/APC Armored Fiber Optical Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM | Cable Material: | LSZH |
|---|---|---|---|
| Cable Diameter: | 2.0mm | Connector: | SC/APC, E2000/APC |
| Cores: | Simplex | Length: | 20M |
| High Light: | simplex fiber patch cord,fiber optic jumper |
||
Product Description

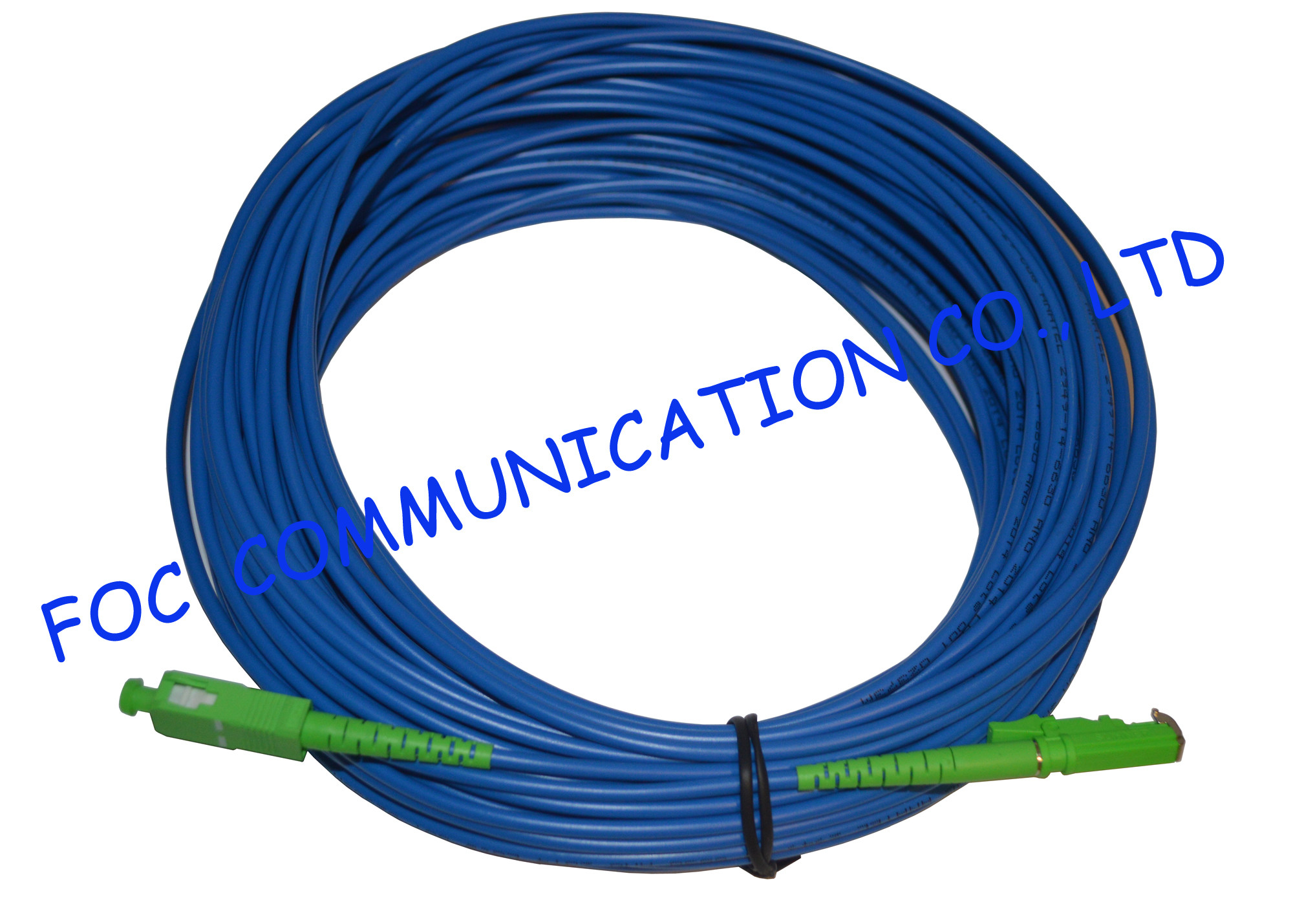

Indoor Armored Fiber Optic Jumpers SM SC/APC E2000/APC Blue Jacket LSZH
Armored fiber optic jumpers single mode SC/APC - E2000/APC is with stainless steel tube inside to avoid fiber damage. It is soft, flame retardant and can be deployed freely. The armored fiber patch cord can be used in harsh environment. Various connectors, such as FC, SC, ST, LC, FC, MU, E2000 can be optional.
Single mode G.652D, G.655, G.657, multimode OM1, OM2, OM3 armored patch cord
Simplex, duplex, multi-core armored patch cord
2.0mm, 3.0mm outer diameter armored patch cord
Armored cable outer jacket color blue, grey, aqua, yellow, orange or others
FOC COMMUNICATION CO., LTD is the professional manufacture of fiber optic components. We produce the whole series fiber optic patch cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.
Features
Full steel armored protection of optical fiber
High tensile resistance and anti-pressure
Various fiber optic connectors available
Micro diameter stainless steel tube for protection
High flexibility
Applications
CATV
Fiber To The Home
Local Area Network (LAN), Wide Area Network (WAN)
Optical active component and equipment
Test equipment, Military industry,
Measuring equipments
CATV
Specifications
|
Item |
|
Single Mode |
|
Multimode |
|
Optical fiber diameter |
|
9/125um |
|
62.5/125um 50/125um |
|
Insertion loss |
|
PC＜0.3 dB APC＜0.2 dB |
|
PC＜0.3 dB |
|
Return loss |
|
PC＞45 dB APC＞60 dB |
|
PC＞25 dB |
|
Insert-pull test |
|
(1000 times)＜0.3 dB |
||
|
Interchanging |
＜0.2 dB |
|||
|
Operating temperature |
|
﹣40℃～＋80℃ |
||
Technical Test Data
|
Test item |
Test condition |
|
Wet-resistance |
Temperature:85ºC/relative humidity 85％/14days/insertion loss≤0.1dB |
|
Temperature change |
Temperature: -40ºC~+75ºC/relative humidity 10％-80％ /42 repetitions/14days/ insertion loss≤0.1dB |
|
Water resistance |
Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB |
|
Vibrancy |
Swing 1.52mm/frequency 10Hz～55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB |
|
Load bend |
0.454kg load/100circles insertion loss≤0.1dB |
|
Load torsion |
0.454kg load/10 circles insertion loss ≤0.1dB |
|
Tensility resistance |
0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB |
|
Strike |
High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB |
|
Reference standard |
Bellcore TA-NWT-001209 insertion loss≤0.1dB |
Rema Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.
