Multimode Fiber Optic Fused Coupler 1 × 2, FC / LC connector
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | Multimode FBT Coupler LC and FC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/blister box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Fiber Type: | Multimode | Cable Type: | LSZH Jacket |
|---|---|---|---|
| Fiber Tube: | 0.9mm Tube | Connector Type: | FC, SC, LC |
| Port: | 1*2 | Operating Wavelength: | 850/1300nm |
| High Light: | passive optical splitter,fiber optic splitters |
||
Product Description

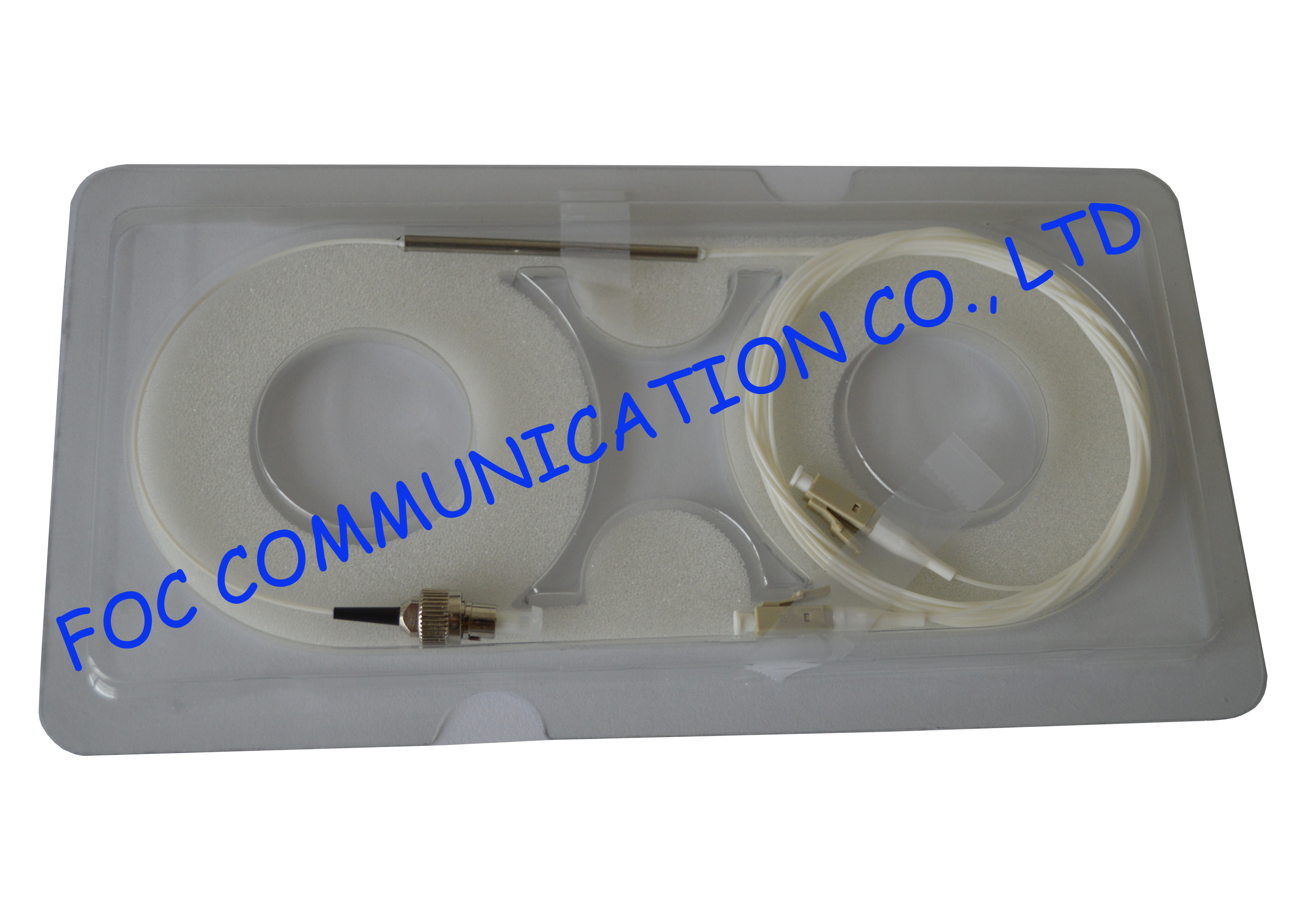

Multimode Fiber Optic Fused Coupler 1 × 2, FC / LC connector
Steel tube type multimode fiber optic fused couplers are stable and with low insertion loss, made from corning fibers with core diameter of 50um or 62.5um. Multimode fused fiber optic couplers are wavelength independent over a broad range of wavelengths with uniform power splitting and distribution It is with equal ratio. They are mainly used in telecommunication equipment, CATV system, test equipment and passive fiber optic networks.
Features
Low Insertion Loss
Wide Operating Wavelength
Compact Size
Excellent Environmental & Mechanical Stability
Compact design, suitable for mounting in equipments, ODF or splice closure
Wavelength 850nm or 1310nm
250um bare fiber, 0.9mm loose tube, 2.0mm or 3.0mm are available
Application
Local Area Network
CATV Systems
Subscriber Loop
Fiber Optic Instruments
Fiber Sensors
Performance Specifications
|
Type |
Multimode Standard FBT Couplers |
|
|
Coupling Ratio(%) |
50/50 |
|
|
Grade |
P |
A |
|
Excess Loss(Typ.) |
0.8 |
1.0 |
|
Max. Insertion Loss(dB) |
3.9 |
4.1 |
|
Uniformity(Max)(dB) |
0.6 |
0.8 |
|
Directivity(dB) |
≥40 |
|
|
Operating Wavelength(nm) |
600～1600 |
|
|
Central Wavelength(nm) |
850, 1310 or 850/1310 |
|
|
Operating Temperature(℃) |
-40～+85 |
|
|
Fiber Type |
Corning multimode 50/125um, 62.5/125um fiber |
|
|
Fiber Pigtail Length(m) |
1 or Customer on request |
|
|
Port Configuration |
1×2 or 2×2 |
|
|
Package Dimension(mm) |
A, B, C, D, M |
|
|
Type |
Multimode Tree/Star Couplers |
||
|
Configuration Type |
N×4(n=1,2,4) |
N×8(n=1,2,8) |
N×16(n=1,2,16) |
|
Max. Insertion Loss(dB) |
7.6 |
12 |
16 |
|
Uniformity(dB) |
1.5 |
2.0 |
2.5 |
|
Directivity(dB) |
≥40 |
||
|
Operating Wavelength(nm) |
600～1600 |
||
|
Central Wavelength(nm) |
850 or 1300 |
||
|
Operating Temperature(℃) |
-40～+85 |
||
|
Fiber Type |
Corning multimode 50/125um, 62.5/125um fiber |
||
|
Fiber Pigtail Length(m) |
1 or Customer on request |
||
The specs. is for 1×N Coupler only
Ordering Information
|
Type |
S=Coupler A=In-line Attenuator W=WDM |
|
Port |
0101=1×1, 0102=1×2, ..., 0404=4×4, 0132=1×32, 0232=2×32, |
|
Wavelength |
98=980, 13=1310, 14=1490, 15=1550 1314=1310&1490, 1315=1310&&1550, 345=1310&1490&1550 85=850, 9815=980&1550, 8513=850&1310 |
|
Coupling Ratio(Attenuation or stage) |
01=1/99 or 1dB or 1 Stage, 02=2/98 or 2dB or 2 Stage, 03=3/97 or 3dB or 3 Stage,05=5/95 or 1dB, 10=10/90 or 10dB, 15=15/85 45=45/55 00=equal ratio, X=Others |
|
Fiber Type |
1=G652D, 2=G657A, 5=50/125, 6=62.5/125, X=Others |
|
Package Dimension |
B1, B2, ..., F, K |
|
Pigtail Type |
B=250Dm Bare fiber, L=900Dm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
|
Pigtail Length |
05--20=0.5--2.0m, 0=Adapter, X=Others |
|
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
