19" Fiber Optic Patch Panel , SC/APC 24 Port Network Patch Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | 24 Port Fiber Optic Patch Panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Packaging Details: | 1PCS/BOX |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000PCS/MONTH |
|
Detail Information |
|||
| Rack Mount: | Sliding Type, Fixed Type | Material: | Cold Steel |
|---|---|---|---|
| Port: | 12,24,32,48,72Port | Connector: | SC, FC, LC, ST, E2000 |
| High Light: | optical fiber patch panel,mpo fiber patch panel |
||
Product Description

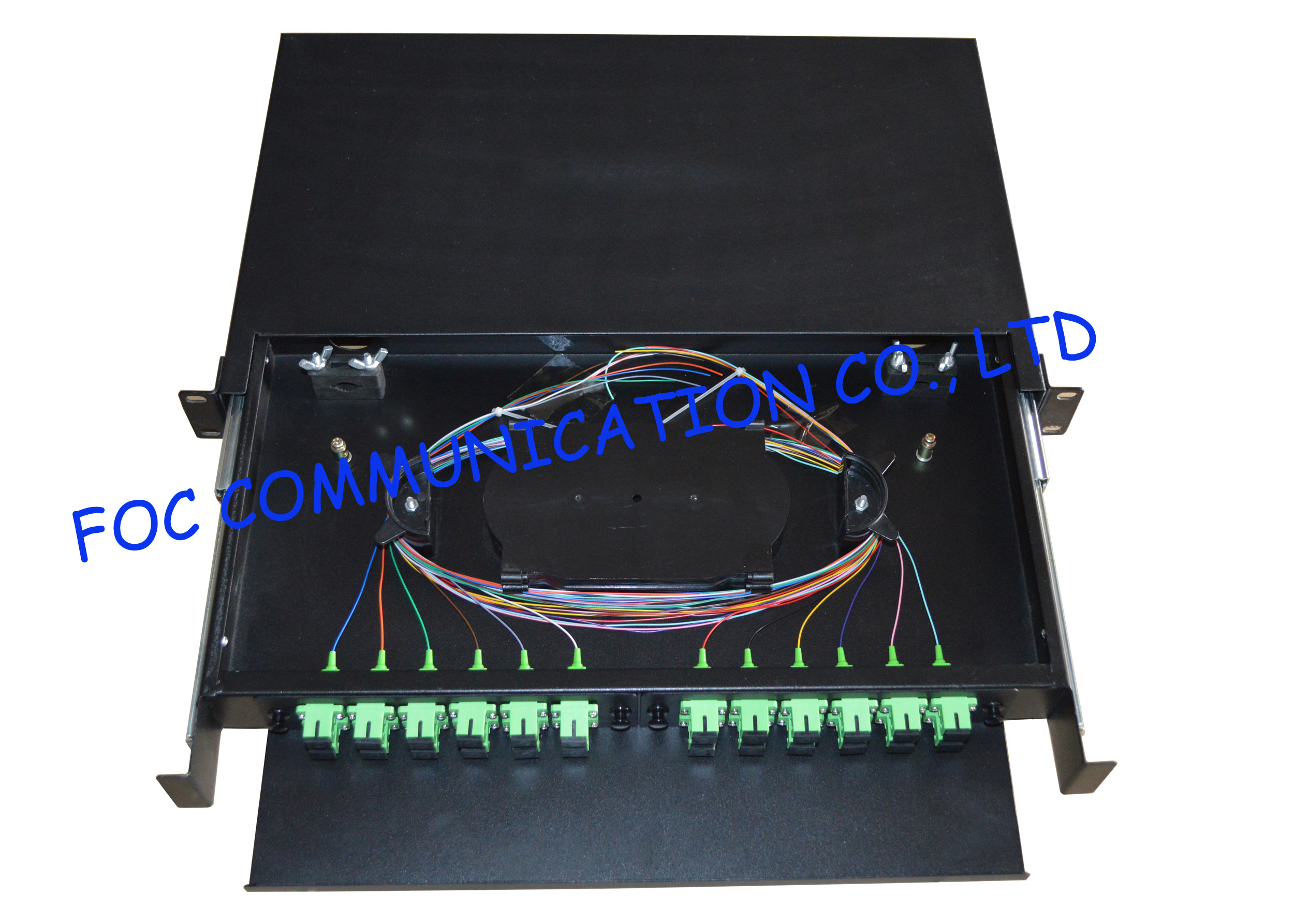

19" Fiber Optic Patch Panel , SC/APC 24 Port Network Patch Panel
Fiber optic distribution box is loaded with 24pcs SC fiber optic adapters simplex. It is rack mount type.
This 1U (1.75") Fiber Optic patch panel is perfect for connecting single mode or multimode SC fiber jumper cables in an equipment rack or enclosure.
We design a complete selection of fiber optic patch panel configurations for fiber optic connection. Each panel is constructed for the highest quality cold-rolled steel and features a durable black powder finish. Panels are available with FC, SC, ST, LC, MTRJ, MPO or E2000 style adapters.
Features
High density, this design allows up to 48 fibers using LC duplex adapter
User-friendly fiber management system
Sliding out fiber management, easy access
Can be pre-loaded with fiber optic adapters, pigtails, splice trays
Simple, quick installation, reliable fiber termination
Supports minimum bend radius requirements to ensure low loss transmission
Specifications
|
Fiber Capacity |
24 |
|
Connector Type |
SC Simplex or LC Duplex |
|
Height |
1U (44mm) |
|
Patch Panel Type |
Rack Mount, Drawer Type |
|
Single mode or Multimode |
Single mode |
|
Color |
Black |
Ordering Information
|
Type |
Rack mount sliding type, Rack mount fixed type patch panel |
|
Ports |
12ports, 24ports, 32ports, 36ports, 48ports, 72ports, 96ports or as customer request |
|
Connector |
FC, SC, ST, LC or others |
|
Cable Diameter |
￠0.9, ￠2.0, ￠3.0 |
|
Cable Length |
1M, 1.5M or others |
Fiber Optic Patch Panel, Optical Fiber Patch Panel, ODF, Fiber Optic Distribution Frame
