24Port E2000 Fiber Optic Patch Panel Full Loaded Adapters And Pigtails For Telecom
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | ODF-FRB(E2000) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Packaging Details: | 1PCS/BOX |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000PCS/MONTH |
|
Detail Information |
|||
| Rack Mount: | Sliding Type, Fixed Type | Material: | Cold Steel |
|---|---|---|---|
| Port: | 12,24,32,48,72Port | Connector: | SC, FC, LC, ST, E2000 |
| High Light: | optical fiber patch panel,rack mount fiber patch panel |
||
Product Description

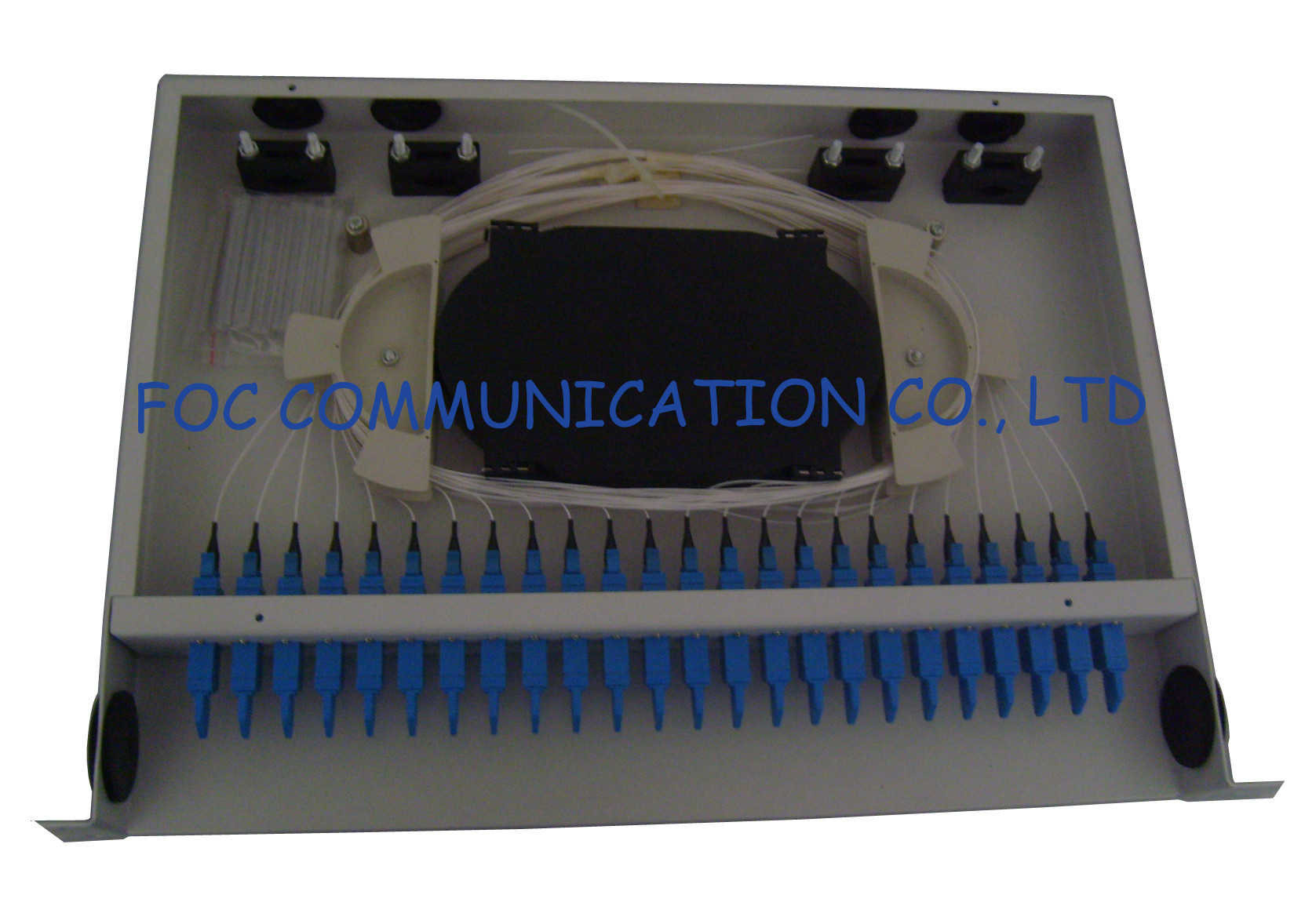

24Port E2000 Fiber Optic Patch Panel Full Loaded Adapters And Pigtails For Telecom
Rack-mounted fiber patch panels are used to terminated and distributed optical fiber cables. They are convenient to organize and connect the fiber optic links. These patch panels are applied to many fiber optic products, such as DWDM MUX DEMUX, Rack Chassis Splitter, Optical Distribution Frame (ODF) etc. They are fully stable with no risk of movement and offer secure environment for fiber optic adapters, patch cables and pigtails.
The 24 port fiber optic patch panel is reliable fiber optic organization and distribution products, it is sliding type, convenient for operations and maintenance, The 24 port fiber patch panel has wide operation temperature and suit density fiber optic installations.
Features
Light weight, high strength, dust resistant
Enough space for termination distribution and fiber storage
The shell is high intensified & insulated material, thus having excellent mechanic performance
It is solid and durable
Adapters output:24 core
Strength core and shell was insulated and with grounding lead
Suitable for inserting installation of SC, FC, ST and LC adaptor
Full accessories for convenient operations
Applications
Fiber network installation
SFP, XFP, TOSA, ROSA inspection
Fiber instrument output inspection
Fiber connector end face inspection
Specifications
Environment temperature: -40°C ~+80°C
Relative humidity: ≤85% (30°C)
Atmosphere pressure: 70~106KPa
Insulated Resistance: ≥2×10MΩ/500V (DC)
Intensity ≤ 15kv (DC) /1min no spark-over and no flying arc
Fiber bending radium guaranteed more than 40mm: ≥40mm
Ordering Information
|
Type |
Rack mount sliding type, Rack mount fixed type patch panel |
|
Ports |
12ports, 24ports, 32ports, 36ports, 48ports, 72ports, 96ports or as customer request |
|
Connector |
FC, SC, ST, LC or others |
|
Cable Diameter |
￠0.9, ￠2.0, ￠3.0 |
|
Cable Length |
1M, 1.5M or others |
Fiber Optic Patch Panel, Optical Fiber Patch Panel, ODF, Fiber Optic Distribution Frame
