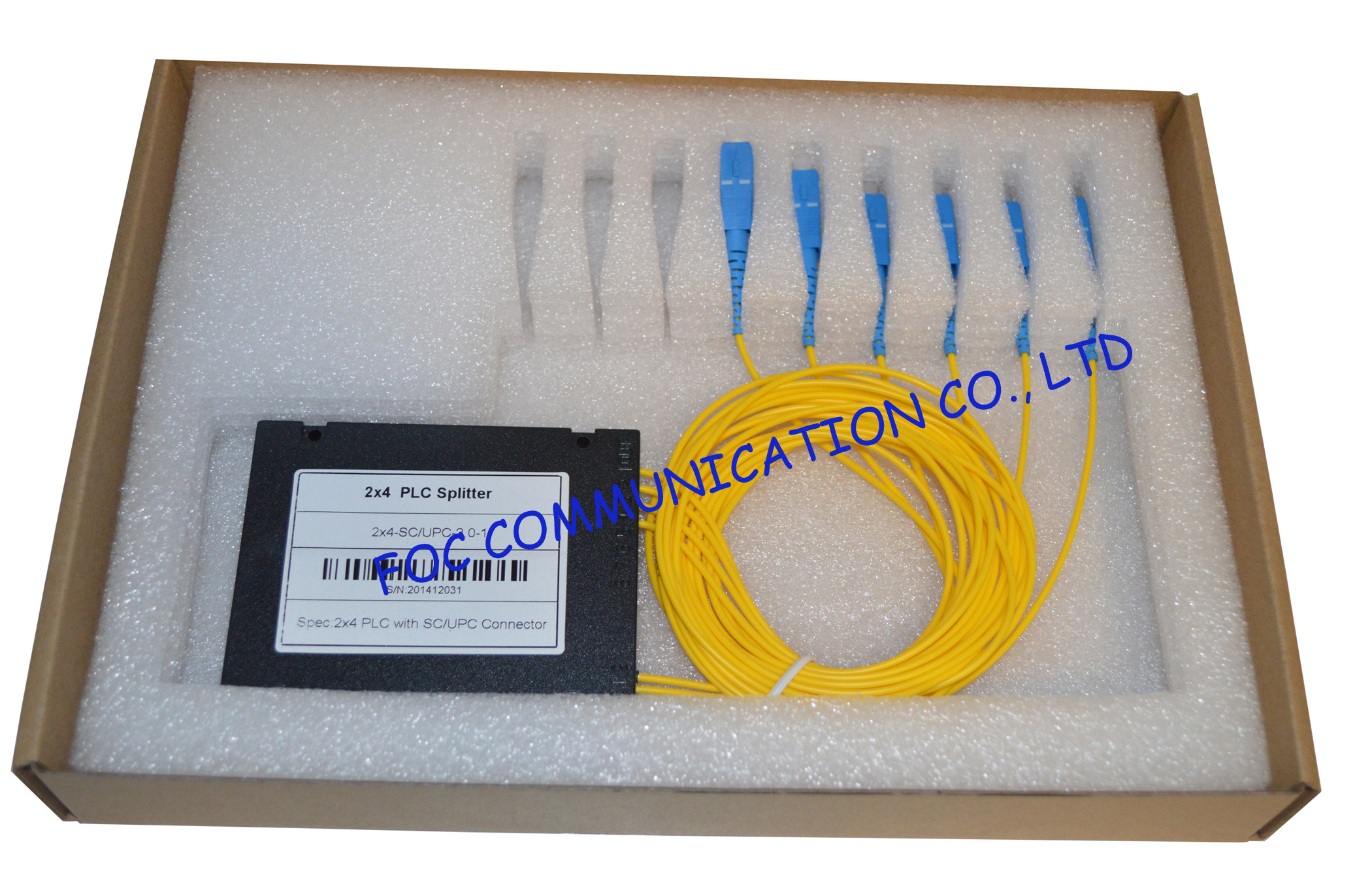

    2XN Series Fiber PLC Splitter , Planar Lightwave Circuit Optical Fiber Splitter

    Product Details:

    Place of Origin: China
    Brand Name: FOCABLE
    Certification: ISO Certification and RoHS Compliant
    Model Number: 2x4 Fiber PLC Splitter

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Packaging Details: 1pcs/blister box
    Payment Terms: Western Union, T/T
    Supply Ability: 90000PCS/MONTH
    Get Best Price Contact Now

    Detail Information

    High Light:

    plc optical splitter

    ,

    passive optical splitter

    Product Description

    2XN Series Fiber PLC Splitter Planar Lightwave Circuit Optical Fiber Splitter





    Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be used 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.



    Features

    Applications

    Low insertion loss and high uniform

    Low polarization relevant

    Redundant reliability

    FTTX application

    CATV network

    Passive Optical Network(PON)



    Specifications

    Type

    2x2

    2×4

    2×8

    2×16

    2×32

    2×64

    Operating Wavelength(nm)

    1260~1650

    Insertion loss (dB)

    Typical value

    4.2

    7.5

    10.8

    14.0

    17.4

    20.6

    Maximum value

    4.5

    7.8

    11.0

    14.2

    17.6

    20.8

    Loss uniformity (dB)

    Maximum value

    0.6

    0.8

    1.3

    1.5

    2.0

    2.0

    Polarization dependent loss (dB)

    Maximum value

    0.3

    Wavelength dependent loss (dB)

    Maximum value

    1.0

    Return loss (dB)

    Minimum value

    ≥50

    Directivity (dB)

    Minimum value

    ≥55

    Operating temperature (°C)

    -20 to 75

    Storage temperature (°C)

    -40 to 85

    Optical fiber type

    SMF-28e G657A

    Optical fiber length (m)

    1.0 customer require

    1. All measurement indoor temperature,

    2. Specification exclude connector loss, if with connector, PC,UPC will be higher 0.2db,APC 0.3dB.

    3. Exclude connector



    http://photonchina.com/admin/editor/UploadFile/201241593322543.jpg

    Package Dimensions

    PLC Type

    2x2

    2x4

    2x8

    2x16

    2x32

    2x64

    SS tube1
    (mm)

    4x4x45

    4x4x45

    4x4x45

    4x7x55

    4x7x55

    4x12x80

    SS tube2
    (mm)

    4*7*55

    4*7*55

    4*7*55

    4*7*55

    6x20x80



    8x20x80







    ABS BOX Package

    (mm)







    100x80x10

    120x80x18

    141x118x18







    PLC

    Channel

    Type

    Package Type

    Fiber Type

    Connector Type In

    Connector Type Out

    Fiber

    Length



    P=

    PLC

    0202=1x2

    0204=1x4

    0208=1x8

    0216=1x16

    0232=1x32

    0264=1x64

    2128=2x128

    D=bare fiber device(S.S tube 1)

    F=Fan Out type

    B=ABS Box

    M=Mini Module(S.S Tube 2)

    R=19inch Rack Mount

    L=LGX Box

    T= ODF

    W=Wall Mount

    0=250um bare fiber



    1=900um loose tube



    2=2mm cable



    3=3mm cable

    0=no connector

    FU=FC/UPC

    FA=FC/APC

    SU=SC/UPC

    SA=SC/APC

    LU=LC/UPC

    LA=LC/APC

    S=Specify

    0=no connector

    FU=FC/UPC

    FA=FC/APC

    SU=SC/UPC

    SA=SC/APC

    LU=LC/UPC

    LA=LC/APC

    S=Specify

    1.0=1meter

    1.5=1.5 Meter

    2.0=2.0 Meter

    3.0=3.0 Meter




    We can produce many serials of PLC splitters including:
    1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
    Bare fiber series
    Mini loose tube package
    ABS Module type
    LGX box type
    Rack Mount patch panel for PON application.
    Wall Mount patch panel for PON application
    Inline fiber optic splice closure type
    Erect fiber optic splice closure type
