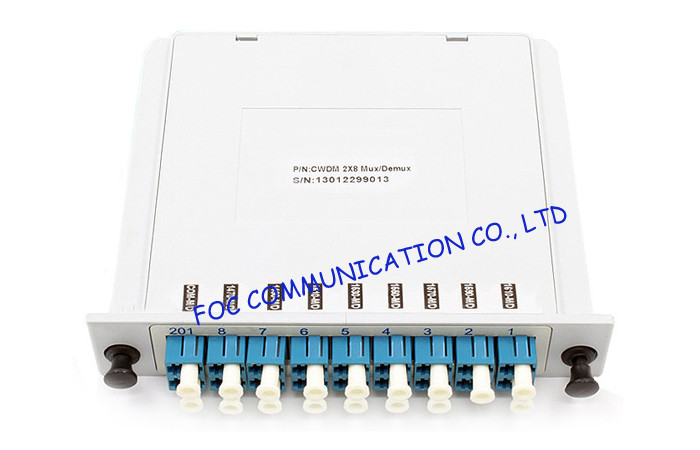

900um Fiber Wavelength Division Multiplexing WDM Cassette Type
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | ISO Certificate and RoHS |
Model Number: | 1310/1550nm WDM |
Payment & Shipping Terms:
Minimum Order Quantity: | 10PCS |
---|---|
Packaging Details: | 1pcs/blister box |
Payment Terms: | T/T, Western Union |
Supply Ability: | 10000PCS/MONTH |
Detail Information |
|||
Wavelength: | 1310nm And 1550nm | Connector: | SC/APC, SC/UPC, FC/APC, FC/UPC, LC, ST |
---|---|---|---|
Fiber Type: | 250um, 900um, 2mm, 3mm | Fiber Length: | 1m, 2m, Or As Per Customer Request |
Highlight: | cwdm multiplexer,filter wdm |
Product Description
900um Fiber Wavelength Division Multiplexing WDM Cassette Type
Wavelength Division Multiplexer (WDM) is the device which uses multiple optical maser to transmit multi beam of different wavelengths of laser technology through a single fiber. Each signal is transmitted in its unique channel after the data (text, voice, video and so on) modulated. WDM can increase the existing fiber infrastructure for phone companies and other operators.
DWDM (dense wavelength division multiplexing) system can support more than 150 different wavelengths of light beam transmitted simultaneously, and each beam peaked at 10Gb/s data rates. This system provides data transmission over 1Tb/s rate but the cable is smaller than a human hair.
Wavelength division multiplexing technology as a system concept, there are 3 modes, wavelength division multiplexing at 1310 nm and 1550 nm wavelength, CWDM (Coarse Wavelength Division Multiplexing) and DWDM (Dense Wavelength Division Multiplexing).
Features
Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path
Applications
Line monitoring
WDM network
Telecommunication
Cellular Application
Fiber optical amplifier
Access Network
Specifications
Operating wavelength(nm) |
1260~1620 |
|
Center wavelength Accuracy(nm) |
±0.5 |
|
Channel Spacing(nm) |
20 |
|
Channel Passband (@-0.5dB bandwidth) (nm) |
>13 |
|
Insertion loss(dB) |
Reflect channel |
≤0.6 |
Pass channel |
≤0.4 |
|
Insertion loss variation(dB) |
<0.3 |
|
Channel Ripple |
<0.3 |
|
Isolation(dB) |
Adjacent |
>30 |
Non-adjacent |
>40 |
|
Insertion loss temperature sensitivity(dB/℃) |
<0.005 |
|
Polarization dependent loss(dB) |
<0.1 |
|
Polarization mode dispersion(ps) |
<0.1 |
|
Directivity(dB) |
>50 |
|
Return Loss(dB) |
>45 |
|
Maximum power handling(mW) |
300 |
|
Operating Temperature(℃) |
-20~+70 |
|
Storage temperature(℃) |
-40~+85 |
|
Package dimension(mm) |
¢5.5*L34(L38 for 900um loose tube) |
Note: All the data above does not include connectors.
Ordering Information
CWDM |
|
|
|
|
|
|
Channel Spacing |
Pass Channel |
Fiber Type |
Fiber Length |
Connector |
|
C=CWDM Grid
|
27=1270nm …… 47=1470nm 49=1490nm …… 61=1610nm |
1=Bare Fiber 2=900um Loose tube |
1=1m 2=2m 3=Customized |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
We can produce WDM including the following:
CWDM device, CWDM module, 1310/1550 Filter WDM, 1310/1490/1550nm Filter WDM, 850/1310nm Filter WDM, 980/1550nm Filter WDM
DWDM device, 100G DWDM Module, 200G DWDM Module
OADM Module (Add/Drop)
Thermal AWG Module, Athermal AWG Module
