Low Insertion Loss Plc Fiber Optic Splitter / Fttx Ftth Splitter Optical Fiber
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | ISO Certification and RoHS Compliant |
Model Number: | 1*32 PLC Splitter Module |
Payment & Shipping Terms:
Minimum Order Quantity: | 10PCS |
---|---|
Packaging Details: | 1pcs/carton box |
Payment Terms: | Western Union, T/T |
Supply Ability: | 90000PCS/MONTH |
Detail Information |
|||
Fiber Type: | G.652D, G.657A | Cable Material: | PVC, LSZH |
---|---|---|---|
Tube: | Bare Fiber, 0.9mm, 2.0mm, 3.0mm | Connector Type: | SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC |
Port: | 1*2, 2*2, 1*4, 2*4, 1*8, 2*8, 1*16, 2*16, 1*32, 2*32, 1*64, 2*64 | Pigtail Length: | 0.5M, 1.0M, 1.5M |
High Light: | plc optical splitter,fiber optic splitters |
Product Description

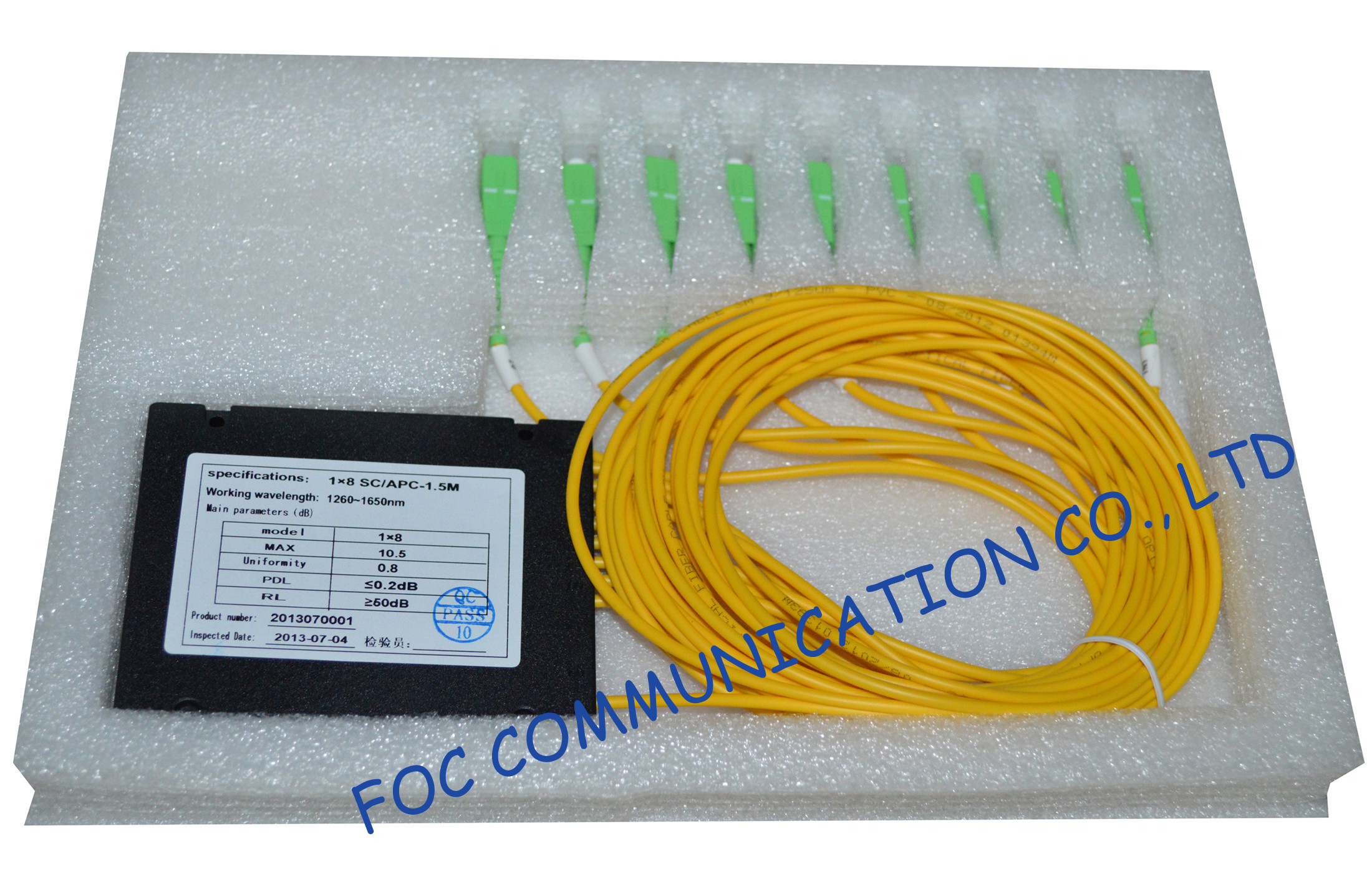

Low Insertion Loss Plc Fiber Optic Splitter / Fttx Ftth Splitter Optical Fiber
Planar lightwave circuit splitter (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the advantages of small volume, wide bandwidth, high reliability, excellent uniformity. Optical fiber splitter is especially suitable for passive optical networks (EPON, BPON, GPON) which is connected with the terminal equipment and realize the optical power distribution.
FOC COMMUNICATION CO., LTD provides 1*N and 2*N fiber optic splitters. And these PLC splitters can be made as per customer request.
Features
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Optical Signal Distribution
Test Equipments
Optical Specifications
Parameter |
Unit |
Specification (P Grade) |
|||||
Channel Number |
|
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
Operation Wavelength |
nm |
1260~1650 |
|||||
Insertion Loss (Max.) |
dB |
4.3 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
Uniformity (Max.) |
dB |
0.5 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
Return Loss |
dB |
≥50 |
|||||
Directivity |
dB |
≥50 |
|||||
Operating Temperature |
℃ |
-40~+85 |
|||||
Storage Temperature |
℃ |
-40~+85 |
Parameter |
Unit |
Specification (P Grade) |
|||||
Channel Number |
|
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
Operation Wavelength |
nm |
1260~1650 |
|||||
Insertion Loss (Max.) |
dB |
4.3 |
7.6 |
11.0 |
14.8 |
17.9 |
21.5 |
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
Return Loss |
dB |
≥50 |
|||||
Directivity |
dB |
≥50 |
|||||
Operating Temperature |
℃ |
-40~+85 |
|||||
Storage Temperature |
℃ |
-40~+85 |
Note: All the data above does not include connectors.
Ordering Information
PLC |
|
|
|
|
|
|
|
Port |
Fiber Type |
Input |
Output |
Pigtail Length |
Connector |
|
0102=1x2 |
1=G652D, 2=G657A |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
05-20=0.5--2.0m, 0=Adapter, X=Others |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
