Tray Fiber PLC Splitter 1x16 SC UPC Low PDL Packed In ODF
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1*16 PLC Splitter Tray Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/blister box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Fiber Type: | G657A | Type: | Rack Mount Type |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Operating Temperature: | -40℃ To 85℃ |
| Connector: | SC/LC/FC/ST | Name: | Fiber PLC Splitter |
| High Light: | Tray Fiber PLC Splitter,Low PDL Fiber PLC Splitter,SC UPC Optical Fiber Splitter |
||
Product Description

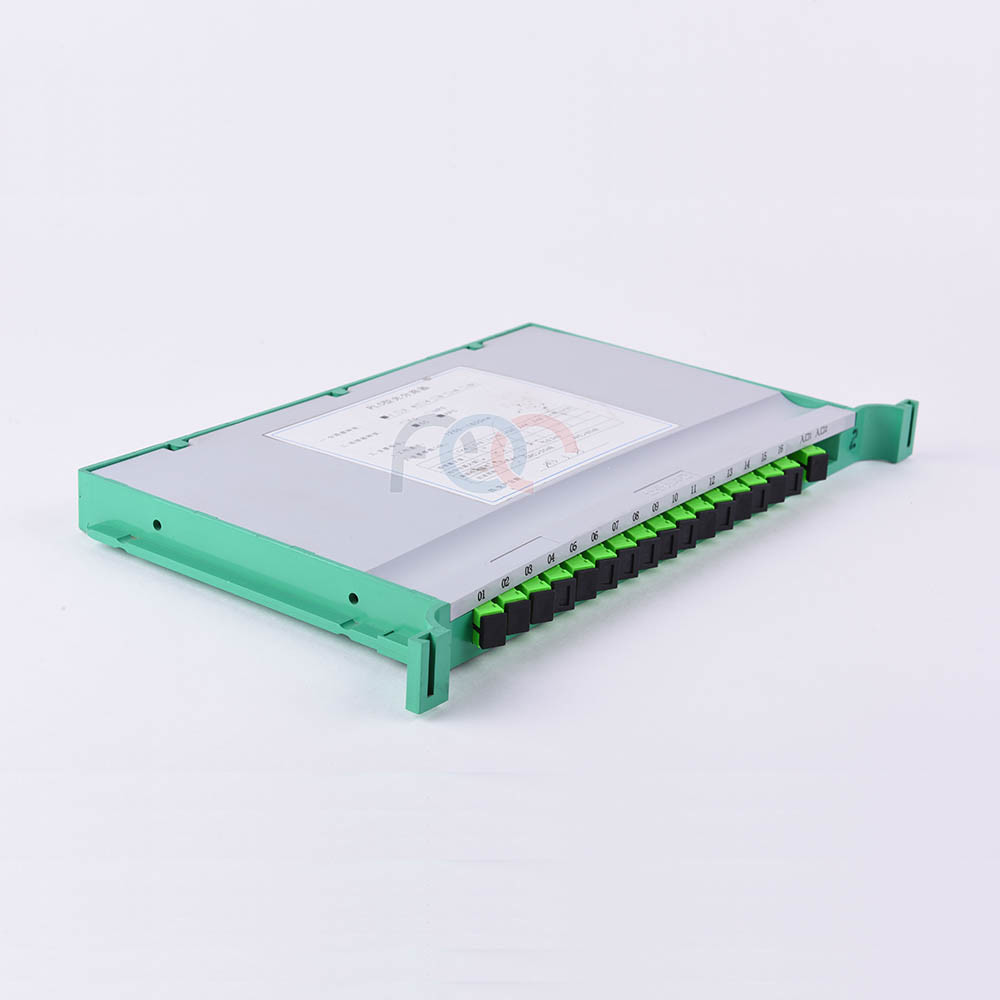

Tray Type Fiber Optic PLC Splitter, 1x16 SC / UPC Low PDL, Packed in ODF
Plastic body tray type optical divider module mainly is the application of light distribution network (ODN), main placed in the local convergence point (LCP) ODF cabinet or cable connector box place, will be the main optical fiber power average distribution for several road, so as to realize the village end (building end, villas) multi-user access.
This product is mainly used in electric design credit standard ODF cabinet or cable connector box. Panel has one or two imported FC (or SC) flange, as fiber input, several imported FC (or SC) flange, as fiber output end, compact structure, the user plug and play.
The plastic pallet, can install a variety of spectral ratio PLC or FBT light shunt, performance parameter please refer to the cassette light shunt. At the same time can also choose the light mouth left oblique out or right Angle out two kinds, in order to meet different needs. Cooperate with adjustable slide, can be installed in all sorts of ODF or cable transfer box.
FOC COMMUNICATION CO., LTD provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 1U rack mount type PLC splitters.
Features
Compact design
Low insertion loss and low PDL
High reliability
High channel counts
Wide wavelength range
Large operating and temperature range
Customized packaging and configuration
Full Telcordia GR1209/1221 qualifications
Applications
Telecommunications
Local area network
Fiber to the home
Video transmission
Fiber optic sensing
Testing instruments
CATV
Optical Specifications
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.6 |
11.0 |
14.8 |
17.9 |
21.5 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
Note: All the data above does not include connectors.
Ordering Information
|
PLC |
|
|
|
|
|
|
|
|
Port |
Fiber Type |
Input |
Output |
Pigtail Length |
Connector |
|
|
0102=1x2 |
1=G652D, 2=G657A |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
05-20=0.5--2.0m, 0=Adapter, X=Others |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
