1650nm 1×32 PLC Fiber Optic Splitter Rack Mount LSZH Jacket
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1*32 Fiber Optic Splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/blister box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Fiber Type: | G.657A | Cable Type: | PVC Or LSZH Jacket |
|---|---|---|---|
| Fiber Tube: | 0.9mm Tube, 2.0mm Tube, 3.0mm Tube | Connector Type: | SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC |
| Port: | 1*32 | Operating Wavelength: | 1260-1650nm |
| High Light: | 1×32 PLC Fiber Optic Splitter,1650nm PLC Fiber Optic Splitter,LSZH Network Lan Splitter |
||
Product Description
High Stability Fiber Optic Splitter 1 × 32 , Rack Mount Local Area Network lan splitter
Fiber optic PLC splitter is an optical power device based on quartz plate planar of light wave technology, which is widely used in local side or termination of Passive Optical Network (EPON, BPON, GPON etc.) for splitting of optical signal. It offers superior optical performance, high stability and high reliability; meet various application requirements in different environments.

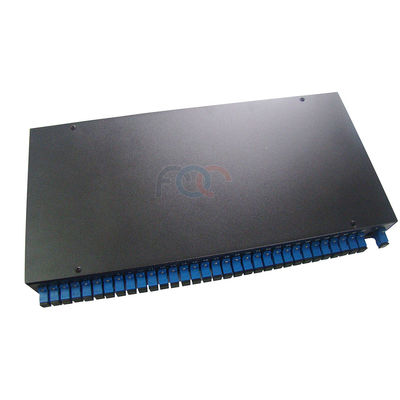

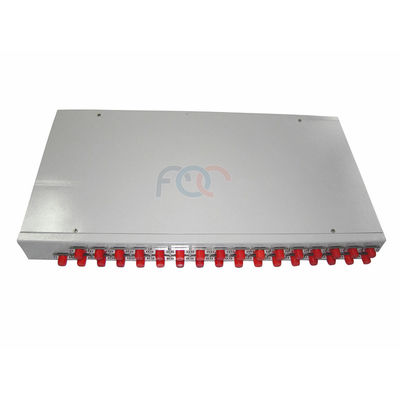

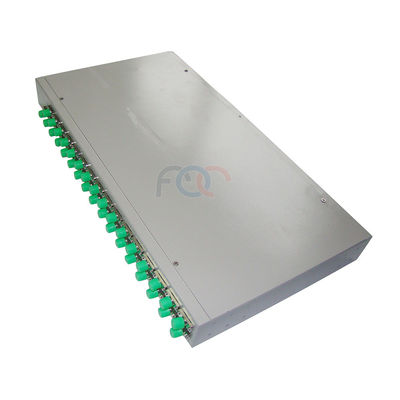

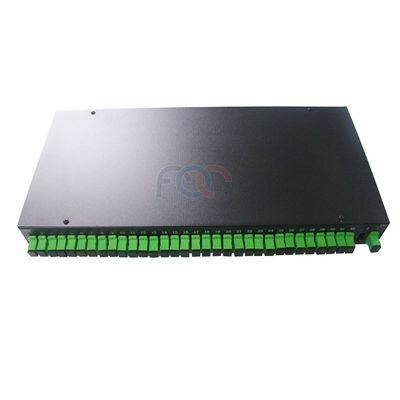

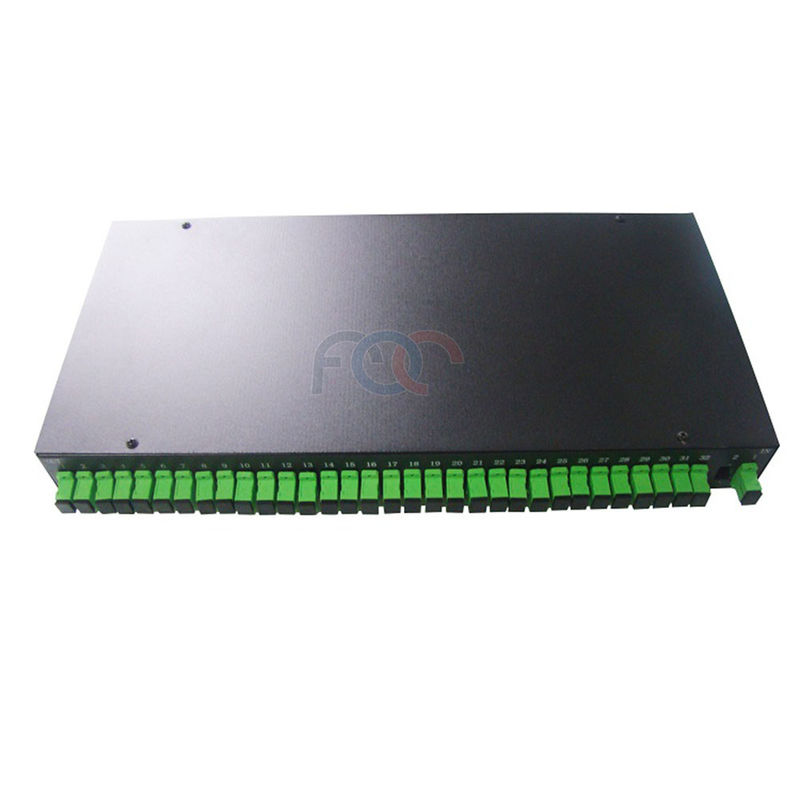

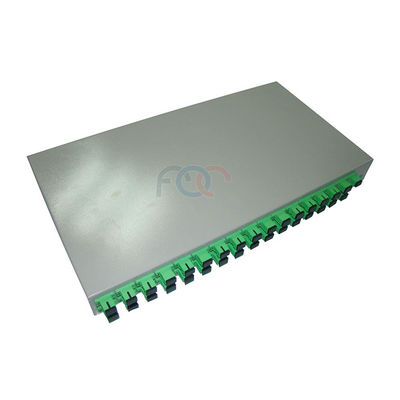

19″ 1U Rack Mounted PLC Splitter is ranging from 1×2 ports to 2×64 ports. It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network. The PLC splitter inside the box is plastic box type which available for 2.0mm pigtail. Each 19″ 1U Rack Mounted PLC Splitter is fully loaded with panels, adaptors (optional) and accessories and is ready for installation.
Suitable for installation of FC, SC, LC, etc. adaptors, and suitable for plastic box type PLC splitters module.
Features
Low insertion loss
Low excess loss
Low PDL
Various coupling ratio
High stability and reliability
Compact Size
Applications
Long-Haul Telecommunications
CATV Systems and Fiber Sensors
Local Area Network
Mini size EDFA
Mini size transmitter and receiver module
Optical communication systems
Testing instruments
Performance Specifications
| Parameter | Unit | Specification (P Grade) | |||||
| Channel Number | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Operation Wavelength | nm | 1260～1650 | |||||
| Insertion Loss (Max.) | dB | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Uniformity (Max.) | dB | 0.5 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 | |||||
| Directivity | dB | ≥50 | |||||
| Operating Temperature | ℃ | -40～+85 | |||||
| Storage Temperature | ℃ | -40～+85 | |||||
| Parameter | Unit | Specification (P Grade) | |||||
| Channel Number | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Operation Wavelength | nm | 1260～1650 | |||||
| Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 | |||||
| Directivity | dB | ≥50 | |||||
| Operating Temperature | ℃ | -40～+85 | |||||
| Storage Temperature | ℃ | -40～+85 | |||||
Note: All the data above does not include connectors.
Ordering Information
| PLC | ||||||
| Port | Fiber Type | Input | Output | Pigtail Length | Connector | |
PLC |
0102=1x2 0104=1x4 0108=1x8 0116=1x16 0132=1x32 0164=1x64 0204=2x4 0208=2x8 0216=2x16 0232=2x32 0264=2x64 |
1=G652D, 2=G657A | L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter | L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter | 05-20=0.5-2.0m, 0=Adapter, X=Others | FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We deliver products and we deliver efficient service for you!
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare Fiber Optic Coupler
Blockless Fiber Optical Splitter
ABS box Fiber Optic Splitter
Pallet Type Optical Fiber Splitter
Rack Mount Optical Fiber Coupler
Wall Mount Fiber Optic Coupler
Advantages
1. Guaranteed high quality products
2. Fast delivery speed
3. Safety Shipping
4. Quick Response within 24hours
