FC UPC 1x8 Rack Mount Plc Splitter For FTTH Passive Optical Network
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | Rack mount PLC Splitter 1*8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/carton box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Port: | 1*8 | Patch Panel Height: | 1U |
|---|---|---|---|
| Connector Type: | FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC | Patch Panel Material: | Cold Steel |
| Fiber Type: | G657A | Application: | FTTH FTTB FTTX Network |
| High Light: | 1x8 Rack Mount Plc Splitter,FC UPC Rack Mount Plc Splitter,FTTH Passive Optical Plc Splitter |
||
Product Description
Rack Mount Fiber Plc Splitter 1x8 used for FTTH Passive Optical Network
Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network.
The full name of PLC splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from the central office to customer premises in FTTx and FTTH networks.
PLC Splitter offers a cost-effective and space-saving networking solution in an optical transmission system.

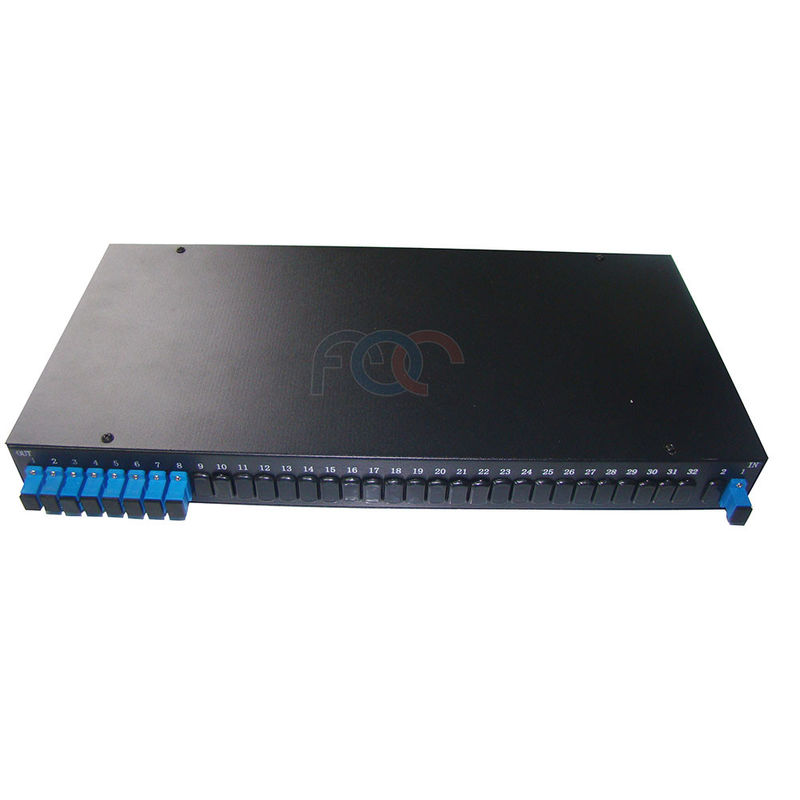

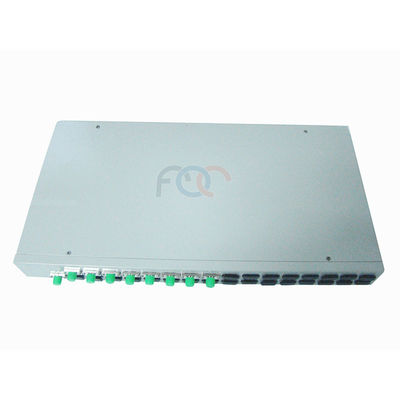

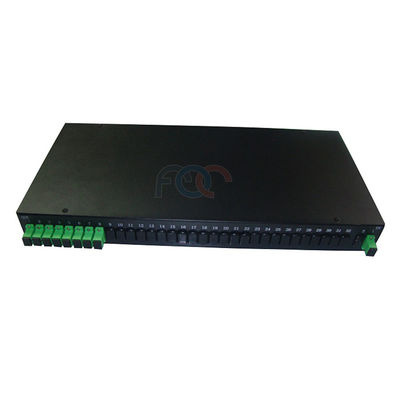

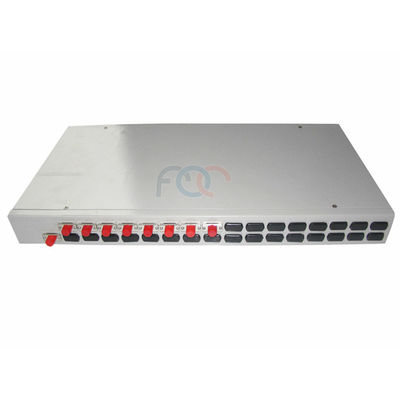

Rack Mount PLC Splitter is packaged in a 19-inch rack mount panel. Rack Mounted PLC Splitters are widely used for FTTH Passive Optical Network as passive optical splitters, including EPON (as EPON Splitter) and GPON (as GPON Splitter).
PLC Splitters are available in a variety of port configurations, including 1×2 splitter, 2×4 splitter, 2×8 splitter, 2×16 splitter, 2×32 splitter, 2×64 splitter, 1×2 splitter, etc.
Features
Low Polarization Dependent Loss
Low Insertion loss
High Back-reflection Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Optical Signal Distribution
Test Equipments
Optical Specifications
Parameter | Unit | Specification (P Grade) | |||||
Channel Number |
| 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
Operation Wavelength | nm | 1260～1650 | |||||
Insertion Loss (Max.) | dB | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
Uniformity (Max.) | dB | 0.5 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Return Loss | dB | ≥50 | |||||
Directivity | dB | ≥50 | |||||
Operating Temperature | ℃ | -40～+85 | |||||
Storage Temperature | ℃ | -40～+85 | |||||
Parameter | Unit | Specification (P Grade) | |||||
Channel Number |
| 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
Operation Wavelength | nm | 1260～1650 | |||||
Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Return Loss | dB | ≥50 | |||||
Directivity | dB | ≥50 | |||||
Operating Temperature | ℃ | -40～+85 | |||||
Storage Temperature | ℃ | -40～+85 | |||||
Note: All the data above does not include connectors.
Ordering Information
PLC |
|
|
|
|
|
|
| Port | Fiber Type | Input | Output | Pigtail Length | Connector |
| 0102=1x2 | 1=G652D, 2=G657A | L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter | L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter | 05-20=0.5--2.0m, 0=Adapter, X=Others | FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We can produce many serials of PLC splitters including
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare Fiber PLC Splitters
Blockless Fiber Optical PLC Splitter
ABS box Fiber Optic PLC Splitter
LGX Box Optical PLC Splitters
Cassette Box PLC Splitter
Pallet Type Optical Fiber PLC Splitter
Rack Mount PLC Splitter for PON application
Wall Mount PLC Splitters
Excellent Peformance Fiber Optic Products, Fast Shipping, Best Service is our advantages. We hope to cooperate with you.
