FC APC Fiber PLC Splitter Low PDL 1×2 Fully Loaded For PON CATV
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1*2 PLC Splitter Rack Mount Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/blister box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Fiber Type: | G657A,0.9mm/2.0mm | Type: | Rackmount Type |
|---|---|---|---|
| Application: | FTTH FTTB FTTX PON CATV | Operating Temperature: | -40℃ To 85℃ |
| Connector: | SC/LC/FC/ST | Product Name: | Fiber Optic PLC Spliter/Planar Lightwave Circuit Splitter |
| High Light: | FC APC Fiber PLC Splitter,PON CATV Fiber PLC Splitter,Low PDL Passive PLC Splitter |
||
Product Description

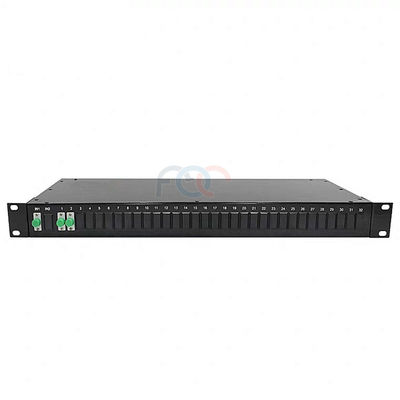

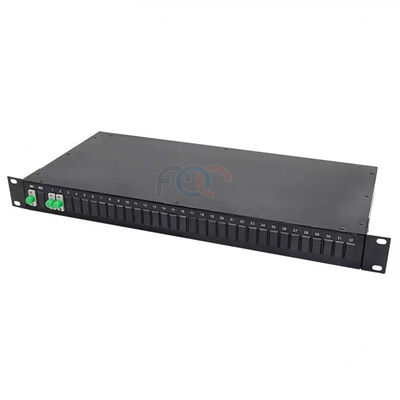

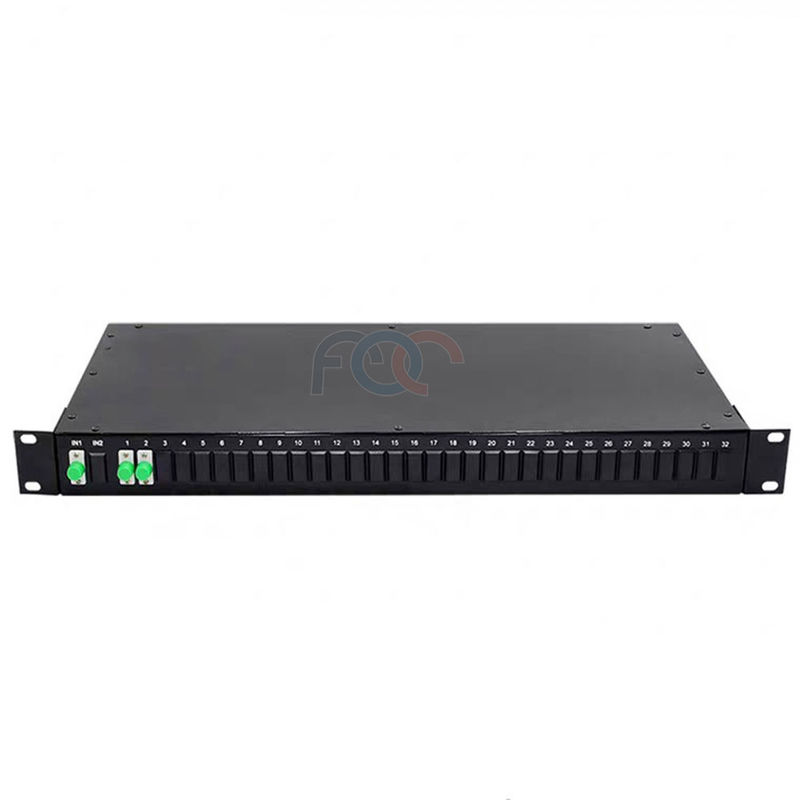

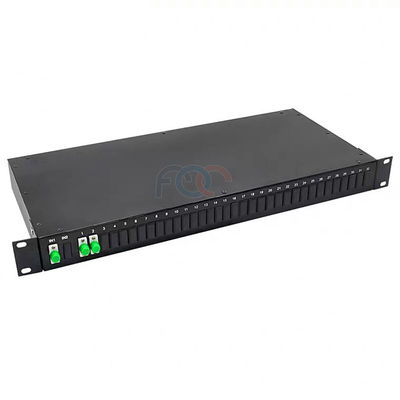

1U Rack Mount Fiber PLC Splitter 1*2 Fully Loaded with PLC Splitter and FC/APC Adapter
1x32 PLC Splitter divides or combines 1 signals inputs to 32 outputs.
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. PLC splitter are based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly, while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. FOC COMMUNICATION CO., LTD offer PLC splitters superior optical performance, high stability and high reliability to meet various application requirements.
We provide a various of 1xN and 2xN PLC 1U and 2U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 rack mount type PLC splitters.
Features
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
- Fiber to the point (FTTX)
- Fiber to the home (FTTH)
- Passive optical networks(PON, GEPON)
- Local area networks (LAN)
- Cable television (CATV)
- Test equipment
Optical Specifications
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.6 |
11.0 |
14.8 |
17.9 |
21.5 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
Note: All the data above does not include connectors.
Ordering Information
|
PLC |
|
|
|
|
|
|
|
|
Port |
Fiber Type |
Input |
Output |
Pigtail Length |
Connector |
|
|
0102=1x2 |
1=G652D, 2=G657A |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
05-20=0.5--2.0m, 0=Adapter, X=Others |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
