ISO 1×4 FC UPC Fiber PLC Splitter Cassette DWDM CWDM Fiber Splitter Box
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1×4 PLC Splitter Cassette Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/carton box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Port: | 1*4 PLC Splitter | Package: | Box Type PLC Splitter |
|---|---|---|---|
| Connector: | SC/UPC | Wavelength: | 1260-1650nm |
| Material: | Connector,LSZH | Splitter: | Modular PLC Splitter |
| High Light: | FC UPC Fiber PLC Splitter,ISO 1×4 Fiber PLC Splitter,DWDM CWDM Fiber Splitter Box |
||
Product Description

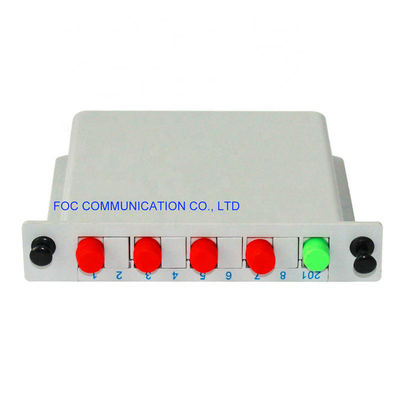

Fiber PLC Splitter Cassette Type SC / APC , 1×4 High Reliability and Stability
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available mini tube type PLC splitter, fan-out PLC splitter, module PLC splitter, cassette type PLC splitter or rack mount PLC splitter.
Cassette type: installed in 19 inch standard rack; in fiber branch home, installation device is provided in the optical fiber cable transfer box; branch home, installed customer specified equipment.
Features
Low insertion loss
High maximum power tolerance
Excellent splitting uniformity
Broadband Operating wavelength
Compact design
Low polarization independent
Applications
PON- FTTX Networks
CATV
Outside Plant Equipments
DWDM and CWDM systems
Optical Specifications
| Parameter | Unit | Specification (P Grade) | |||||
| Channel Number | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Operation Wavelength | nm | 1260～1650 | |||||
| Insertion Loss (Max.) | dB | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Uniformity (Max.) | dB | 0.5 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 | |||||
| Directivity | dB | ≥50 | |||||
| Operating Temperature | ℃ | -40～+85 | |||||
| Storage Temperature | ℃ | -40～+85 | |||||
| Parameter | Unit | Specification (P Grade) | |||||
| Channel Number | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Operation Wavelength | nm | 1260～1650 | |||||
| Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 | |||||
| Directivity | dB | ≥50 | |||||
| Operating Temperature | ℃ | -40～+85 | |||||
| Storage Temperature | ℃ | -40～+85 | |||||
Note: All the data above does not include connectors.
Ordering Information
|
PLC |
|
|
|
|
|
|
|
|
Port |
Fiber Type |
Input |
Output |
Pigtail Length |
Connector |
|
|
0102=1x2 |
1=G652D, 2=G657A |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
05-20=0.5-2.0m, 0=Adapter, X=Others |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
