FTTX Systems DWDM CWDM Fiber PLC Cassette SC APC 1×4 Plc Splitter
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1×4 PLC Splitter Cassette Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/carton box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Port: | 1*4 PLC Splitter | Package: | Cassette Type PLC Splitter |
|---|---|---|---|
| Connector: | SC/UPC | Wavelength: | 1260-1650nm |
| Application: | FTTH FTTB FTTX Network | Certification: | CE RoHS FCC |
| High Light: | FTTX Systems Fiber PLC Cassette,DWDM CWDM Fiber PLC Cassette,SC APC 1×4 Plc Splitter |
||
Product Description

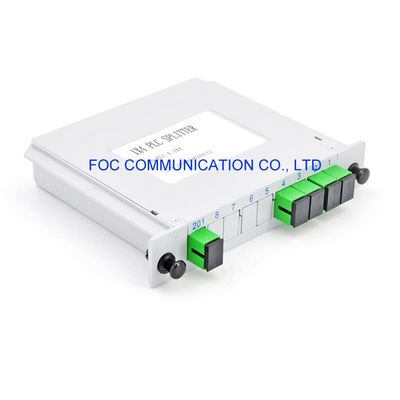

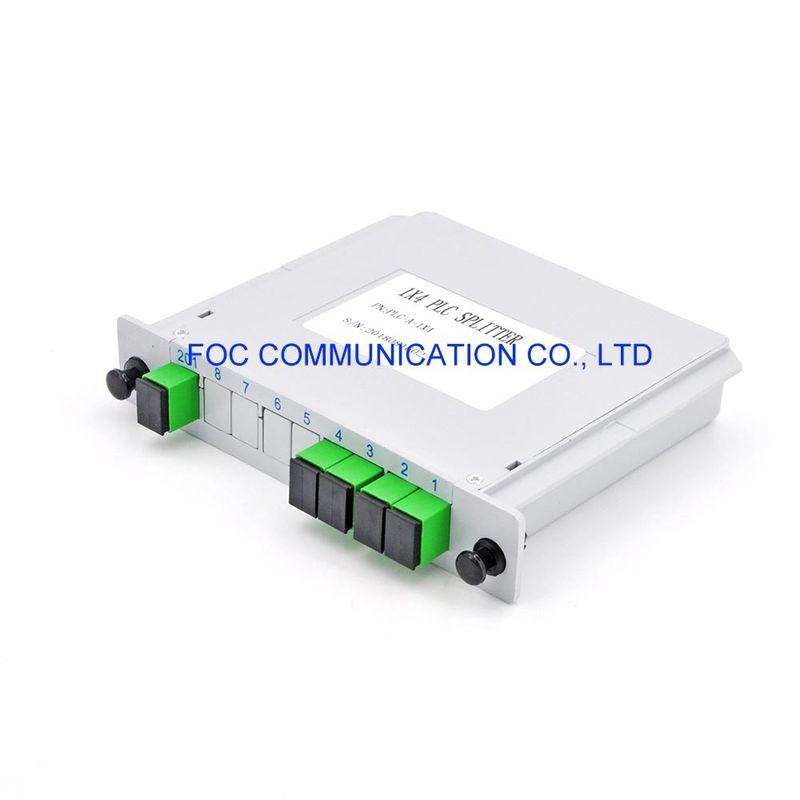

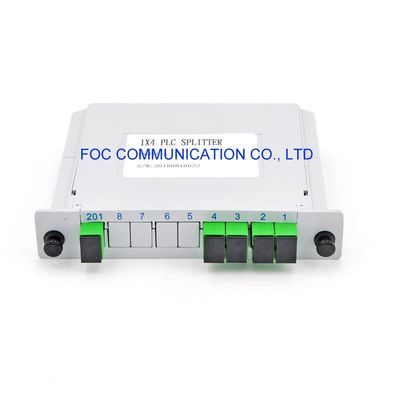

Fiber PLC Splitter Cassette Type SC / APC , 1×4 Standard Split Used To Distribute Of Combine Optical Signals
Splitter is an important component in FTTX and is responsible to distribute the signal from CO to numbers of premises. Planar Lightwave Circuit (PLC) splitter provides highly stable splitting performance superbly across temperature and wavelength in low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss. Different splitting ratio is available, 1X2, 1X4, 2X4, 1X8, 2X8, 1X16, 2X16, 1X32, 2X32 and 1x64.
Cassette type: installed in 19 inch standard rack; in fiber branch home, installation device is provided in the optical fiber cable transfer box; branch home, installed customer specified equipment.
Features
Passive Optical Networks
FTTX Systems
Telecommunications Networks
LAN Networks
Applications
PON- FTTX Networks
CATV
Outside Plant Equipments
DWDM and CWDM systems
Optical Specifications
| Parameter | Unit | Specification (P Grade) | |||||
| Channel Number | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Operation Wavelength | nm | 1260～1650 | |||||
| Insertion Loss (Max.) | dB | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Uniformity (Max.) | dB | 0.5 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 | |||||
| Directivity | dB | ≥50 | |||||
| Operating Temperature | ℃ | -40～+85 | |||||
| Storage Temperature | ℃ | -40～+85 | |||||
| Parameter | Unit | Specification (P Grade) | |||||
| Channel Number | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Operation Wavelength | nm | 1260～1650 | |||||
| Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 | |||||
| Directivity | dB | ≥50 | |||||
| Operating Temperature | ℃ | -40～+85 | |||||
| Storage Temperature | ℃ | -40～+85 | |||||
Note: All the data above does not include connectors.
Ordering Information
|
PLC |
|
|
|
|
|
|
|
|
Port |
Fiber Type |
Input |
Output |
Pigtail Length |
Connector |
|
|
0102=1x2 |
1=G652D, 2=G657A |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
05-20=0.5-2.0m, 0=Adapter, X=Others |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
