1260nm CATV SC UPC Fiber PLC Splitter 1×64 Ftth Plc Splitter
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1×64 PLC Splitter Cassette Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/carton box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Port: | 1*64 PLC Splitter | Package: | Cassette Type PLC Splitter |
|---|---|---|---|
| Connector: | SC/UPC | Wavelength: | 1260-1650nm |
| Type: | Single Mode,Distribution Box | Certification: | CE RoHS FCC |
| High Light: | SC UPC Fiber PLC Splitter,1260nm CATV Fiber PLC Splitter,1×64 Ftth Plc Splitter |
||
Product Description

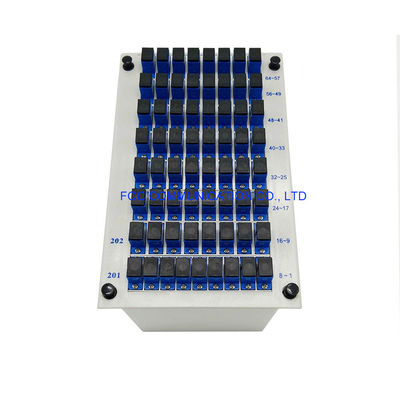

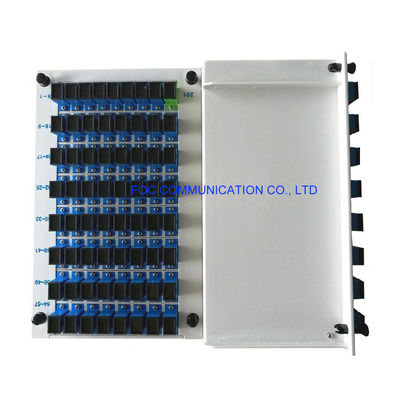

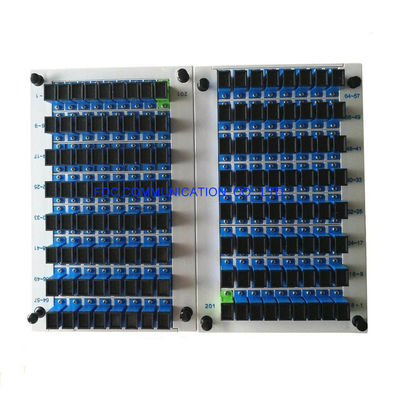

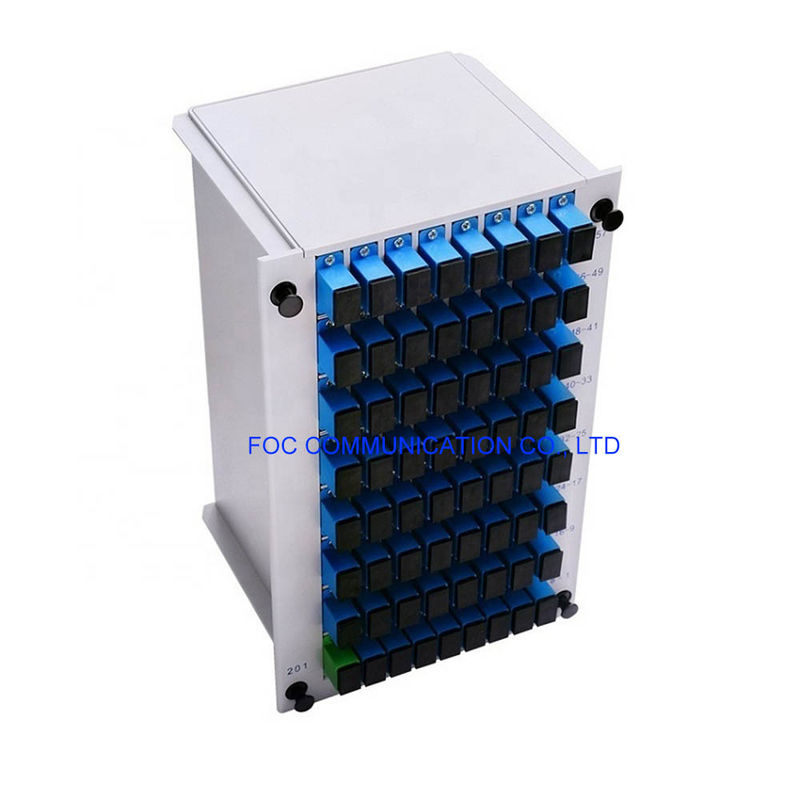

Optical Fiber PLC Splitter Cassette Box SC / UPC , 1×64 Multiple Optical Outputs Wide Wavelength
PLC Splitter is a single-mode PLC splitter that can divide a single optical input into multiple optical outputs. The splitter provides high-performing features such as such as Low Insertion Loss, Low PDL, High Return Loss, and Wide Wavelength Range from 1260nm to 1650nm. The unit can also withstand extreme temperatures, with the ability to support Wide Temperature Ranges from -40 to 85°C. FOCABLE'S PLC Splitter is fully compliant with GEPON technology, with high split ratio at 1:64. It is a highly cost-effective, scalable, and flexible networking solution for an optical network distribution. Users can easily minimize investment costs and easily deploy a network easily.
Cassette type: installed in 19 inch standard rack; in fiber branch home, installation device is provided in the optical fiber cable transfer box; branch home, installed customer specified equipment.
Features
1x4, 1x8, 1x16, 1x32 and 1x64 configurations available
2x4, 2x8, 2x16, 2x32 configurations available
Telcordia GR-1209 & GR-1221 qualified
Low insertion loss, PDL, Back Reflection
High uniformity
Compact package
Applications
PON- FTTX Networks
CATV
Outside Plant Equipments
DWDM and CWDM systems
Optical Specifications
| Parameter | Unit | Specification (P Grade) | |||||
| Channel Number | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Operation Wavelength | nm | 1260～1650 | |||||
| Insertion Loss (Max.) | dB | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Uniformity (Max.) | dB | 0.5 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 | |||||
| Directivity | dB | ≥50 | |||||
| Operating Temperature | ℃ | -40～+85 | |||||
| Storage Temperature | ℃ | -40～+85 | |||||
| Parameter | Unit | Specification (P Grade) | |||||
| Channel Number | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Operation Wavelength | nm | 1260～1650 | |||||
| Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 | |||||
| Directivity | dB | ≥50 | |||||
| Operating Temperature | ℃ | -40～+85 | |||||
| Storage Temperature | ℃ | -40～+85 | |||||
Note: All the data above does not include connectors.
Ordering Information
|
PLC |
|
|
|
|
|
|
|
|
Port |
Fiber Type |
Input |
Output |
Pigtail Length |
Connector |
|
|
0102=1x2 |
1=G652D, 2=G657A |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
05-20=0.5-2.0m, 0=Adapter, X=Others |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
