1650nm FTTX CATV CWDM Fiber PLC Splitter SC UPC 1×8 Low PDL

1650nm FTTX CATV CWDM Fiber PLC Splitter SC UPC 1×8 Low PDL

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO Certification and RoHS Compliant
Model Number: 1×8 PLC Splitter Cassette Type

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1pcs/carton box
Payment Terms: Western Union, T/T
Supply Ability: 90000PCS/MONTH
Get Best Price Contact Now

Detail Information

Port: 1*8 PLC Splitter Package: Cassette Type PLC Splitter
Connector: SC/UPC Wavelength: 1260-1650nm
Type: Splitter Application: FTTH FTTB FTTX Network
High Light:

1650nm FTTX Fiber PLC Splitter

,

CATV CWDM Fiber PLC Splitter

,

Low PDL 1×8 PLC Splitter

Product Description

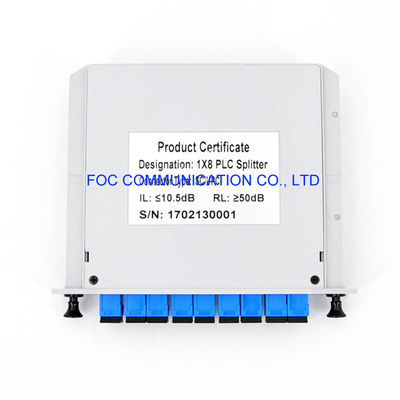

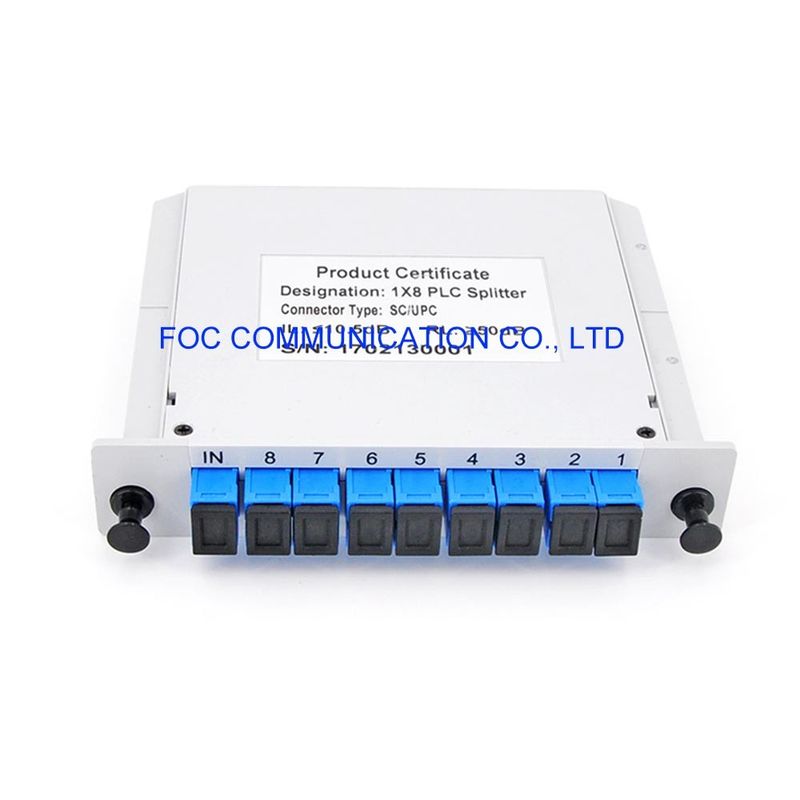

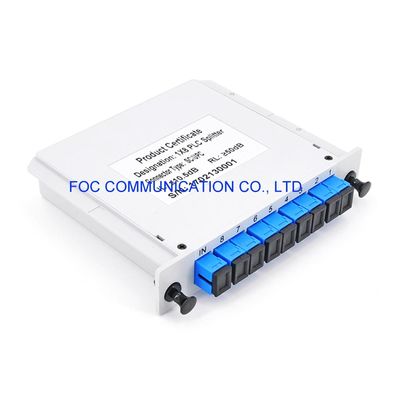

Fiber PLC Splitter Cassette Box SC / UPC , 1×8 Providing Stable Optical Characteristics



Planar Light wave Circuit (PLC) Splitter Modules allows system equipment manufacturers to reduce costs and shorten time to market.High quality, reliable components are assembled at a dedicated custom module manufacturing facility.


Cassette type: installed in 19 inch standard rack; in fiber branch home, installation device is provided in the optical fiber cable transfer box; branch home, installed customer specified equipment.



Features

1x4, 1x8, 1x16, 1x32 and 1x64 configurations available

2x4, 2x8, 2x16, 2x32 configurations available

Telcordia GR-1209 & GR-1221 qualified

Low insertion loss, PDL, Back Reflection

High uniformity

Compact package



Applications

PON- FTTX Networks

CATV

Outside Plant Equipments

DWDM and CWDM systems


Optical Specifications

Parameter Unit Specification (P Grade)
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Operation Wavelength nm 1260~1650
Insertion Loss (Max.) dB 4.3 7.4 10.7 13.9 17.2 21.5
Uniformity (Max.) dB 0.5 0.8 1.0 1.4 1.6 2.0
Polarization Dependent Loss dB 0.2 0.3 0.3 0.3 0.3 0.5
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature -40~+85
Storage Temperature -40~+85



Parameter Unit Specification (P Grade)
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Operation Wavelength nm 1260~1650
Insertion Loss (Max.) dB 4.3 7.6 11.0 14.8 17.9 21.5
Uniformity (Max.) dB 0.8 1.0 1.2 1.5 1.8 2.0
Polarization Dependent Loss dB 0.2 0.3 0.3 0.3 0.3 0.5
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature -40~+85
Storage Temperature -40~+85

Note: All the data above does not include connectors.

1650nm FTTX CATV CWDM Fiber PLC Splitter SC UPC 1×8 Low PDL 0

Ordering Information

PLC















Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64

1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5-2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others
