G.657A SC UPC 1650nm 1x32 Fiber Optic Splitter Telecom ABS Module
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1*32 PLC Splitter ABS Module Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/carton box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Wavelength: | 1260-1650nm | Fiber Type: | G.652D, G.657A |
|---|---|---|---|
| Connector: | FC, SC, LC | Input Tube Diameter: | 0.9mm, 2.0mm, 3.0mm |
| Channel: | 1*2, 1*4, 1*8, 1*16, 1*32, 1*64 | Output Tube Diameter: | 0.9mm, 2.0mm, 3.0mm |
| High Light: | 1650nm 1x32 Fiber Optic Splitter,G.657A ABS Fiber Optic Splitter,SC UPC 1x32 PLC Splitter |
||
Product Description

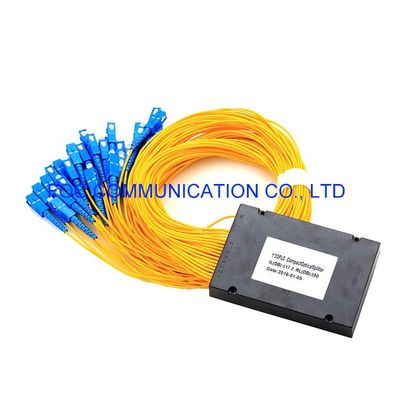

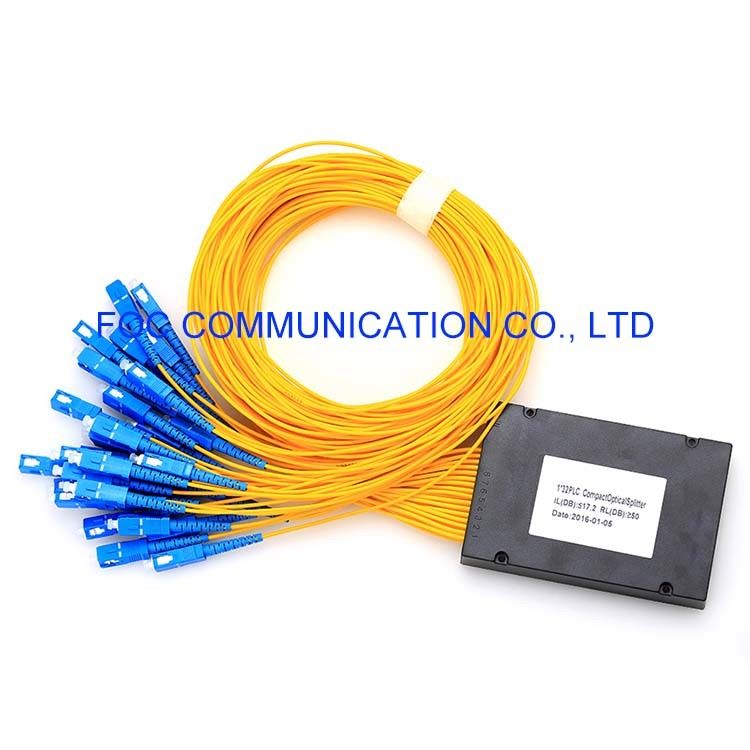

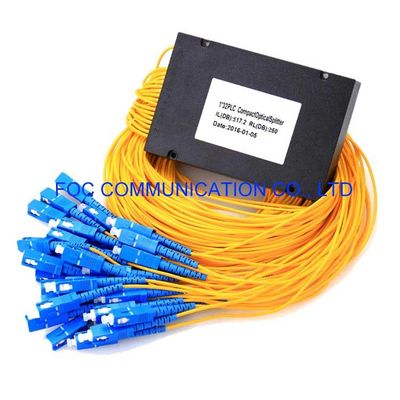

SC / UPC Fiber Optic Splitter Telecom ABS Module Type 1 x 32 Low PDL
PLC optical splitter made by the semiconductor process. Optical wave guide needle is located at the top of the chip, in the chip to achieve shunt, PLC optical splitter can be divided into cassette, chip, rack, etc type.
Features
High Polarization Extinction Ratio & Excellent Uniformity.
Can be continuously covered with different fibers
Good uniformity and low insertion loss
1*2, 1*4, .... 1*128 types optional
Low additional loss
Full-core structure
Can be reused
Fiber types optional
Applications
Telecommunication network
Fiber communication system
Local area networks (LAN)
Fiber to the home (FTTH)
Cable television (CATV)
Test equipment
Fiber Sensor
Fiber CATV
Optical Specifications
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.6 |
11.0 |
14.8 |
17.9 |
21.5 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
Note: All the data above does not include connectors.
Ordering Information
|
PLC |
|
|
|
|
|
|
|
|
Port |
Fiber Type |
Input |
Output |
Pigtail Length |
Connector |
|
|
0102=1x2 |
1=G652D, 2=G657A |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
05-20=0.5--2.0m, 0=Adapter, X=Others |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We can produce many serials of PLC splitters including
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare Fiber PLC Splitters
Blockless Fiber Optical PLC Splitter
ABS box Fiber Optic PLC Splitter
LGX Box Optical PLC Splitters
Cassette Box PLC Splitter
Pallet Type Optical Fiber PLC Splitter
Rack Mount PLC Splitter for PON application
Wall Mount PLC Splitters
