Telecom Networks Fiber PLC Splitter LSZH 1x8 SC APC Connector Low PDL

Telecom Networks Fiber PLC Splitter LSZH 1x8 SC APC Connector Low PDL

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO Certification and RoHS Compliant
Model Number: 1*8 Fiber Optic Splitter

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1pcs/blister box
Payment Terms: Western Union, T/T
Supply Ability: 90000PCS/MONTH
Get Best Price Contact Now

Detail Information
Fiber Type: G.657A Cable Type: LSZH Jacket
Fiber Tube: 0.9mm Tube Connector Type: SC/APC
Port: 1*8 Operating Wavelength: 1260-1650nm
High Light:

Telecom Networks Fiber PLC Splitter

,

LSZH 1x8 Fiber PLC Splitter

,

Low PDL Optical Plc Splitter

Product Description

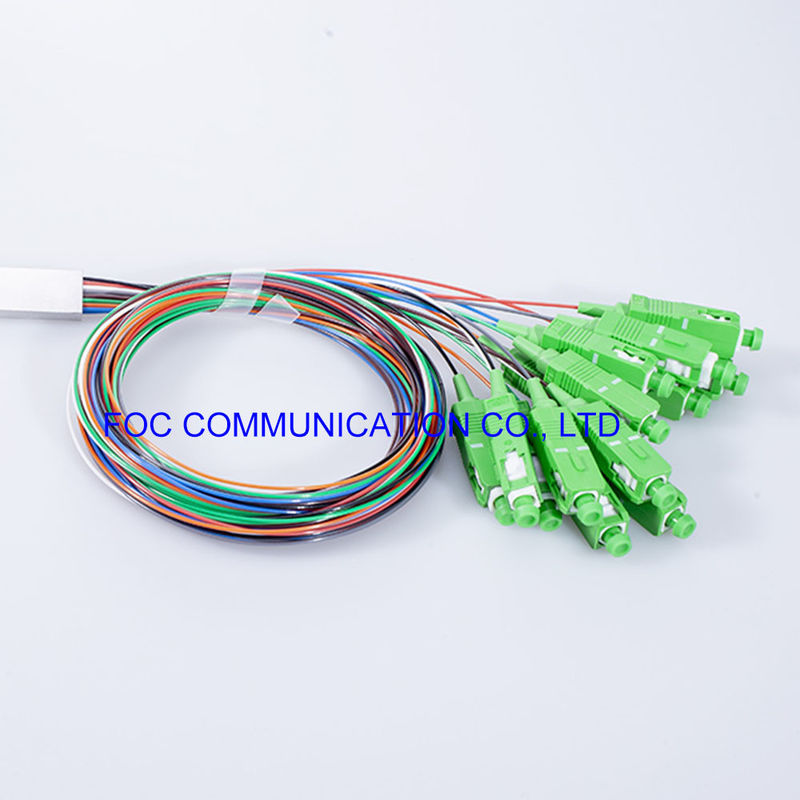

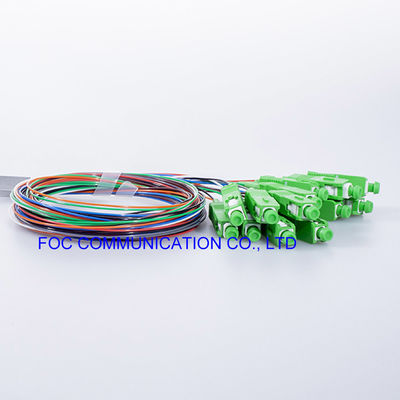

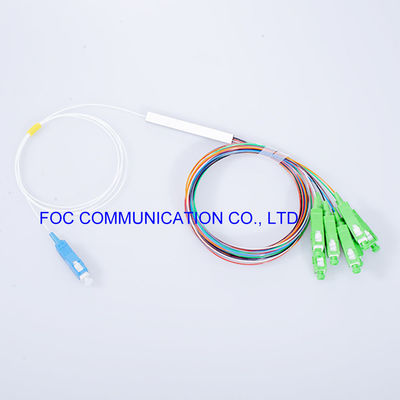

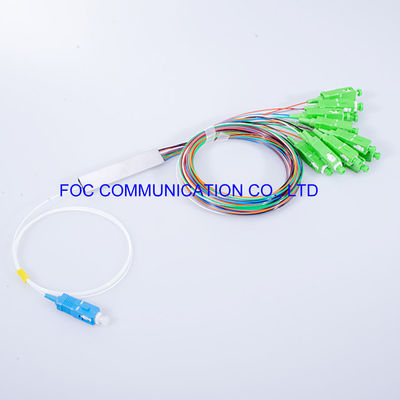

Telecom Networks Fiber PLC Splitter 1 x 8 with SC / APC Connector Mini Tube Type


FOC COMMUNICATION CO., LTD provides 1*N and 2*N fiber optic splitters. And these PLC splitters can be made as per customer request.


Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and this passive splitter 1:8 is widely used in FTTX PON to realize optical signal power management.



Features

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: 1260-1650nm

Wide Operating Temperature: -40°C - 85°C

High Reliability and Stability



Applications

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Local Areal Networks (LAN)
Fiber Communication Systems


Performance Specifications

Parameters
1×2
1×4
1×8
1×16
1×32
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A or customer specified
Insertion Loss (dB) (P/S Grade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
Loss Uniformit(dB)
0.6
0.6
0.8
1.2
1.5
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
Return Loss(dB)(P/S Grade)
55
55
55
55
55
Directivity(dB)
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.5
0.5
0.5
0.8
0.8
Temperature Stability (-40~85℃)(dB)
0.5
0.5
0.5
0.8
0.8
Operating Temperature(℃)
-40~+85
Storage Temperature(℃)
-40~+85
Device Dimension(mm)
60×7×4
60×7×4
60×7×4
60×12×4
80×20×6



We can produce many serials of PLC splitters including:
1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x4, 2x8, 2x16, 2x32, 2x64 with following package
Bare Fiber Optic Coupler
Blockless Fiber Optical Splitter
ABS box Fiber Optic Splitter
Pallet Type Optical Fiber Splitter
Rack Mount Optical Fiber Coupler
Wall Mount Fiber Optic Coupler

Ribbon Fan Out Fiber PLC Splitter 1 * 32 for CATV Systems, Low Insertion Loss        Ribbon Fan Out Fiber PLC Splitter 1 * 32 for CATV Systems, Low Insertion Loss
