1×8 0.9mm Tube PLC Optical Splitter SC UPC Connectors G.657A For FTTX
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1*8 PLC Splitter Mini Tube Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/carton box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Fiber Type: | G.657A | Cable Material: | LSZH |
|---|---|---|---|
| Tube: | 0.9mm | Connector Type: | SC/UPC |
| Port: | 1*8 | Pigtail Length: | 0.5M, 1.0M, 1.5M |
| High Light: | 0.9mm Tube PLC Optical Splitter,FTTX 1×8 PLC Optical Splitter,G.657A Fiber Optic Audio Splitter |
||
Product Description

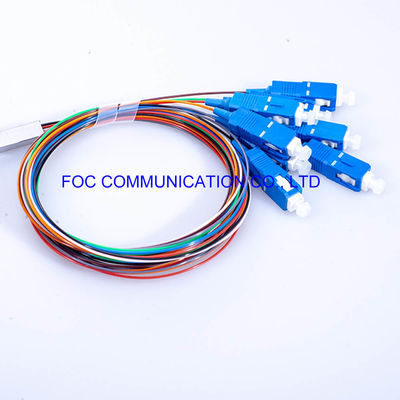

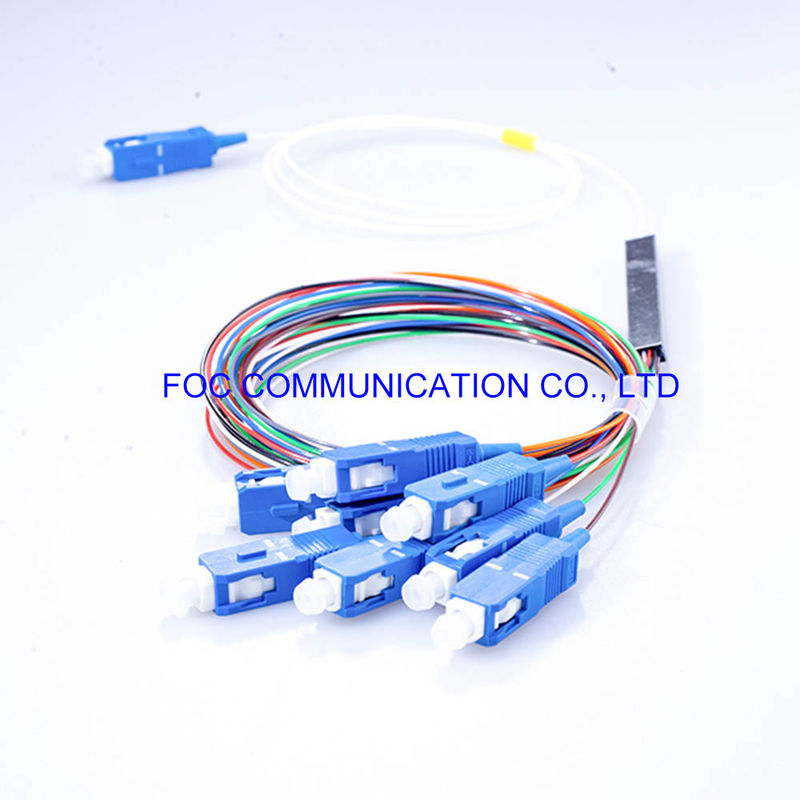

Optical Fiber PLC Splitter Mini Tube 1 ×8 with SC/UPC Connectors G.657A for FTTX
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features
Low PDL
Low Insertion loss
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
Local Area Networks (LAN)
CATV Systems
Optical Signal Distribution
Test Equipments
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Optical Specifications
Parameter | Unit | Specification (P Grade) | |||||
Channel Number |
| 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
Operation Wavelength | nm | 1260～1650 | |||||
Insertion Loss (Max.) | dB | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
Uniformity (Max.) | dB | 0.5 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Return Loss | dB | ≥50 | |||||
Directivity | dB | ≥50 | |||||
Operating Temperature | ℃ | -40～+85 | |||||
Storage Temperature | ℃ | -40～+85 | |||||
Parameter | Unit | Specification (P Grade) | |||||
Channel Number |
| 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
Operation Wavelength | nm | 1260～1650 | |||||
Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Return Loss | dB | ≥50 | |||||
Directivity | dB | ≥50 | |||||
Operating Temperature | ℃ | -40～+85 | |||||
Storage Temperature | ℃ | -40～+85 | |||||
Note: All the data above does not include connectors.
We can produce many serials of PLC splitters including
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare Fiber PLC Splitters
Blockless Fiber Optical PLC Splitter
ABS box Fiber Optic PLC Splitter
LGX Box Optical PLC Splitters
Cassette Box PLC Splitter
Pallet Type Optical Fiber PLC Splitter
Rack Mount PLC Splitter for PON application
Wall Mount PLC Splitters
We can supply the full sets of FTTX solutions products. Any enquiry, please don't hesitate to contact us.
