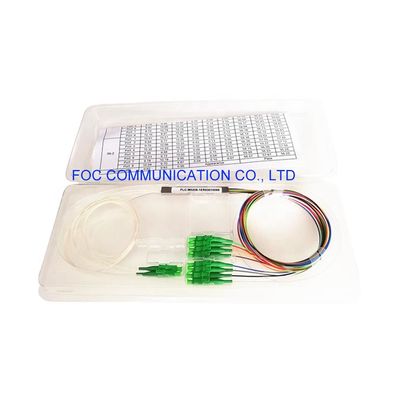

FTTX 1×8 Fiber PLC Splitter 1650nm CATV With LC APC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | 1×8 Fiber PLC Splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/blister box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Fiber Type: | G.657A With 0.9mm Loose Tube | Type: | 1×8 Mini Tube Type Singlemode |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Connector: | LC/APC |
| Wavelength: | 1260-1650nm | ||
| High Light: | FTTX 1×8 Fiber PLC Splitter,LC APC Fiber PLC Splitter,1650nm CATV Optical Plc Splitter |
||
Product Description

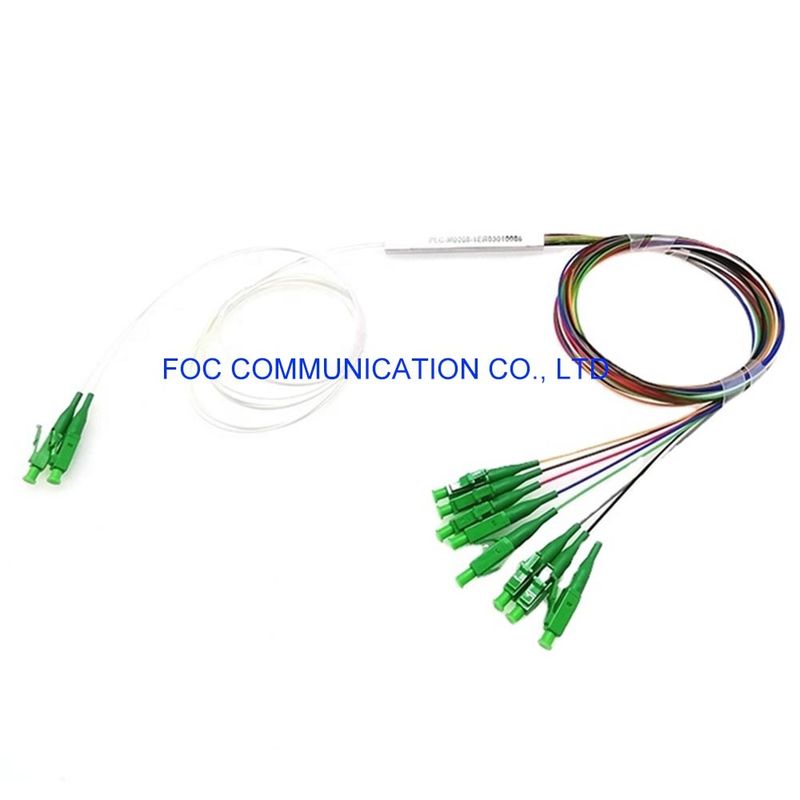

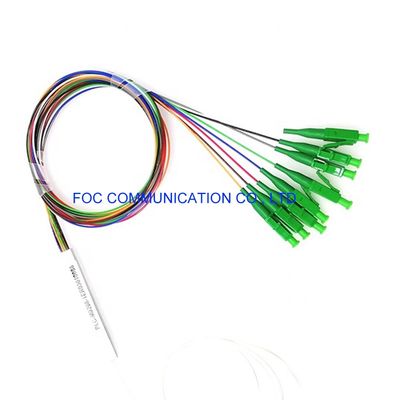

Fiber Optical PLC Splitter 1×8 Mini Tube Type With LC/APC Connector for FTTX Network
PLC Splitter, is a kind of planar waveguide integrated optical device, it can be used 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths.
Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
Features
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability Telcordia GR-1221 and GR-1209
Application
Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
Specifications
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
|
Type |
2x2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
|
Operating Wavelength(nm) |
1260~1650 |
||||||
|
Insertion loss (dB) |
Typical value |
4.2 |
7.5 |
10.8 |
14.0 |
17.4 |
20.6 |
|
Maximum value |
4.5 |
7.8 |
11.0 |
14.2 |
17.6 |
20.8 |
|
|
Loss uniformity (dB) |
Maximum value |
0.6 |
0.8 |
1.3 |
1.5 |
2.0 |
2.0 |
|
Polarization dependent loss (dB) |
Maximum value |
0.3 |
|||||
|
Wavelength dependent loss (dB) |
Maximum value |
1.0 |
|||||
|
Return loss (dB) |
Minimum value |
≥50 |
|||||
|
Directivity (dB) |
Minimum value |
≥55 |
|||||
|
Operating temperature (°C) |
-20 to 75 |
||||||
|
Storage temperature (°C) |
-40 to 85 |
||||||
|
Optical fiber type |
SMF-28e G657A |
||||||
|
Optical fiber length (m) |
1.0 customer require |
||||||
1. All measurement indoor temperature,
2. Specification exclude connector loss, if with connector, PC,UPC will be higher 0.2db,APC 0.3dB.
3. Exclude connector
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
