Mini SC Fiber Optic Patch Cord 12 Core Huawei Mini SC Simplex Singlemode G657A
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Mini SC Patch Cord 1 Core |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | G.652D, G.657A, G.655, SM Or MM | Cable Material: | PVC, LSZH, OFNP, OFNR, TPU |
|---|---|---|---|
| Cable Diameter: | 2.0mm, 3.0mm, 4.6mm | Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC, MPO |
| Cores: | 12 Core | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| Armored: | Non-armored, Armored | Quality Control: | 100% Test Before Shipping |
| High Light: | simplex fiber patch cord,fiber optic jumper |
||
Product Description

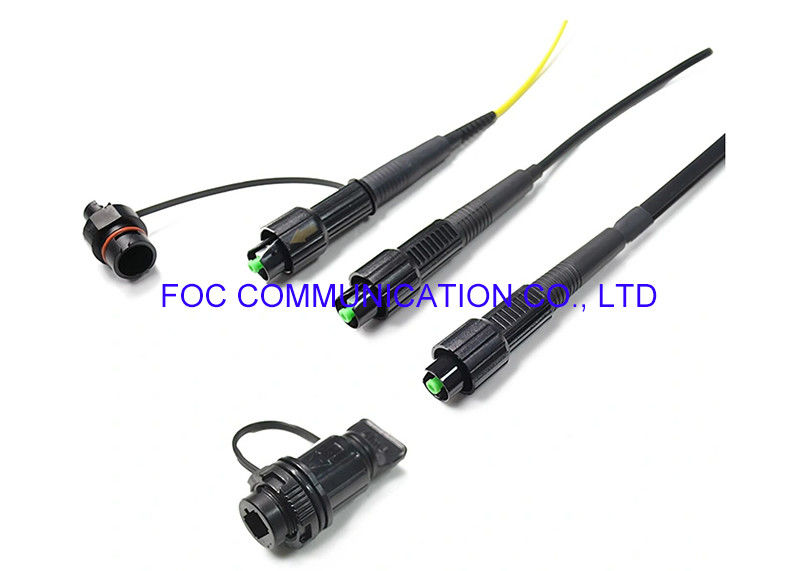

Huawei Mini SC Simplex Singlemode G657A Mini SC Connector Patch Cord
Huawei mini SC connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The Huawei mini SC connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications
Parameters:
-
Provides superior weather resistance for FTTA and other outdoor applications.
-
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
-
Suitable for FTTA and outdoor temperature extremes
-
Ensures functionality in harsh weather environments
-
Can be installs without special tooling
-
Threaded style coupling
-
Provides bend protection for installation and long term use
Applications:
- WiMAX and LTE Base Stations
- Remote radio heads (RRH)
- Industrial outdoor applications
- Aerospace & defense
-
Fiber-to-the-Antenna (FTTA) Latest
-
Next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.)
-
Access Network
-
Telecom/CATV System
-
HUAWEI CPRI
Technical Data
| Design and Test Criteria | Telcordia GR-3120 & GR-326 |
| Connector Type | SC, LC |
| Operation Temperature | -40°C to 70°C |
| Insertion loss | <0.25dB |
| Reflection loss | < - 50dB (PC); <-65dB (APC) |
| RoHS | Free of Hazardous Substance |
