Full AXS To LC Duplex Fiber Patch Cord Antenna Cable Assemblies SGS Certificated
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | FULLAXS Patch Cord LC 2 core |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | G.652D, G.657A, G.655, SM Or MM | Cable Material: | PVC, LSZH, OFNP, OFNR, TPU |
|---|---|---|---|
| Cable Diameter: | 0.9mm | Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC, MPO |
| Cores: | 12 Core | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| Armored: | Non-armored, Armored | Quality Control: | 100% Test Before Shipping |
| High Light: | simplex fiber patch cord,fiber optic jumper |
||
Product Description

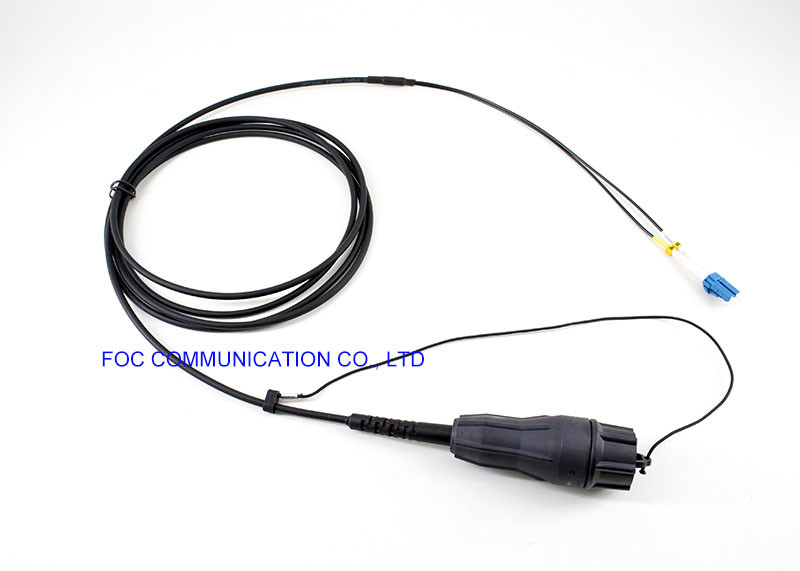

FullAXS to LC duplex Jumper Fiber to the Antenna Cable Assemblies
With this new line of products, users can also easily removed, and through the open the entire remote radio box, its contents exposed in poor weather conditions bulkhead hole replace transponder. For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The FullAXS connector can be designed for either the application single mode or multimode optical fiber transmission.
Next generation WIMAX and Long Term Evolution (LTE) Fiber To The Antenna (FTTA) connectivity designs require rugged cable assemblies for outdoor use. For direct connection these cable assemblies need to plug directly into the optical transceivers though a bulkhead construction. For this specific application the connector design will need to accommodate for a large tolerance in Z-direction. Furthermore the connector shell needs to allow for easy one handed mating.
The FullAXS connector system meets this requirement by allowing for a large Z-direction tolerance while also offering the benefit of one-hand installation of the connector shell. With this new product offering, users can also conveniently remove and replace transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box and expose its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers.
FOC COMMUNICATION CO., LTD offers Fullaxs/LC-LC patch cords, Fullaxs/LC-SC patch cord, Fullaxs/LC-MPO patch cords as per customer requests, length from 1Meter to 500Meters.
Features
■ Open bulkhead for easy access to SFP
■ Positive feedback to operator when fully mated
■ One-hand mating
■ Duplex LC interface
■ Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
■ Robust bayonet locking for easy, fast, and secure mating
■ Multimode and singlemode
■ Water proof, dust proof and corrosion resistant
■ Expansion to RJ45, etc
■ Plug has tolerance free design, fully free floating in Z-axis
■ No Cable buckling at any time during or after installation
■ Cost effective glass-filled polymer or metal die casted bulkhead
■ Field installable version available
Technical Data
| Connector | End A | Fullaxs (duplex LC) | |||
| End B | Fullaxs (duplex LC), or SC, MPO, MTP | ||||
| Fiber Core | 2 | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 0.2 | 0.3 | |||
| Return Loss(Min.dB) | 55 | 60 | 35 | ||
| Mating times | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
