850nm SFP Optical Transceiver 10Gbps Multimode 300M For Fiber Network
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | 10G SFP Transceiver MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | 1PCS/BOX |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000PCS/MONTH |
|
Detail Information |
|||
| Type: | 10G SFP Transceiver MM | Distance: | 300M Transmission With Multimode Fiber |
|---|---|---|---|
| Fiber: | Multi Mode Fiber | Connector: | Industry-standard LC Optical Connector |
| High Light: | fiber optic transceiver,sfp optical transceiver |
||
Product Description

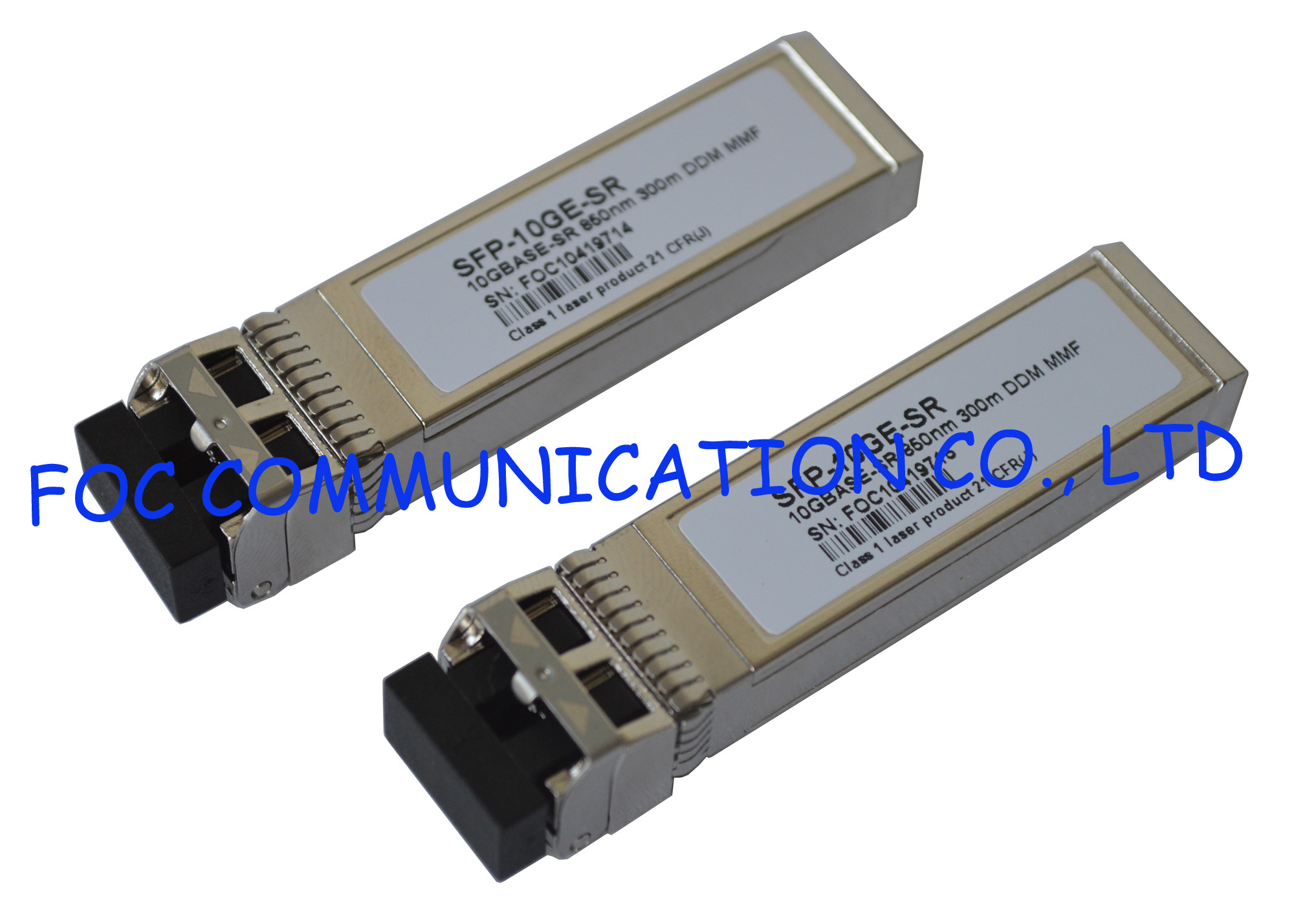

850nm SFP Optical Transceiver 10Gbps Multimode 300M For Fiber Network
10Gbps 850nm 300m SFP+ Transceiver is a 10Gbps enhanced small form factor pluggable SFP+ transceiver compatible with 10GBASE-SR/SW. It is suitable for multi-mode fiber (MMF) communications in 10Gbps Ethernet.
Our transceivers are Class 1 Laser Products comply with FDA regulations. Meet Class 1 eye safety requirements of EN 60825 and the electrical safety requirements of EN 60950.
SFP transceiver multimode are available with a variety of transmitter and receiver types, allowing users to select the appropriate transceiver for each link to provide the required optical reach over the available optical fiber type (e.g. multi-mode fiber or single-mode fiber).
Features
Up to 10Gbps data links
300m with 50/125µm 2000MHz MMF
850nm VCSEL laser
Duplex LC Connector
Hot-pluggable SFP+ footprint
Single 3. 3V power supply
Operating temperature: -5℃ to 85℃
RoHS
Digital Diagnostic Monitor(DDM)
Power Consumption < 0.8W
Applications
10GBase-SR/SW 10G Ethernet
SONET OC-192 / SDH
10G Fibre Channel
Ordering Information
|
Part No. |
Data Rate |
DDM |
Wave |
Fiber Type |
Dist. |
Temp. |
Optical Interface |
|
FOCSFPP8510GSR |
10Gbps |
yes |
850nm |
MMF |
300m |
-5~85℃ |
LC |
We offer label OEM design and print.
