Ethernet XFP Transceiver Data Rate 10G Full Duplex LC connector

China Ethernet XFP Transceiver Data Rate 10G Full Duplex LC connector supplier

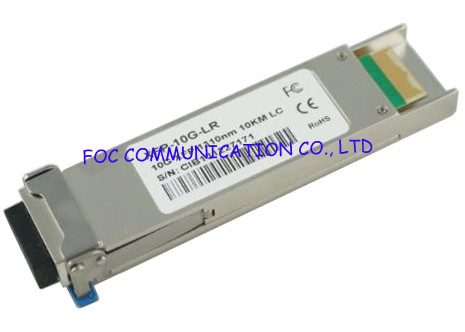

Large Image :  Ethernet XFP Transceiver Data Rate 10G Full Duplex LC connector

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: XFP Transceiver

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Contact Now
Detailed Product Description
Type: XFP Transceiver Distance: Up To 80Km Transmission With Single-mode Fiber
Standard: Data Rate 10G Connector: Full Duplex LC Connector

Ethernet XFP Transceiver Data Rate 10G Full Duplex LC connector

This XFP transceiver is a high performance, cost effective module for serial optical data communications applications specified for signal rates of 11.2Gbps,with transmission distance from 300m up to 80km.This fiber optic transceiver typically operate at optical wavelengths of 850 nm, 1310 nm or 1550 nm. And main applications include 10 Gigabit Ethernet, 10 Gb/s Fibre Channel, Synchronous optical networking (SONET),Data Center and other telecommunication transmission systems.It is compliant with the 10G Small From-Factor Pluggable (XFP) Multi-source Agreement(MSA).



The XFP is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA). It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable.



General information

Supports 9.95Gb/s to 10.5Gb/s bit rates
Power dissipation < 2W
Full Duplex LC connector
Maximum link length of 80km
Commercial temperature rang -40 ℃ to 85 ℃(optional)
No Reference Clock required
Standard bail release mechanism
RoHS Compliant Products Available



Features
Maximum link length of 300m (50um,MMF,2000MHz.Km)
850nm VCSEL laser and PIN receiver
XFP MSA Rev 4.5 Compliant
No reference clock required
+1.8V,+3.3V Supply Voltage
Low Power Dissipation 1.5W Maximum
XFI and lineside loopback Mode Supported
0ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature,
Supply Voltages, laser bias current, transmit optical power, and receive optical   power
RoHS compliant


Applications
10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fiber Channel
Other optical links



Specifications

Part No.

Package

(bps/Hz)

Data Rate

Tx(nm)

Pout(dBm)

Rx

Sensitivity(dBm)

Temp °C

Reach

Other Option

FOCABLE-XFP-SR

XFP

10G

850nm VCSEL

-8.2~-1

PIN

≤-9.9

-40°C-85°C

220m

DDM RoHS

FOCABLE-XFP-LR

XFP

10G

1310nm DML

-6~-1

PIN

≤-14.4

-40°C-85°C

10Km

DDM RoHS

FOCABLE-XFP-ER

XFP

10G

1550nm EML

-1~2

APD

≤-16

-40°C-85°C

40Km

DDM RoHS

FOCABLE-XFP-ZR

XFP

10G

1550nm EML

0~4

APD

≤-24

-40°C-85°C

80Km

DDM RoHS
