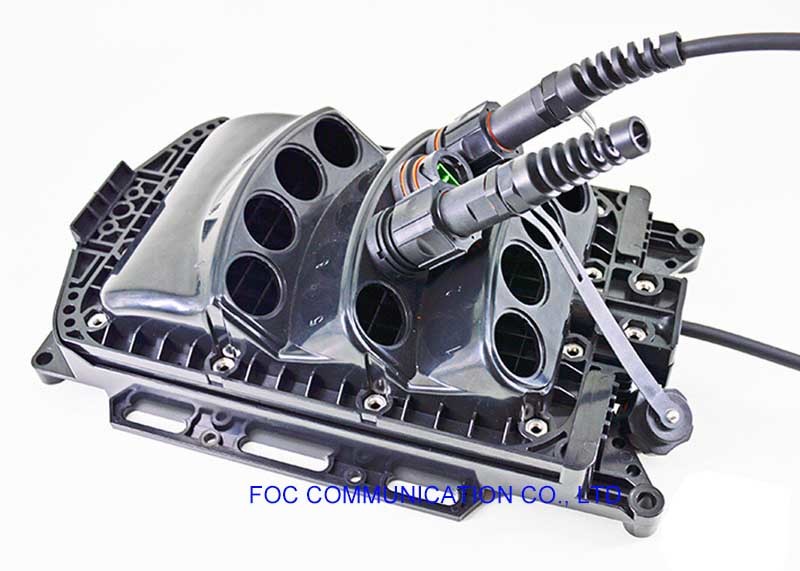

IP68 Waterproof Fiber Optic Termination Box For ODVA SC DLC MPO Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Waterproof box for ODVA connector |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/Carton |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC, MPO | Armored: | Non-armored, Armored |
|---|---|---|---|
| Cable Material: | PVC, LSZH, OFNP, OFNR, TPU | Fiber Type: | G.652D, G.657A, G.655, SM Or MM |
| Quality Control: | 100% Test Before Shipping | Cable Diameter: | 2.0mm, 0.9mm |
| High Light: | cable termination box,ftth termination box |
||
Product Description
IP68 Waterproof Box for ODVA SC DLC MPO Connector, CPRI cable, FTTA Use
IP68 waterproof box is designed to exceed the requirements of ODVA, the enclosure meet IP68 environmental sealing ratings and are the ideal choice for a low cost/easy to use solution in Industrial, Fiber to the Antenna (FTTa), or any other harsh environmental applications.
IP 68 Waterproof box, multiport fiber terminal, acess fiber terminals. Multiport terminal solutions for remote radio optical connectivity inn fiber-to-the-antenna (FTTA) applications. The fiber optic cable assemblies create the fiber optic link between the remote radio unit and a tower-top consolidation terminal.
Features
- The connectors meet IP68 environmental sealing ratings and are the ideal choice for a low cost.
- It is easy to use solution in Industrial, Fiber to the Antenna (FTTA), or any other harsh environmental applications.
- This outdoor waterproof connector attaches to adapter on panel of RRH.
- The common LC, SC, MPO connector inside allows easier testing and cleaning.
- There are two types of connector plugs available: threaded and easy-connect bayonet.
Applications
- FTTX /FTTA Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Specifications
| Ingress protection: | IP67 |
| Cable Strength Member | Armoured or Non-armoured |
| Round Cable OD | 5.0mm to 14mm |
| Cable Jacket Material | LSZH, PE or TPU |
| Cable Crush Resistance | 200N/cm long term |
| Fire protection rating | UL94-V0 |
| Number of PLC | 1 to 2 pcs |
| Number of Fusion protection sleeve | 1 to 24 pcs |
| Bending Radius | 20D |
| Cable type | Hybrid or non-hybrid |
| Tensile Strength | 1200N long term |
