Fiber Splitter Termination Box 12 Core Loaded With 1x8 PLC Blockless
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | OTB-0212 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Packaging Details: | 1PCS/BOX |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000PCS/MONTH |
|
Detail Information |
|||
| Mount Type: | Wall Mount, Pole Mount | Material: | ABS Plastic |
|---|---|---|---|
| Port: | 12, 24, 32, 48, 72, 96 Port | Connector: | SC, FC, LC, ST, E2000 |
| High Light: | ftth termination box,network termination box |
||
Product Description

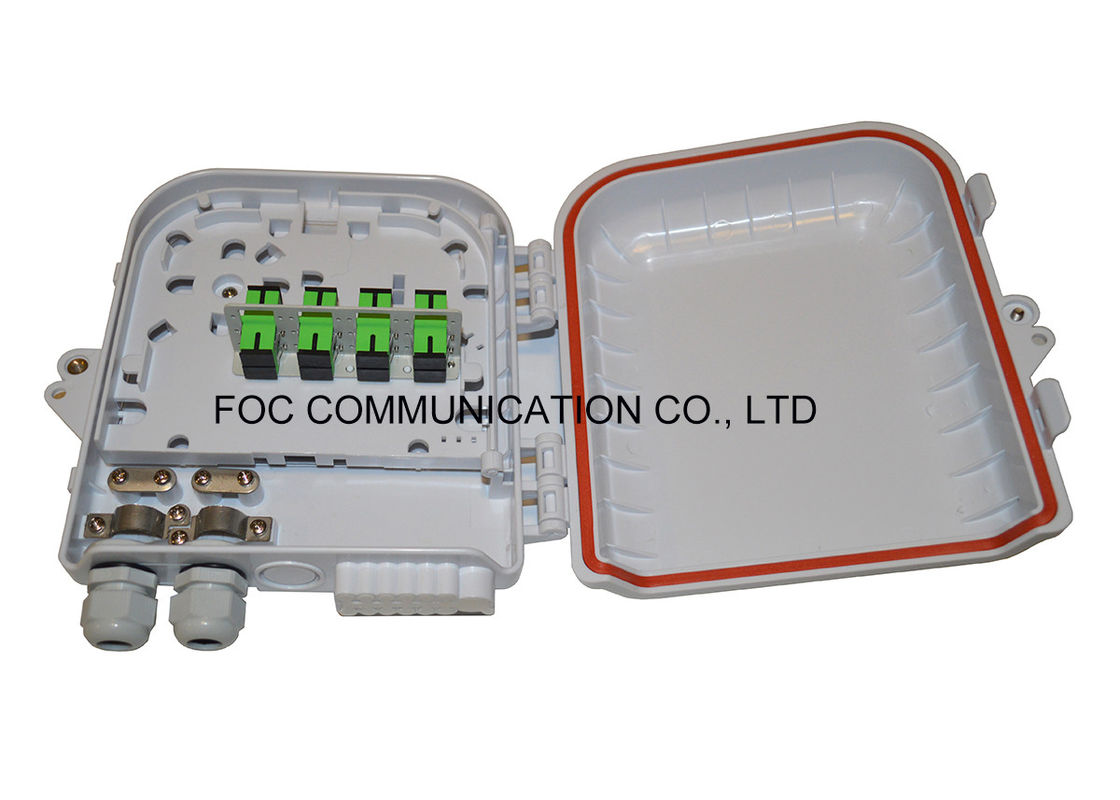

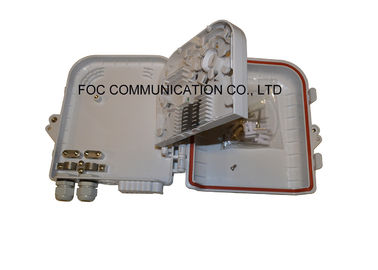

Fiber Splitter Termination Box 12 Core Loaded With 1x8 PLC Blockless
Optical Termination Box (OTB) is mounted to inside and outside wall of building or pole to distribute and connect optical cable for distribution of subscriber.
OTB is designed with controls that maintain the fiber bending radius throughout the unit on the segregated customer and provider sides. For convenient cable management, they provide termination, splicing and storage functions for fiber optic cable systems.
Note: This box does not come with any adapters, pigtails and fiber splitters. If you need them, we can install them for you with few charges.
Features
Can accommodate 1x2, 1x4,1x8 PLC splitter.
Engineered fiber routing protects bending radius throughout the unit to ensure signal integrity
Enough work space for efficient splicing or adaptor patching
Simply and clearly arranged incoming and outgoing cable management
Convenient access for installation, maintenance and subsequent termination
Higher fiber count capacity box is available upon request
Application
CATV Networks
Data communications Networks
Widely used in FTTH access network.
Local Area Networks, Wide Area Networks
Telecommunication Networks
Specifications
Working Temperature: -40℃～+85℃
Insertion Loss: ≤0.2dB
Return Loss UPC: ≥50dB
Return Loss APC: ≥60dB
Durability: ≤0.3dB(1000 matings)
| Description | OTB-0212 |
| Dimensions(W×D×H) | 206.8x230.8x66.5mm |
| Splice capacity | Max. 12 cores |
| Cable port | In: 2-port/Out:12-port |
| Cable dia. | For FTTH drop cable |
| Color | Ivory/White |
| Main body material | Plastic(ABS) |
| Installation type | Wall mounting and pole mounting |
