850nm SFP Optical Transceiver 10Gbps Multimode 300M For Fiber Network

China 850nm SFP Optical Transceiver 10Gbps Multimode 300M For Fiber Network supplier

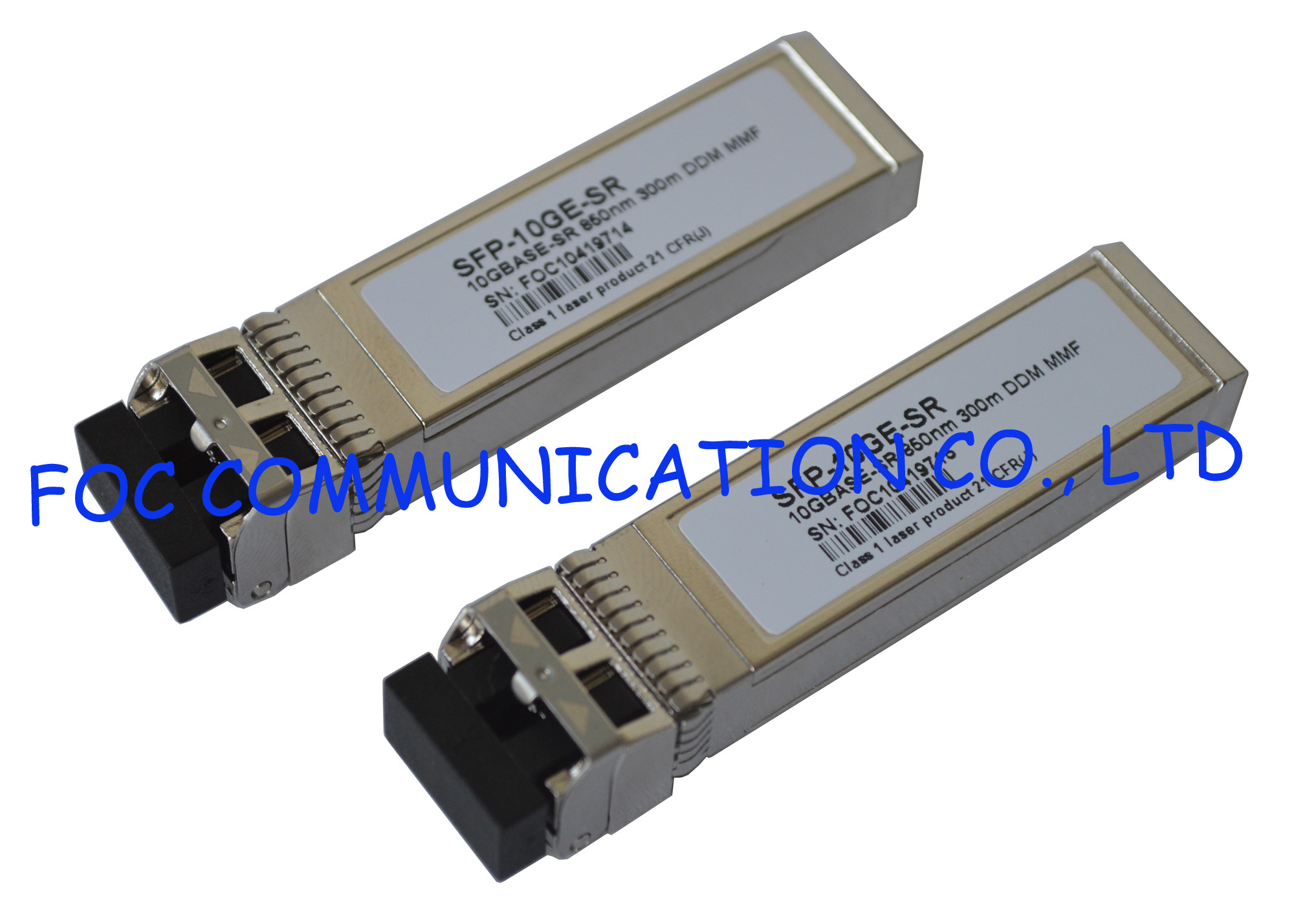

Large Image :  850nm SFP Optical Transceiver 10Gbps Multimode 300M For Fiber Network

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: 10G SFP Transceiver MM

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Contact Now
Detailed Product Description
Type: 10G SFP Transceiver MM Distance: 300M Transmission With Multimode Fiber
Fiber: Multi Mode Fiber Connector: Industry-standard LC Optical Connector

850nm SFP Optical Transceiver 10Gbps Multimode 300M For Fiber Network

10Gbps 850nm 300m SFP+ Transceiver is a 10Gbps enhanced small form factor pluggable SFP+ transceiver compatible with 10GBASE-SR/SW. It is suitable for multi-mode fiber (MMF) communications in 10Gbps Ethernet.



Our transceivers are Class 1 Laser Products comply with FDA regulations. Meet Class 1 eye safety requirements of EN 60825 and the electrical safety requirements of EN 60950.



SFP transceiver multimode are available with a variety of transmitter and receiver types, allowing users to select the appropriate transceiver for each link to provide the required optical reach over the available optical fiber type (e.g. multi-mode fiber or single-mode fiber).



Features
Up to 10Gbps data links
300m with 50/125µm 2000MHz MMF
850nm VCSEL laser
Duplex LC Connector
Hot-pluggable SFP+ footprint
Single 3. 3V power supply
Operating temperature: -5℃ to 85℃
RoHS
Digital Diagnostic Monitor(DDM)
Power Consumption < 0.8W



Applications
10GBase-SR/SW 10G Ethernet

SONET OC-192 / SDH

10G Fibre Channel



Ordering Information

Part No.

Data Rate

DDM

Wave

Fiber Type

Dist.

Temp.

Optical Interface

FOCSFPP8510GSR

10Gbps

yes

850nm

MMF

300m

-5~85℃

LC



We offer label OEM design and print.



850nm SFP Optical Transceiver 10Gbps Multimode 300M For Fiber Network

Fiber Optic Transceiver, Optical Fiber Transceiver, SFP MM Transceiver, SFP Transceiver
