Optical Fiber Multi Meter fiber optic tools and test equipment Wide Range Detection Zone

China Optical Fiber Multi Meter fiber optic tools and test equipment  Wide Range Detection Zone supplier

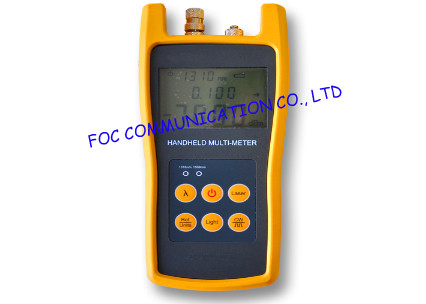

Large Image :  Optical Fiber Multi Meter fiber optic tools and test equipment Wide Range Detection Zone

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: Fiber Optic Multi Meter FO3210

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Contact Now
Detailed Product Description
Type: Handheld Or Bench-top Calibration Wavelength(nm): 850, 1300, 1310, 1490, 1550, 1625
Testing Range: -70-+26dBm Connector: FC/PC

Optical Fiber Multi Meter FO3210 Wide Range Detection Zone For Fiber Systems



General information

FO3210 is the company high availability, highly cost-effective optical multi meter. It’s the integration of power meter and light source, user can operate the two function  together or separately, which improves his work efficiency greatly. Moreover, FO3210 is widely used in the fiber-optic line project construction, testing and maintenance, such as digital data network, telecommunication network and cable television.



Features:
Great LED display, easy to operate
Automatic switching function of the internal source wavelength
Detection of the frequency light
Power measurement in dBm and mw
Wide-range detection zone
Battery indication



Applications:
Maintenance of telecommunication project
CATV project maintenance
Digital data network project maintenance
Teaching and research in optical communications
Other fiber-optic projects



Technical Specifications

Instrument model parameters

FO3210A

FO3210C

Power meter



Calibration wavelength(nm)

850,1300, 1310,1490,1550,1625(Wavelength is optional)

Testing range(dBm)

-70~+6

-50~+26

Display resolution(dB)

0.01

Uncertainty(dB)

≤±0.25

linearity(dB)

≤±0.1

Connector type

FC(Optional)

Source



Working wavelength(nm)

1310/1550(±20)(customizable)

Typical Output Power(dBm)

-5(customizable)

Stability(dB,30min,20℃)

≤0.1dB

Connector type

FC/PC(customizable)

Modulation frequency (Hz)

CW,270Hz,1KHz,2KHz

Other parts



Power supply

3*AA 1.5Vbattery /  Mini USB 5Vadapter

Auto-off time (min)

10

Battery continuous operation time)(h)

Source ON≥50,source off≥200

Working temperature(℃)

-10~+60

Storage temperature(℃)

-25~+70

size(mm)

171×73×26

weight(g, not including battery)

175



Standard Packages

MODEL

INCLUDES

All  Models

FO3210 Main Uint, Shield  sleeve, 1.5V batteries, User Manual, Soft Oxford cloth pack, Cotton swabs, certificate
