GJFJV Multimode Optical Fiber Cable
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | ISO Certificate, RoHS Compliant |
Model Number: | Fiber Optic Cable GJFJV Multicore |
Payment & Shipping Terms:
Minimum Order Quantity: | 1KM |
---|---|
Packaging Details: | 1KM/drum |
Payment Terms: | T/T, Western Union |
Detail Information |
|||
Material: | PVC, LSZH, OFNR, OFNP | Cores: | 6Cores, 8Cores, 12Cores, 24Cores |
---|---|---|---|
Fiber Type: | SM G.652D, SM G.657, MM 50/125um, MM 62.5/125um, OM3, OM4 | Jacket Color: | Yellow, Orange, White Or Customer Request |
High Light: | tight buffered cable,loose tube fibre optic cable |
Product Description

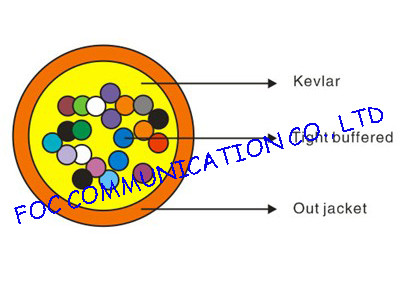

GJFJV Fiber Optic Cable Multicores Suitable For Cable Distribute or Assemblies
Fiber optic cable is a cable containing one or multiple optical fibers that are used to transmit the signal. The optical fiber elements are typically individually coated with layers and contained in a protective tube suitable for the environment where the cable will be deployed. Different types of cable are used for different applications, for example long distance telecommunication, or providing a high-speed data connection between different parts of a building.
There are indoor cable and outdoor cable, single mode and multimode cable, simplex, duplex or multi-core cable.
Features
Good mechanical and enviromental characteristics which meet the requirement of relevant standards
Soft, flexible, easy to lay and splice, and with big capacity data transmission
High strength Kevlar strength member ensures tension-resistance and long-term stability in transmission.
Small outer diameter, lightweight, flame-retardant, easy to strip, low attenuation, physically soft.
Direct connection between tight-buffered cables without the need to go through patch panel and pigtails.
Suitable for installation and operation and also convenient for maintenance.
Applications
Connecting cables between buildings
Connecting soft cable along wall, ceiling, layers and tubes
Use for pigtail or patch cord for connection
Temperature range: -20℃~+70℃
Specifications
Fiber Count |
Cable Diamater(mm) |
Weight (kg/km) |
Tensile(N) |
Crush(N/100mm) |
Min.Bending Radius(mm) |
|||
Long Term |
Short Term |
Long Term |
Short Term |
Dynamic |
Static |
|||
4 |
5.0 |
19.0 |
130 |
440 |
200 |
1000 |
20D |
10D |
6 |
5.2 |
23.0 |
130 |
440 |
200 |
1000 |
||
8 |
5.5 |
26 |
130 |
440 |
200 |
1000 |
||
12 |
6.5 |
36.5 |
200 |
660 |
200 |
1000 |
||
16 |
7.5 |
44.5 |
200 |
660 |
200 |
1000 |
|
|
24 |
8.2 |
54.5 |
200 |
660 |
200 |
1000 |
Ordering Information
Fiber Count |
Fiber Type |
Jacket Material |
Jacket Color |
Outer diameter |
4 |
SM G.652D |
PVC |
Yellow-Indoor |
Nominal |
6 |
SM G.657 |
LSZH |
Orange-Indoor |
Customized |
8 |
MM 50/125um |
PE |
Black-Outdoor |
|
12 |
MM 62.5/125um |
Customized |
Customized |
|
Customized |
|
|
|
|
