1×16 PLC SC APC Fiber Optic Splitter Box 96F FATM-0416M-B
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Fiber Access Terminal FATM-0416M-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/Carton |
| Delivery Time: | 3-5days |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Reinforced Adapter: | 16pcs SC/UPC Or 16pcs SC/APC | Port: | 16 Ports |
|---|---|---|---|
| IP Protection Level: | IP65 Protection Level | Fiber: | 96Fibers |
| Quality Control: | 100% Test Before Shipping | Splitter: | 1*8 Or 1*16 Splitter Can Be Installed |
| High Light: | SC APC Fiber Optic Splitter Box,1×16 PLC Fiber Optic Splitter Box,96F Optical Fiber Junction Box |
||
Product Description

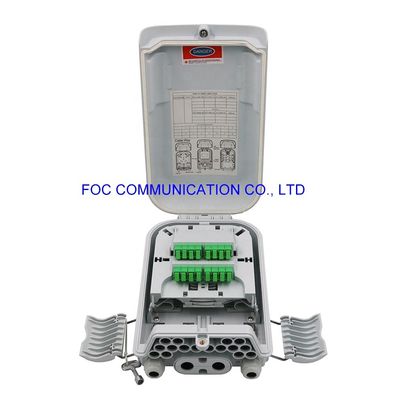

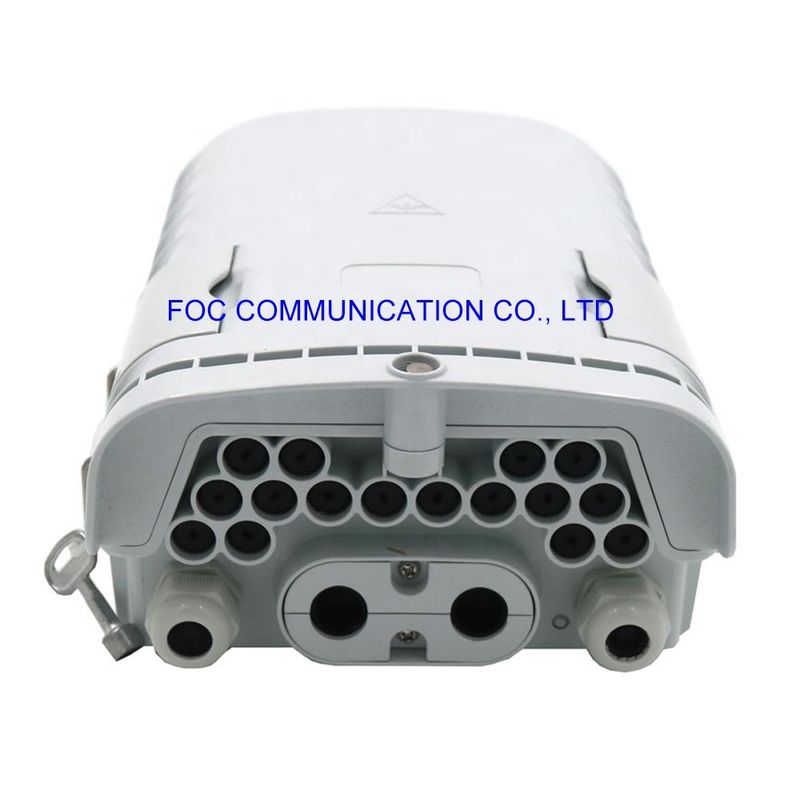

Fiber Access Termination Box FATM-0416M-B Fully Loaded With two-steps 1*16 PLC Splitter SC/APC
Fiber access termination box FATM-0416M-B is able to hold up to 16 subscribers and 16 splicing points as closure. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features● Water-proof design with IP-65 Protection level. ● Stainless anti-rust bolts and nuts. ● Easy for maintenance and expansion. ● Integrated with flap-up splice cassette and adapter holder. ● Fiber bend radius control more than 40mm. ● Suitable for the fusion splicer or mechnical splice ● 180 degree access wih buckled lock structure. ● 1pcs of 1*16 Splitter can be installed as option. ● Mechnical sealing structure and mid-span cable entry. ● 16 pcs of pre-installed reinforced water-proof adapter for SC.
Configuration
Fiber Access Terminal FATM-0416M-B Parameter
|
||||||
Material
|
Size
|
Max Capacity
|
Reinforced Adapter
|
Weight
|
Color
|
|
PC+ABS
|
AxBxC(mm)
|
Splice 96 Fibers
|
PLC splittter
|
16pcs SC/UPC
|
1.85kg
|
Grey/Black
|
287x172x102
|
4 trays x 24fiber/tray
|
1pcs of 1x16(SC)
|
or 16pcs SC/APC
|
|||
Application
● Wall-mounted installation
● Pole-mounted installation
● Aerial-hanging installation
● Suitable for Huawei pre-connectorized drop cable with reinforced connector.
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.
Optional Accessories
Pole mounted kits
