1*8 PLC 16ports Fiber Optic Splitter Box Cassette 12F FATB-0416L
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Fiber Access Terminal Box FATB-0416L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/Carton |
| Delivery Time: | 3-5days |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Reinforced Adapter: | 16pcs SC/UPC Or 16pcs SC/APC | Port: | 16 Ports |
|---|---|---|---|
| IP Protection Level: | IP65 Protection Level | Fiber: | 120 Fibers |
| Quality Control: | 100% Test Before Shipping | Splitter: | 1*8 Or 1*16 Splitter Can Be Installed |
| High Light: | 16ports Fiber Optic Splitter Box,1*8 PLC Fiber Optic Splitter Box,12F Outdoor Fiber Optic Enclosures |
||
Product Description

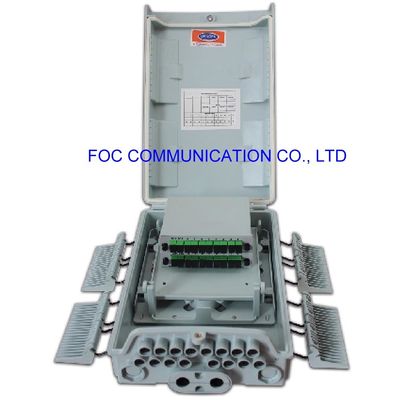

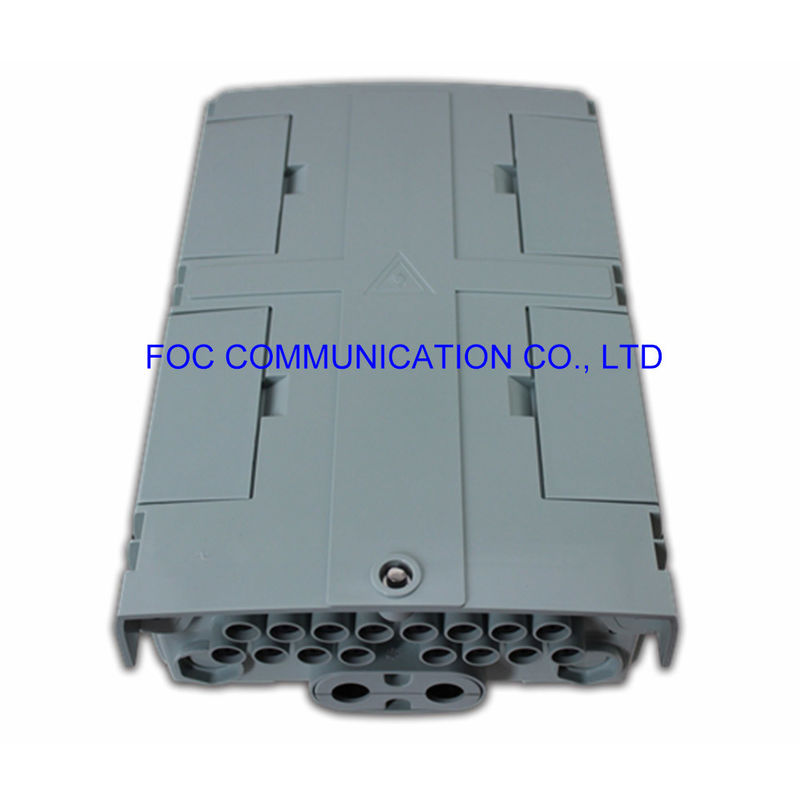

Fiber Access Termination Box FATB-0416L Loaded with Cassette Type PLC Splitter 1*8 or 1*16
Fiber access termination box FATB-0416L is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
● Water-proof design with IP-65 Protection level.
● Integrated with flap-up splice cassette and adapter holder.
● Maximum 12F splice capacity,stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 2pcs of 1*8 LGX and cassette type PLC splitter can be installed
● 16pcs of mechanical ports for 3-7mm drop cable.
● 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)
Configuration
Fiber Access Terminal FATB-0416L Parameter
|
||||||
Material
|
Size
|
Max Capacity
|
Reinforced Adapter
|
Weight
|
Color
|
|
PC+ABS
|
AxBxC(mm)
|
Splice 120 Fibers
|
PLC splittter
|
16pcs SC/UPC
|
1.85kg
|
Grey/Black
|
340x220x95
|
|
2pcs of 1x8(SC)
|
or 16pcs SC/APC
|
|||
Application
● Wall-mounted installation
● Pole-mounted installation
● Aerial-hanging installation
● Suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.
Optional Accessories
Pole mounted kits
