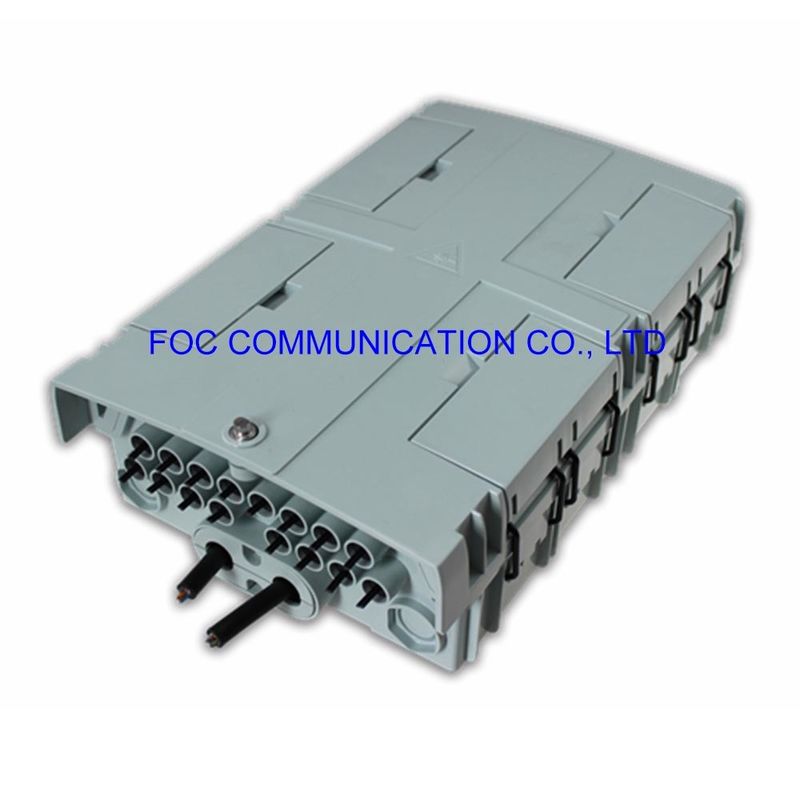

Waterproof FTTx 120F Splicing Fiber Termination Box FATB-0416A
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Fiber Access Terminal Box FATB-0416A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/Carton |
| Delivery Time: | 3-5days |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Reinforced Adapter: | 16pcs SC/UPC Or 16pcs SC/APC | Port: | 16 Ports |
|---|---|---|---|
| IP Protection Level: | IP65 Protection Level | Fiber: | 120 Fibers |
| Quality Control: | 100% Test Before Shipping | Splitter: | 1*8 Or 1*16 Splitter Can Be Installed |
| High Light: | 120F Splicing Fiber Termination Box,FTTx Fiber Termination Box,Waterproof Optical Fiber Distribution Box |
||
Product Description
Fiber Access Termination Box FATB-0416A FTTx Using High Resistance Max. 120F Splicing Capacity
Fiber access termination box FATB-0416A is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
FeaturesTotal enclosed structure, be in nice shape Protects and manages cable effectively Secured with anti-theft locking mechanism Standard size, light weight High quality PC +ABS material Good properties of dust, and moisture proofing, IP65 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one Suitable for SC and LC duplex adaptor and pigtail Easy to operate Wall and pole mountable (accessories optional) Suitable for both outdoor and indoor use
Configuration
Fiber Access Terminal FATB-0416A Parameter
|
||||||
Material
|
Size
|
Max Capacity
|
Reinforced Adapter
|
Weight
|
Color
|
|
PC+ABS
|
AxBxC(mm)
|
Splice 120 Fibers
|
PLC splittter
|
24pcs SC/UPC
|
1.85kg
|
Grey/Black
|
340x220x95
|
5 trays x 24fiber/tray
|
2pcs of 1x8(SC)
|
or 24pcs SC/APC
|
|||
Application
● Wall-mounted installation
● Pole-mounted installation
● Aerial-hanging installation
● Suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.
Optional Accessories
Pole mounted kits
