Waterproof FTTX IP65 Fiber Optic Distribution Box 8 Ports
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Fiber Access Terminal FATB-0408R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/Carton |
| Delivery Time: | 3-5days |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Reinforced Adapter: | 8pcs SC/UPC Or 8pcs SC/APC | Port: | 8 Ports |
|---|---|---|---|
| IP Protection Level: | IP65 Protection Level | Fiber: | 120 Fibers |
| Quality Control: | 100% Test Before Shipping | Splitter: | 1*8 Splitter Can Be Installed |
| High Light: | FTTX Fiber Optic Distribution Box,IP65 Fiber Optic Distribution Box,8 Ports Fiber Optic Breakout Box |
||
Product Description

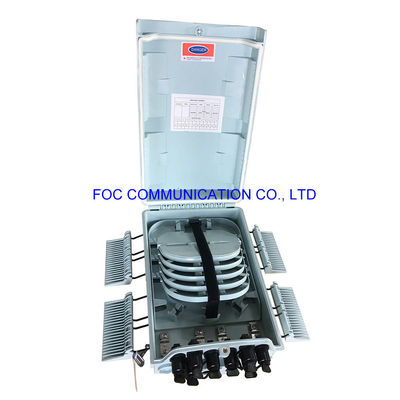

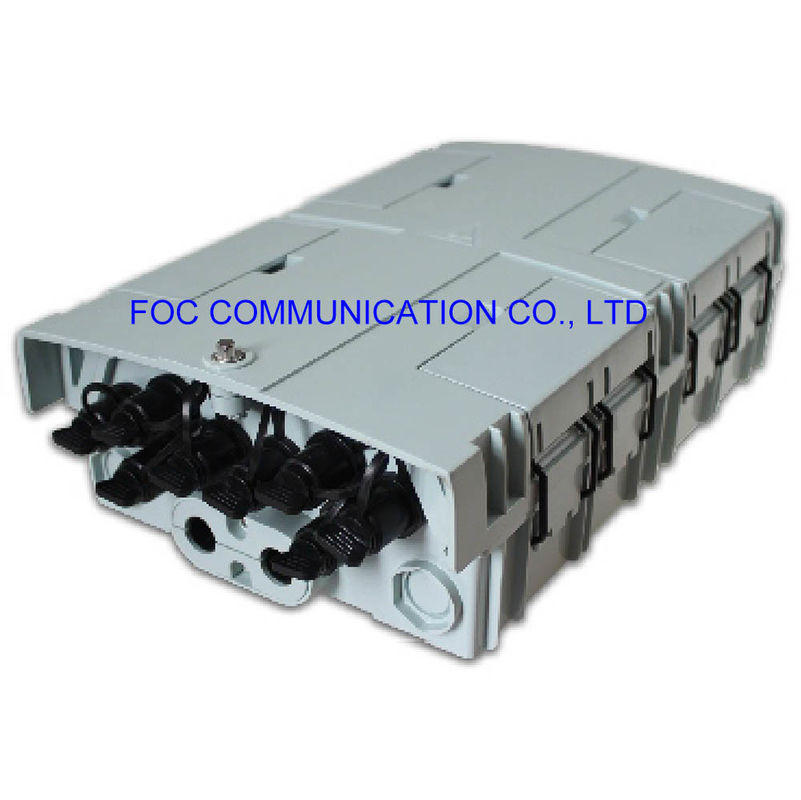

Fiber Access Termination Box Used for FTTX Network Systems Water-proof design with IP-65 Protection level
Fiber access termination box FATB-0408R is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features● Waterproof design with IP-65 Protection level. ● Maximum 120F splice capacity,stainless anti-rust bolts and nuts. ● Plug-and-play installation, easy for maintenance and expansion. ● Integrated with splice cassette and cable management rods. ● Fiber bend radius control more than 40mm. ● 180 degree access wih buckled lock structure. ● 1*8 Splitter can be installed in each splice tray as option. ● 8 pcs of pre-installed reinforced water-proof adapter for SC. ● 1 mid-span cable entrance(10-16.5mm) for uncut cable entrance for distribution cable gland(8-13.5mm)
Configuration
Fiber Access Terminal FATB-0408R Parameter
|
||||||
Material
|
Size
|
Max Capacity
|
Reinforced Adapter
|
Weight
|
Color
|
|
PC+ABS
|
AxBxC(mm)
|
Splice 120 Fibers
|
PLC splittter
|
8pcs SC/UPC
|
1.85kg
|
Grey/Black
|
340x220x95
|
5 trays x 24fiber/tray
|
1x8(SC)
|
or 8pcs SC/APC
|
|||
Application
● Wall-mounted installation
● Pole-mounted installation
● Aerial-hanging installation
● Suitable for Huawei pre-connectorized drop cable with reinforced connector.
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.
Optional Accessories
Pole mounted kits
