FTTA Outdoor Waterproof IP67 LC LC Fiber Patch Cord
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | FTTA Patch Cord LC-LC 4F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | G.652D, G.657A, G.655, SM Or MM | Cable Material: | LSZH, TPU |
|---|---|---|---|
| Cable Diameter: | 2.0mm, 0.9mm | Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC |
| Cores: | 4 Core | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| Armored: | Non-armored, Armored | Quality Control: | 100% Test Before Shipping |
| High Light: | gyfjh patch cord optical fiber,500 cycles lc lc patch cord |
||
Product Description

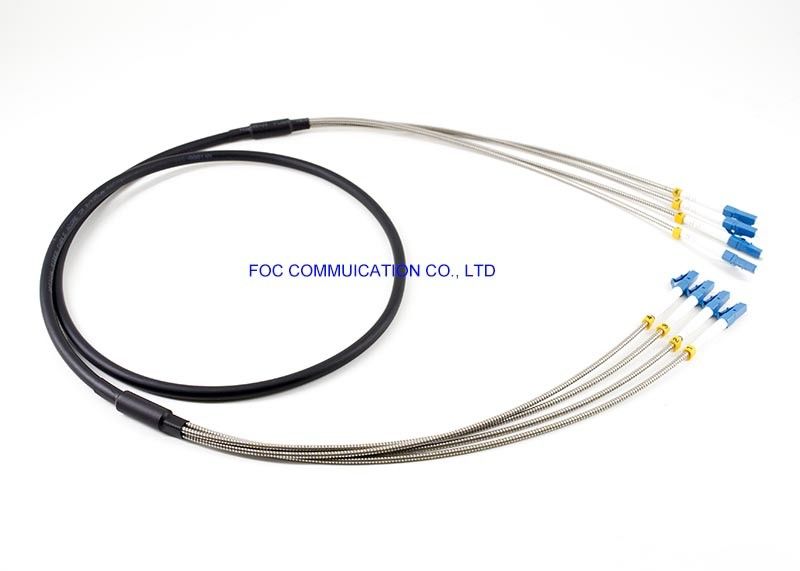

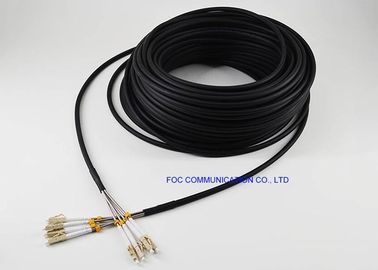

LC-LC Fiber Patch Cord FTTA Outdoor IP67 Waterproof GYFJH Cable 4 Fiber
GYFJH type cable fiber optic patch cord is widely used for RRU, base station, FTTA and outdoor waterproof conditions, suitable for fiber optic networks transmission in harsh environment. The cable jacket is LSZH, flame retardant, waterproof, anti-rat. There are several branches aramid yarn to resist high tensile strength. The cable is soft, easy to wire and small space available. It is with metal tube to protect the fiber.
Features
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode (G.657A, G.652D) and multi-mode (OM1, OM2, OM3, OM4)
Broad temperature range and wide range of indoor and outdoor cables
Dust, Moisture, Waterproof design.
Easy Operation, reliable and cost-effective installation
Low insertion loss, high return loss, steady optical transmitting
LSZH, PVC, OFNP, OFNR, TPU outer jacket can be provided as per request
Applications
FTTA, FTTH
3G, 4G Base Station
BBU, RRU, RRH, LTE
Harsh outdoor environments applications
Specifications of FTTA Armored Patch Cord
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Mechanical life | 500cycles |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Tensile strength | Tensile between junction and fiber cable≥180N |
| Outer sheath flame retardant | UL94 V-0 |
| Outer sheath UV resistant | UL 746C |
