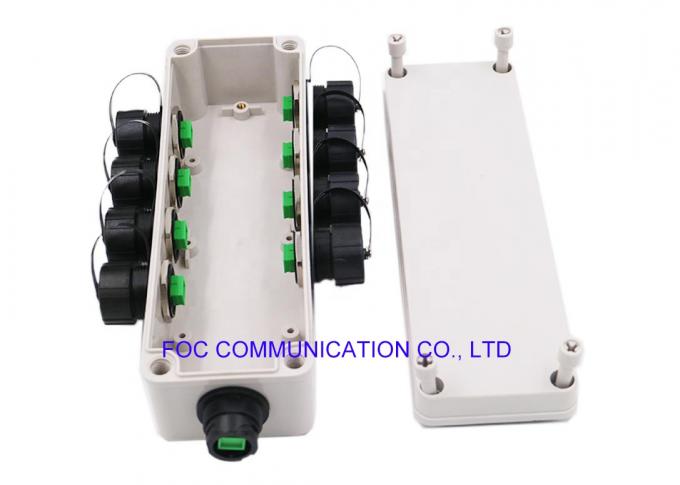

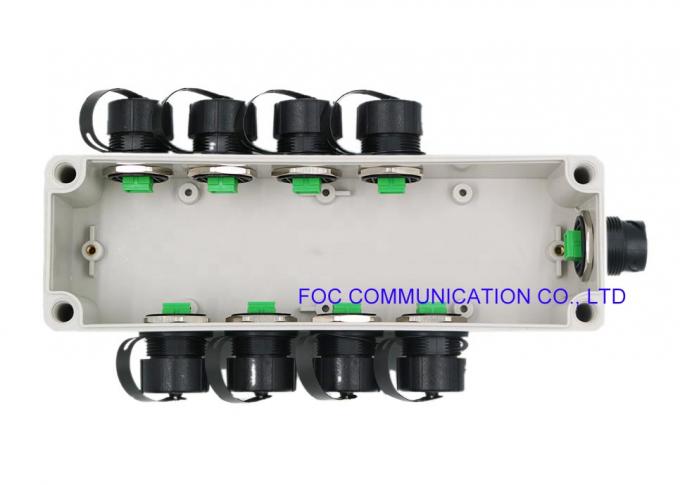

ODVA/SC MPO/Optitap Connector Box Outdoor IP67 Waterproof FTTA

China ODVA/SC MPO/Optitap Connector Box Outdoor IP67 Waterproof FTTA supplier
ODVA/SC MPO/Optitap Connector Box Outdoor IP67 Waterproof FTTA supplier ODVA/SC MPO/Optitap Connector Box Outdoor IP67 Waterproof FTTA supplier

Large Image :  ODVA/SC MPO/Optitap Connector Box Outdoor IP67 Waterproof FTTA

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: Waterproof box for ODVA connector

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/Carton
Delivery Time: 3-5days
Contact Now
Detailed Product Description
Connector: SC/APC, SC/UPC, LC/APC, LC/UPC, MPO Cable Material: PVC, LSZH, OFNP, OFNR, TPU
Fiber Type: G.652D, G.657A, G.655, SM Or MM Core: 2core, 4core, 8core, 12core, 24core
Box: Fully Loaded, Empty Quality Control: 100% Test Before Shipping

ODVA/SC MPO/Optitap Connector Box Outdoor IP67 Waterproof FTTA



ODVA BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.



Features

  • Insertion loss: SC/LC≤0.3dB, MPT/MPO≤0.5dB, Return loss: ≥50dB.
  • Tensile strength: > 50 N
  • Job stress: 70 kpa to 106 kpa;
  • Using the temperature: - 40 ~ + 75 ℃
  • Relative humidity: ≤85% (+ 30 ℃).
  • Protection grade: IP67
  • Internal inventory redundant optical fiber, convenient in operation and maintenance.
  • Especially suitable for the use of multi-storey and high-rise tenants, easy to install, easy to install.
  • Material: ABS new resistance fuel, quality assurance, the flame retardant performance accord with
    standard of communication industry, flame retardant grade UL94V - level 0
  • Suitable adapter : MIni-SC, H connector-SC, ODVA-LC,ODVA-MPO,ODVA-MPT.
  • Structure: open type
  • Color: grey (color can be customized)
  • Sealing way: TPE seals
  • Installation method: overhead, hanging.
  • Size (H*W*D)mm: 250* 80*70mm
  • Wall Seal Design, Easy Operation, Cost-effective Installation
  • Light Weight, Dustproof and Waterpoof

Application

  • FTTA,FTTH Application
  • 3G,4G Base Station
  • Horizontal and Vertical Cabling
  • BBU,RRU,RRH,LTE



Specifications

Item Unit Parameter
MPO/MTP Connector Standard SM MT Ferrule Low Loss(Elite) SM MT Ferrule Standard MM MT Ferrule Low Loss MM MT Ferrule
Insertion Loss Typical (dB) 0.35 0.20 0.35 0.20
Maximun (dB) 0.75 0.35 0.60 0.35
Return Loss (dB) ≥60 for APC (8 Angle Polish) ≥20 for PC
(dB) ≥50 for PC
Male/Female (dB) Male: With Pins, Female: Without Pins
Tensile Strength (dB) ≤0.3 (Max 66N)
Vibration (dB) ≤0.3 (10 ~ 55Hz)
Thermal Cycle (dB) ≤0.3 (-40 ~ 75℃, 21Cycles)



ODVA/SC MPO/Optitap Connector Box Outdoor IP67 Waterproof FTTAODVA/SC MPO/Optitap Connector Box Outdoor IP67 Waterproof FTTA
