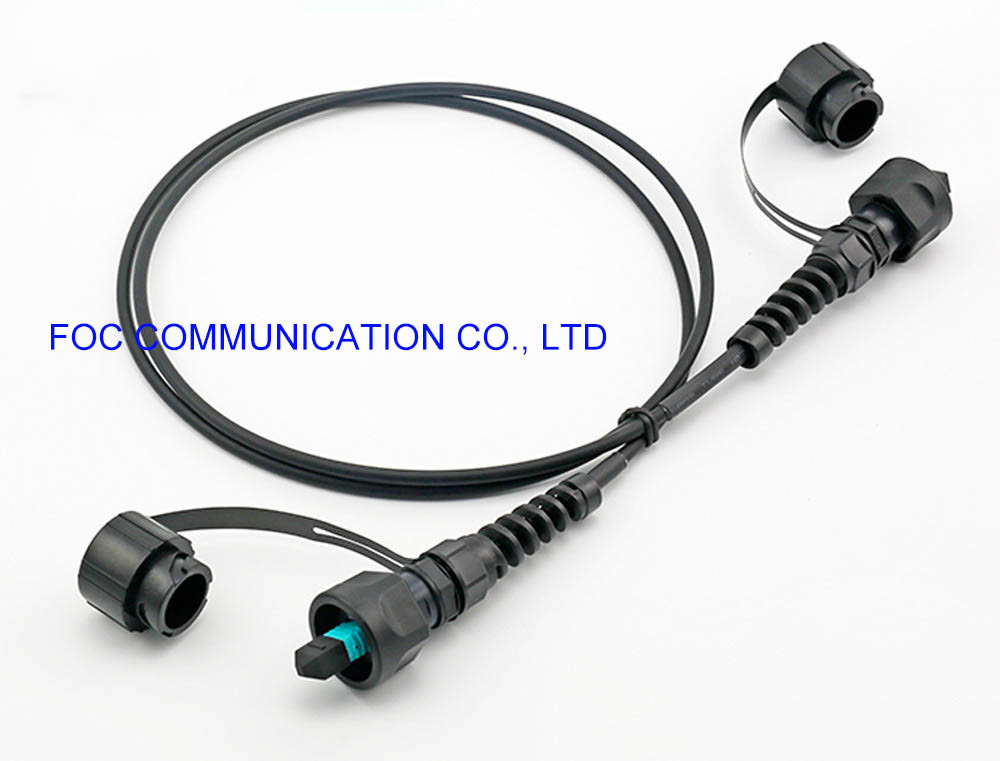

ODVA MPO To ODVA MPO OM3 Optical Fiber Patch Cord FTTA Outdoor IP67 Waterproof
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | ODVA Patch Cord MPO Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | G.652D, G.657A, G.655, SM Or MM | Cable Material: | PVC, LSZH, OFNP, OFNR, TPU |
|---|---|---|---|
| Cable Diameter: | 2.0mm, 0.9mm | Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC, MPO |
| Cores: | 12 Core | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| Armored: | Non-armored, Armored | Quality Control: | 100% Test Before Shipping |
| High Light: | simplex fiber patch cord,fiber optic jumper |
||
Product Description
MPO/MTP ODVA waterproof long time service life patch cables are ideal solution for the FTTA and FTTH with its rugged design IP67 Grade. More than that, it also widely been used in Automation, industry cabling, CCTV, naval and Broadcasting due to with features such corrosion resistance, waterproof, anti-shock, anti-vibration to meet the challenge environment.
ODVA harsh environment cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions. They are well suited for Industrial and Aerospace and Defense applications.
FOC COMMUNICATION CO., LTD offers ODVA-LC patch cords, ODVA-SC patch cord, ODVA-MPO patch cords as per customer requests, length from 1Meter to 500Meters.
Specifications
- IP67 rated for water and dust protection, corrosion resistance
- Screwed mating mechanism to ensure the connection
- Shock, vibration and mechanical crush resistance
- Designed for harsh environment application with a broad temperature range
- Customized cable length, and fiber type
- Plug and play, easy and reliable, cost effective connection
- Flame retardant and waterproof
- Widely used in FTTA & FTTH
- Used for 3G 4G base station
- BBU, RRU, RRH, LTE
Technical Data
| Connector | End A | ODVA-DLC (duplex LC), or SC, MPO, MTP | |||
| End B | ODVA-DLC (duplex LC), or SC, MPO, MTP | ||||
| Fiber Core | 2, 4…12 | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 0.2 | 0.3 | |||
| Return Loss(Min.dB) | 55 | 60 | 35 | ||
| Mating times | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
