Sustainable Ftth Termination Box Enclosure With 12 Core MPO Distribution Fan Out Pigtail
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
Model Number: | FTTx enclosure with PLC Splitter |
Payment & Shipping Terms:
Minimum Order Quantity: | 10PCS |
---|---|
Packaging Details: | 1PCS/Carton |
Delivery Time: | 3-5days |
Detail Information |
|||
Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC, MPO | Armored: | Non-armored, Armored |
---|---|---|---|
Cable Material: | PVC, LSZH, OFNP, OFNR, TPU | Fiber Type: | G.652D, G.657A, G.655, SM Or MM |
Quality Control: | 100% Test Before Shipping | Cable Diameter: | 2.0mm, 0.9mm |
High Light: | cable termination box,ftth termination box |
Product Description

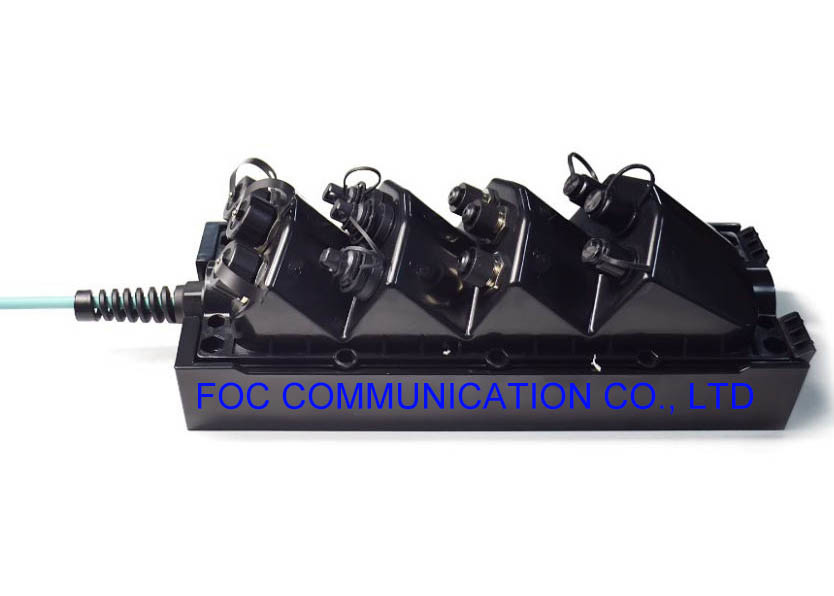

Sustainable FTTx Enclosure with 12 Core MPO Pigtail or Distribution Fan Out Pigtail
FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Trunk Cable Connecting Trunk cable needs to be fusion welded frequently because of each drum cable length limited. So connecting point is weak and need to be protected very well. When trunk cable comes into FTTX Enclosure, it will be sealed and fixed by torsion proof cable gland (plastic or metal type). For 5mm-14mm out diameter cable, FTTX Enclosure has different accessories to fit. Torsion gland can release stress when trunk cable bending and protect fiber avoid breaking. Inside of the FTTX Enclosure, main cable and strength member were fixed by fastener, which make sure the box can stand 1200N pulling force long term. Splice protection sleeve (Max. 24pcs) and PLC (Max.2pcs) can be fixed on the body, which make FTTX Enclosure fiber divided very easy. Anti-skid design on the base case, which makes sure FTTX Enclosure holds wire/pole firmly.
Specifications
High compatibility: can be assembled ODVA, H conn (OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide.
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.
Technical Data
Dimensions (LxWxH) | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
Ingress protection | IP67 |
Temperature range | -40~80℃ |
Cable strength member | Armored or Non-armored |
Cable type | Hybrid or non-hybrid |
Round cable OD | 5.0mm to 14.0mm |
Flat cable dimension | 4.6x8.9mm |
Cable jacket material | LSZH, PE or TPU |
Bending Radius | 20D |
Cable crush resistance | 200N/cm long term |
Tensile strength | 1200N long term |
Fire protection rating | UL94-V0 |
Number of PLC | 1 to 2pcs |
Number of fusion protection sleeve | 1 to 24pcs |
