PLC Splitter Fiber Optic Termination Box IP68 Waterproof Easy Installed Pole / Wall Mount

China PLC Splitter Fiber Optic Termination Box IP68 Waterproof Easy Installed Pole / Wall Mount supplier
PLC Splitter Fiber Optic Termination Box IP68 Waterproof Easy Installed Pole / Wall Mount supplier PLC Splitter Fiber Optic Termination Box IP68 Waterproof Easy Installed Pole / Wall Mount supplier

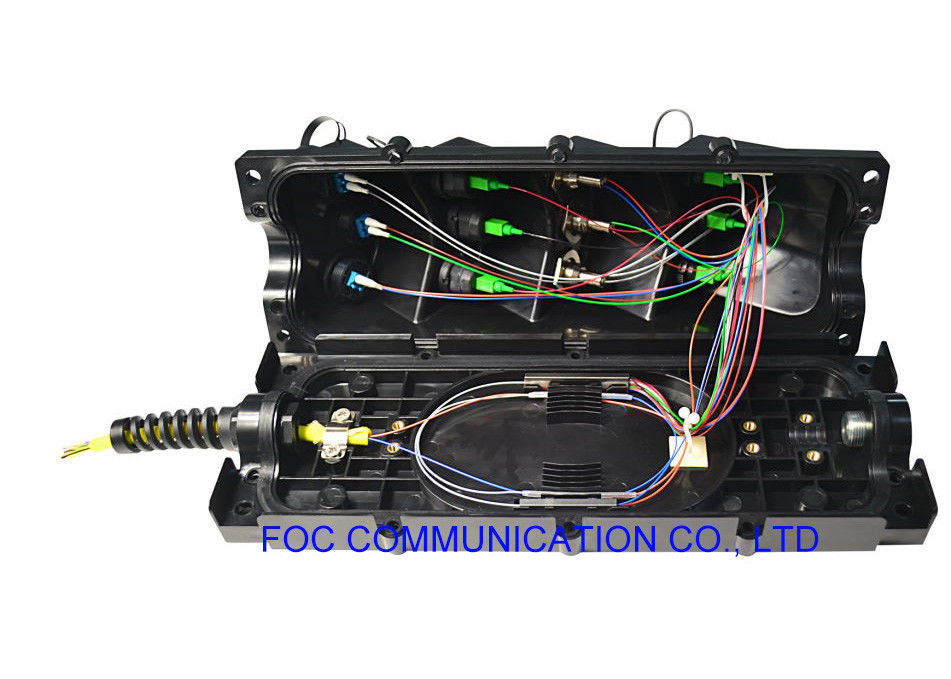

Large Image :  PLC Splitter Fiber Optic Termination Box IP68 Waterproof Easy Installed Pole / Wall Mount

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: FTTx enclosure with PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/Carton
Delivery Time: 3-5days
Contact Now
Detailed Product Description
Connector: SC/APC, SC/UPC, LC/APC, LC/UPC, MPO Armored: Non-armored, Armored
Cable Material: PVC, LSZH, OFNP, OFNR, TPU Fiber Type: G.652D, G.657A, G.655, SM Or MM
Quality Control: 100% Test Before Shipping Cable Diameter: 2.0mm, 0.9mm

Cost Effective FTTx Enclosure with PLC Splitter Easy Installed Pole / Wall Mount Available



FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.



FTTH field traditional solution use ONU or FDH (Optical Network Unit/Fiber Distribution Hub), when trunk optical cable arrives to outside of mansions and villas. FTTX Enclosure can replace ONU or FDH because it has fiber distribution function. Inside, it can be fixed 2-4pcs 1*8 or 1*16 PLC, and can be put 24pcs fiber splice protection sleeves. After mating with 1-48F IP67 preassembled waterproof connector, FTTX Enclosure can connect each mansion and villa or low voltage silo directly. It can be fixed outside of mansions and villas, or holding pole installation. FTTX Enclosure can reduce signal loss through less connecting node. For in factory preassembled FTTX Enclosure, it’s no need high skill operator because of no fiber splice operation. Installation efficiency can be increased by 40%.



Specifications

High compatibility: can be assembled ODVA, H conn (OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.

Factory-sealed or field assembly.

Strong enough: working under 1200N pulling force long term.

From 2 to 12 ports for single or multifiber harsh connectors.

Available with PLC or splice sleeve for fiber divide.

IP68 waterproof rating.

Wall-mounting, aerial installation or holding pole installation.

Decreased angle surface and height make sure no connector interfering when operating.

Meet IEC 61753-1 standard.

Cost effective: save 40% operating time.



Technical Data

Dimensions (LxWxH) 365x137x90mm(Without cover) 375x142x120mm(With cover)
Ingress protection IP67
Temperature range -40~80℃
Cable strength member Armored or Non-armored
Cable type Hybrid or non-hybrid
Round cable OD 5.0mm to 14.0mm
Flat cable dimension 4.6x8.9mm
Cable jacket material LSZH, PE or TPU
Bending Radius 20D
Cable crush resistance 200N/cm long term
Tensile strength 1200N long term
Fire protection rating UL94-V0
Number of PLC 1 to 2pcs
Number of fusion protection sleeve 1 to 24pcs
