Wall Mounted FTTH Distribution Box 48 Port , Network Termination Box For Fiber Splicing

China Wall Mounted FTTH Distribution Box 48 Port , Network Termination Box For Fiber Splicing supplier

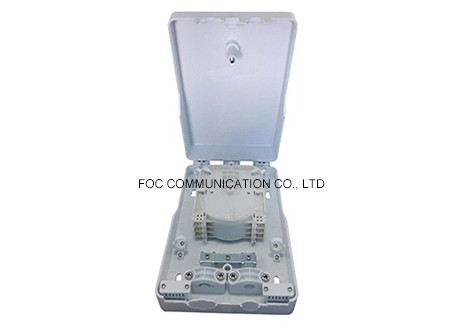

Large Image :  Wall Mounted FTTH Distribution Box 48 Port , Network Termination Box For Fiber Splicing

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: OTB-E48

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Contact Now
Detailed Product Description
Mount Type: Wall Mount Material: ABS Or PC Plastic Material
Port: 48Port Connector: SC, FC, LC, ST, E2000

Indoor Wall Mounted Fiber Optic Termination Box 48 Fiber For Fiber Splicing



Optical fiber termination box is used in the end termination of residential buildings and villas, to fix and splice with pigtails. It is made of high quality plastic, compact design, small size and multi-function. It can be installed on the wall. It may adapt variety of optical connection styles. And optical fiber can be managed effectively.



Fiber optic termination box is a newly developed by our company for application of FTTH. The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. This box could be used for wall-mounted applications. The base and cover of the box adopts “self-clip” method, which is easy and convenient to open and close. It could be used for adaptors such as SC,FC, etc and the max capacity is 4 fibers.



Features
Used for wall-mounted applications
Flame retardant ABS plastic material

Used for FTTH, FTTD solutions
The base and cover of the box adopts “self-clip” method, easy to open and close
Designed as seal structure to prevent dust from entering
Used for adapters such as SC, FC, SC-FC and so on.



Applications

CATV

FTTX (FTTH, FTTD, FTTN, FTTP and so on)
Fiber Optic Communication System

LAN, WAN

Military Industry

Optical Active Component and Equipment



Specifications

Function: Termination of optical fiber

Adapter: SC, LC, SC-FC

Cable: General indoor fiber optic cable

Size: 226x150x54.5mm

Material: ABS plastic
Max. capacity: 48 fibers
Max. qty of splice tray: 4pcs
Max. capacity of splice tray: 12 fibers
Color: white



Function Optical fiber termination box
Relation humidity ≤85%(+30 ℃)
Atmospheric pressure: 70Kpa~106Kpa
UPC return loss ≥50dB
Max ratio: 2cores
Fiber Type Corning SMF-28TM,9/125µm
APC return loss ≥60dB
Cable Drop cable, outdoor cable, standard indoor cable
Insertion loss ≤0.2dB
Installation Method Wall mounted, indoor use
Accessories Plastic expansion screw, self-tapping screws, shrinkable sleeves, etc
