Waterproof IP65 Cable Termination Box 24 Core Pigtails And Adapters For FTTH
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | OTB-0216-E1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Packaging Details: | 1PCS/BOX |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000PCS/MONTH |
|
Detail Information |
|||
| Mount Type: | Wall Mount, Pole Mount | Material: | ABS Plastic |
|---|---|---|---|
| Port: | 12, 24, 32, 48, 72, 96 Port | Connector: | SC, FC, LC, ST, E2000 |
| High Light: | cable termination box,network termination box |
||
Product Description

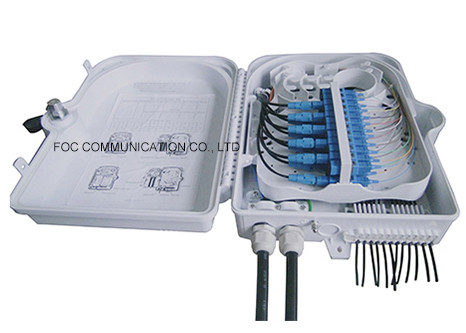

Fiber Terminal Box 24 Core Pigtails and Adapters Pre-loaded For FTTH
FTTX fiber termination box has a multi-layer design that allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter unit and also allows for pigtail splicing of both distribution and drop cables.
FTTX fiber termination box is used for fiber optical cable splicing, distribution, connection and protection. It is made by ABS plastic.
FTTX fiber termination Box comes in a compact and easy to use design. This model is applicable for wall-mount, pole mount, Indoor or outdoor rails installation to house fiber termination and splicing.
Features
Different adapter panel, SC, LC, ST, FC ...
24 adapter port
Max. capacity of splice tray is 24 fiber
Max. 1pc PLC 1:16 steel tube type splitter
Waterproof IP65
Wall mounted or pole mounted application
Application
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks, Wide Area Networks
Specifications
Working Temperature: -40℃～+85℃
Insertion Loss: ≤0.2dB
Return Loss UPC: ≥50dB
Return Loss APC: ≥60dB
Durability: ≤0.3dB(1000 matings)
| Description | OTB-0216-E1 |
| Dimensions(W×D×H) | 313.4x274.3x114.1mm |
| Splice capacity | Max. 24 cores |
| Cable port | In: 2-port/Out:24-port |
| Cable dia. | For FTTH drop cable |
| Color | Ivory/White |
| Main body material | Plastic(ABS) |
| Installation type | Wall mounting and pole mounting |
