Ultra Violet Protective Wall Mount Fiber Enclosure , Fiber Optic Enclosures Outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | OTB-S96-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50PCS |
|---|---|
| Packaging Details: | 1PCS/BOX |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000PCS/MONTH |
|
Detail Information |
|||
| Mount Type: | Wall Mount, Pole Mount | Material: | ABS Plastic |
|---|---|---|---|
| Port: | 12, 24, 32, 48, 72, 96 Port | Connector: | SC, FC, LC, ST, E2000 |
| High Light: | cable termination box,network termination box |
||
Product Description

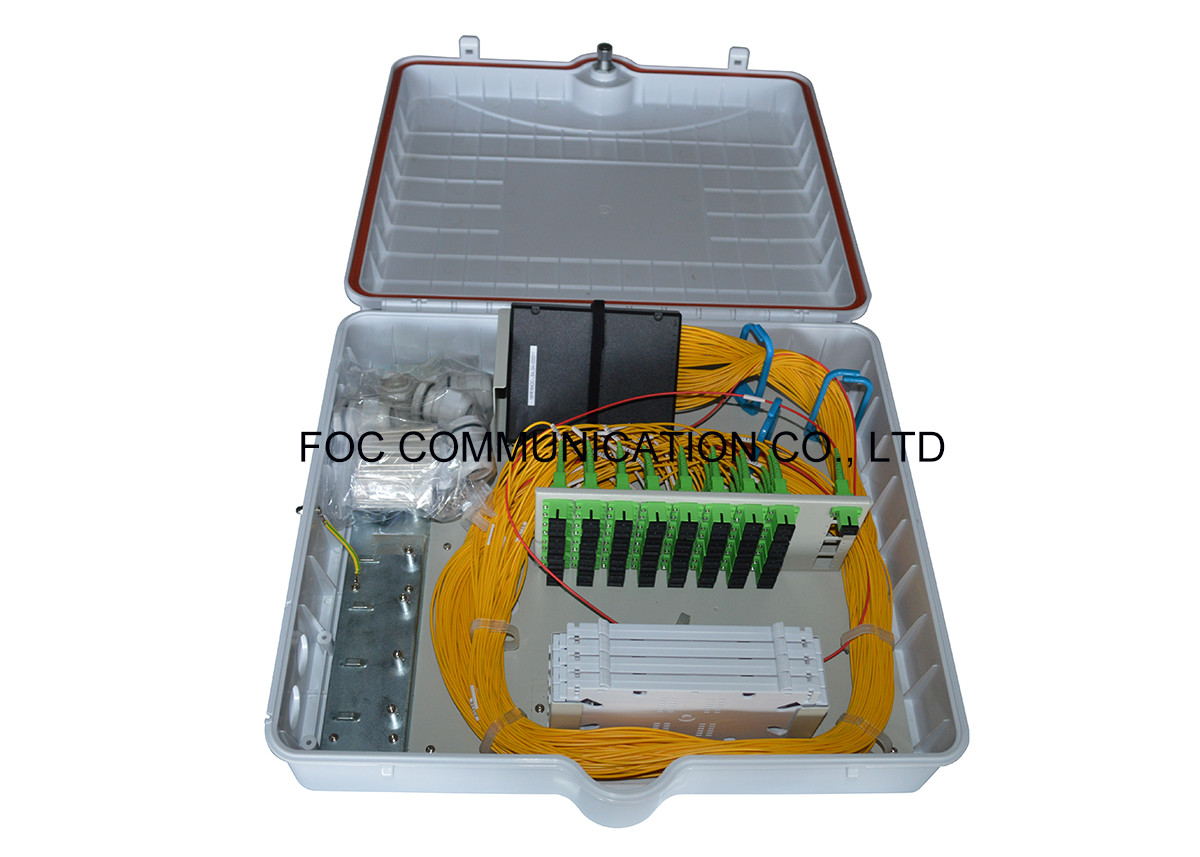

Outdoor Fiber Distribution Box 96 Core With 1:64 PLC ABS Module Type For FTTX
Optical fibre wall mountable distribution boxes are designed to offer tidy and flexible termination and distribution solutions with a simple, low-profile installation. Choose from a connectorised solution where your cable terminates onto pigtails or a splice-only Building Flexibility Point designed as the central point in a building's fibre distribution.
Fiber optic terminal box is small size, light weight economic solution for small termination capacity, wall mountable termination box for indoor and outdoor use.
Fiber optic terminal box is available for the distribution and terminal connection of various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected.
Features
The box is made from anti-ageing materials, with ultra violet protective characteristics
The sealing mechanism is based on pressed rubber/silicon strip and is rated to IP65
The box is fitted with a lock for additional security and can be installed on walls or mounted on a pole
Spare loops of pigtails and drop cables can be stowed in the storage compartment for convenience or for maintenance
Special locking device for output cables
Bi-Layer structure, for splicing and upper layer for splitting and distribution
There are up 96 port positions for adapters (FC, LC duplex, SC simplex or ST)
Application
Data communications Networks
Local Area Networks, Wide Area Networks
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Specifications
Working Temperature: -40℃～+85℃
Insertion Loss: ≤0.2dB
Return Loss UPC: ≥50dB
Return Loss APC: ≥60dB
Durability: ≤0.3dB(1000 matings)
| Model | Adapter port |
Dimension(mm) W*H*D |
Splitter space |
| OTB-S96 | 96 | 397 ×467×125 | No |
| OTB-S96-A | 72 | Max. 8pcs 1:8 or 1pc 1:64 box type splitter | |
| OTB-S96-B | 72 |
