FTTH Optical Fiber Distribution Box / Outdoor Cable Enclosure Box ISO RoHS Listed
|Place of Origin:||China|
|Certification:||RoHS Compliant, ISO Certificate|
Payment & Shipping Terms:
|Minimum Order Quantity:||50PCS|
|Payment Terms:||Western Union, T/T|
|Mount Type:||Wall Mount, Pole Mount||Material:||ABS Plastic|
|Port:||12, 24, 32, 48, 72, 96 Port||Connector:||SC, FC, LC, ST, E2000|
ftth termination box,
network termination box

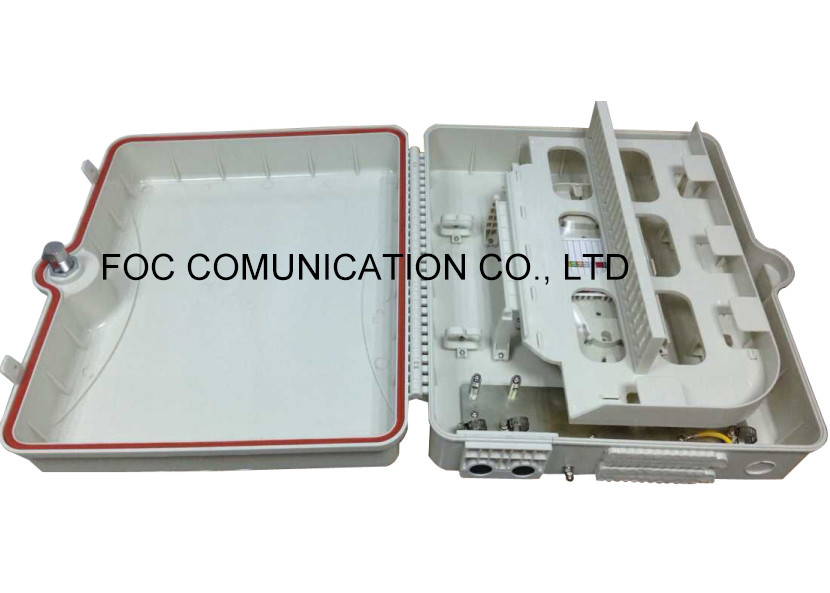

Optical Terminal Box 48 Core For FTTX Indoor And Outdoor Use
Optical fiber termination boxes are used for the termination of fiber optic cables both for internal and external use with an adequate grade of IP.
Fiber optic drop cable terminal box is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Fiber optic terminal box is suitable for SC splitters 1:2, 1:4, 1:8, 1:16, 1:32 type and can be loaded with 48pcs of SC simplex adapters. All the components are pre-assembled and easy to be installed together. And it is a perfect solution for optical fiber installations and management.
Made with plastic material,
Capacity up to 48 fibers.
Available for SC simplex, LC duplex connectors
Provided with a fixing kit and splice tray, cable glands etc.
Easy to install
Provided with accessories for wall installation
Telecommunications subscriber loop
Fiber to the home (FTTH)
Working Temperature: -40℃～+85℃
Insertion Loss: ≤0.2dB
Return Loss UPC: ≥50dB
Return Loss APC: ≥60dB
Durability: ≤0.3dB(1000 matings)
|Splice tray||Splitter||Cable entry port||Adapter port|
|OTB-S48||48FO||380*355.8*140.5||2 tray, each 24FO||1pc PLC Splitter 1*8~32 box type||2 cable entry port (without cutting)||48 SC simplex|
|OTB-S48-A||48FO||380*355.8*140.5||2 tray, each 24FO||1pc PLC Splitter 1*8~32 box type||2 PG cable entry port||48 SC simplex|
|OTB-S48-B||48FO||380*355.8*140.5||2 tray, each 24FO||1pc PLC Splitter 1*8~32 box type||6 PG cable entry port||48 SC simplex|
|OTB-S48-C||48FO||380*355.8*140.5||2 tray, each 24FO||
4pcs 1*8 plastic splitter cassette
Or 2pcs 1*16 plastic splitter cassette
|2 PG cable entry port||No|
OTB-S48 (2 cable entry port, fiber entry without cutting)
OTB-S48-A (2 PG cable entry port)
OTB-S48-B (6 PG cable entry port)
OTB-S48-C (Plastic splitter cassette)
Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box, Fiber Terminal Box, Fiber Distribution Box, Fiber Box
