FTTX Networks Handheld Plastic Fiber Optic Test Equipment for 650nm Wavelength

China FTTX Networks Handheld Plastic Fiber Optic Test Equipment for 650nm Wavelength supplier

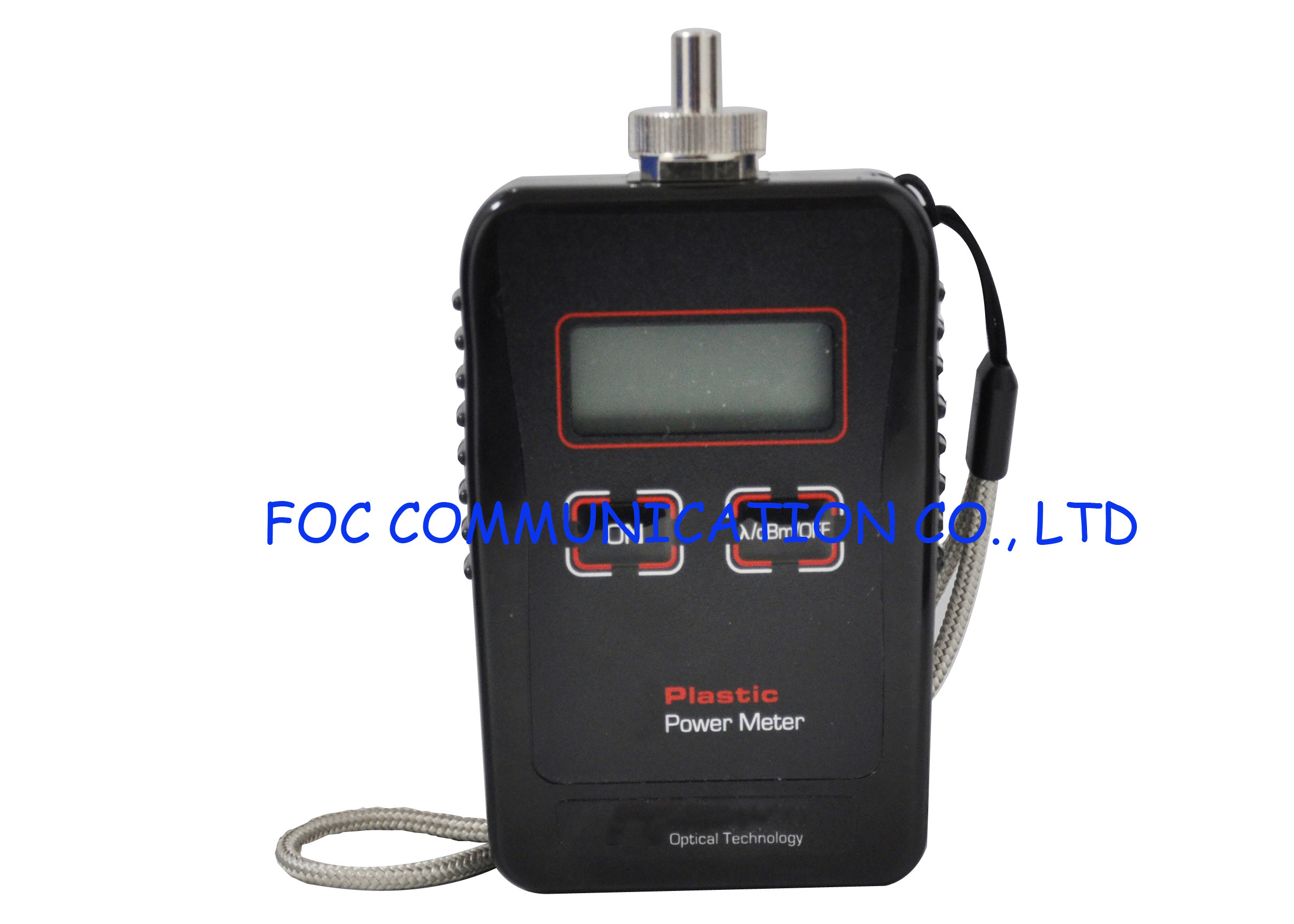

Large Image :  FTTX Networks Handheld Plastic Fiber Optic Test Equipment for 650nm Wavelength

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: Fiber Optic Power Meter FO3233

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Contact Now
Detailed Product Description
Type: Handheld Or Bench-top Wavelength: 650nm
Measurement Range: -70~+26dBm Connector: SC, FC, LC

FTTX Networks Handheld Plastic Fiber Optic Test Equipment for 650nm Wavelength



Handheld Plastic Optical Power meter used for testing the Optical power with the wavelength range 600-1000nm, the unit is w, dBm, with high resolution. There are 5 calibration wavelengths 635nm,650nm,780nm,850nm,980nm, both Linearity or un-linearity could show the optical power, it can be used for Optical power of short wavelength.

The instrument is with small size, light weight, it is convenient to take as low power consume, LCD Display,which make the testing is more convenient and faster.



Calibration wavelength:635nm,650nm,780nm,850nm,980nm

Measurement Range:-60~+10dBm



Specification

Wavelength  range

600-1000nm

Detector Type

Si(about 4Х4mm)

Measurement Range(dBm)

-60~+10



±5%

Calibration wavelength

635,650,780,850,980

Resolution

Linearity:0.1%;  logarithmic display:0.01dBm

Operating Temperature(℃)

-10~+60

Storage Temperature(℃)

-25~+70

Auto-shut off time(min)

10

Battery work time(h)

60

Power supply

3pcs of AAA1.5V

Weight(g)

200

Dimension(mm)

150X74X26





Notes:

1. wavelength range:There is a standard work wavelength range ,which is from λmin to λmax. The power meter could work as the Specification under the standard wavelength range.

2. Measurement Range: Test the maximum Optical power value as the specified  Specifications.

3. Sensitivity:It can show the minimum optical power under the specified wavelength and measurement range.

4. Uncertainly:the error between the test result of optical power value and standard optical power value.



3Components

1.Unit-----------------------------------------------------1pcs

2.User Manuel-----------------------------------------------------1pcs

3.Portable bag--------------------------------------------------------1pcs

4. 1.5V AAA Battery----------------------------------------------- -3 pcs

5. Swabs-----------------------------------------------------------------1 bag

6. Qualification card-------------------------------------------------1pcs

7. Label-----------------------------------------------------------------1pcs

8. Package box-------------------------------------------------------1pcs



Fiber Power Meter, Optical Fiber Power Meter, Handheld Power Meter, Bench-top Power Meter
