Handheld Fiber Optic Test Equipment / CWDM Power Meter For CWDM Systems

China Handheld Fiber Optic Test Equipment / CWDM Power Meter For CWDM Systems supplier

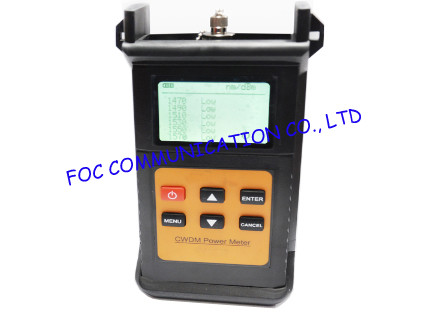

Large Image :  Handheld Fiber Optic Test Equipment / CWDM Power Meter For CWDM Systems

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: CWDM Power Meter FO3226

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Contact Now
Detailed Product Description
Type: Handheld Or Bench-top Wavelength: 1470-1610nm
Optical Power Range: -50-+3dBm Connector: FC/PC

Handheld CWDM Power Meter FO3226 High Accuracy Measurement For CWDM Systems



General information

FO3226 CWDM Power Meter is a handy measuring which is specially designed for CWDM system, covers wavelength from 1470-1610nm. It can measure and monitor optical power and attenuation value at the calibrated wavelengths of 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610nm. Testing at all calibrated wavelengths will be performed simultaneously and all testing results will be showed in the LCD display. FO3226CWDM power meter features simple operation and quick response, which greatly improves the testing efficiency. Its high accuracy measurement and easy-to-use design becomes an ideal tester in CWDM system testing and CWDM installation and maintenance. Simple to operate , greatly improve the working efficiency.



Key Features

CWDM System testing special purpose.

Test at all calibrated wavelength performed & showed simultaneously

500 items storage & upload by USB .



Specifications

Model

FO3226

Pass band(nm)

20

Wavelength  range(nm)

1470-1610

Calibrated  wavelength(nm)

1470, 1490,  1510, 1530, 1550, 1570, 1590, 1610

Optical Power Range(dBm)

-50-+3

Uncertainty(dB)

±0.4

Resolution

0.01

Data Storage

500 sets

Communication  Port

USB

Auto Power-off  (min)

10 minutes

Power supply adaptor

8.4V

Operation  temperature

-10~60°C

Operation Time

120 hours

Storage  temperature

-25~70°C

Packing & Delivery:



G.W.

420G

Packing sizes

180mm(L)*90mm(W)*36.5mm(H)
