Silicon Gum FTTX fiber optic joint box for Aerial Duct Outdoor Use

China Silicon Gum FTTX fiber optic joint box for Aerial Duct Outdoor Use supplier
Silicon Gum FTTX fiber optic joint box for Aerial Duct Outdoor Use supplier Silicon Gum FTTX fiber optic joint box for Aerial Duct Outdoor Use supplier

Large Image :  Silicon Gum FTTX fiber optic joint box for Aerial Duct Outdoor Use

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: FOJC08

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/Box
Delivery Time: 5-10days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Material: PC Applications: Aerial, Duct, Buried
Ports: 2 Input Port, 2 Output Ports Max.Capacity: 72Core Bunchy Fan Out

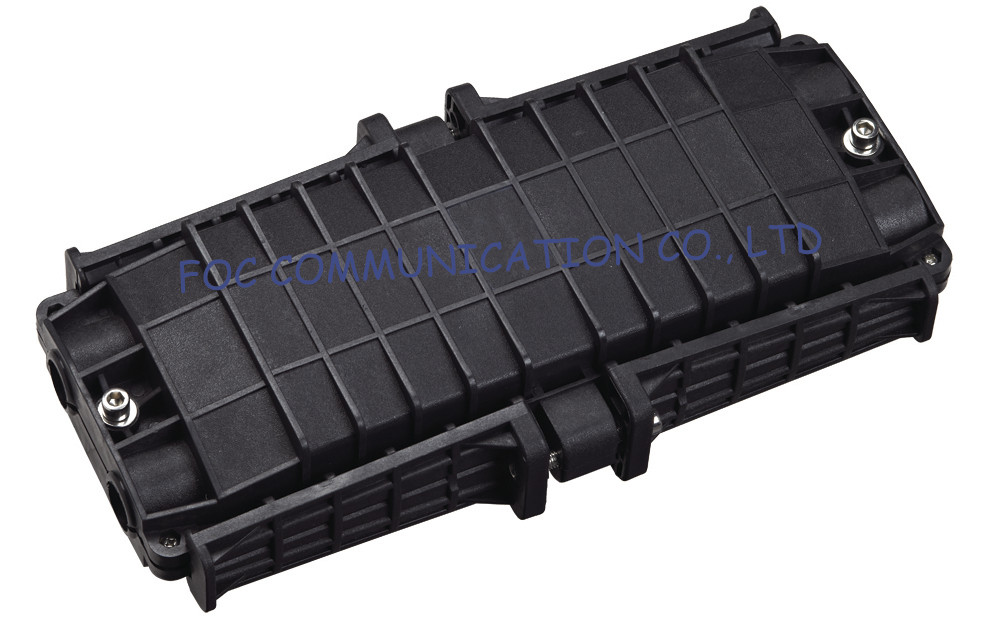

Silicon Gum FTTX fiber optic joint box for Aerial Duct Outdoor Use

This horizontal fiber optic splice closure allows two cables in and two cables out. It main use for splicing and branching of the cable. It is made from high-quality PC. The closure and the foundation plate are sealed with silicon gum material which fixes tightly by hoop. The Closure can be opened and used again.



This fiber optic splice closure is specialized designed for FTTx application.

The product is environmentally sealed enclosure for the fiber management system that provides the function of splice and passive component integration in the external network.



Features

Maintains bend radius for G.652D fibers

Small size with six cable ports 14 mm and an additional smaller port

Concentric rubber sealing grommets simplify installation and re-entry

Aerial, pole-mounting, direct buried and handheld applications

Adopt engineering PC plastic with high strength to make the closure longer life-span and excellent sealing performance

Silicon gum material sealing structure or heat-shrinkable sealing structure

Mount the splitter or pigtail in advance which will save the installation time and improve work efficiency

High reliability

Compact size

RoHS compliant; free from heavy metals and environmentally friendly



Applications: Aerial, Wall-mounting, Direct Buried



Specification

Item

FOJC08

Dimension(mm)

370×170×95

Weight (Kg)

1.8

Cable Diameter (mm)

Φ7-Φ20

Cables Entry & Exit

2 & 2

Max Capacity of Cores Per Splice Tray

12/24

Max Capacity

Bunchy: 72Cores

Sealing Structure of Cable Entry Port

The mechanical structure filled with Silicon Gum Material and heat-shrinkable Sealing Structure

Sealing Structure

Silicon Gum Material



Fiber Optic Splice Closure, Fiber Optic Joint Closure, Dome Closure, Horizontal Closure
