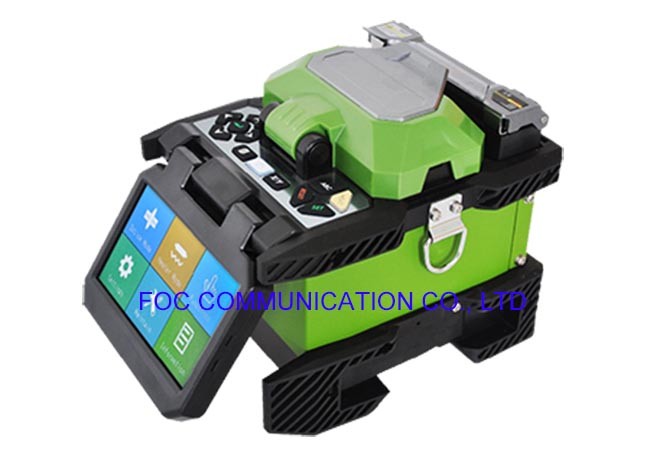

Multi Language Integrating 4106S fiber splicing machine

Multi Language Integrating 4106S fiber splicing machine
Multi Language Integrating 4106S fiber splicing machine Multi Language Integrating 4106S fiber splicing machine

Large Image :  Multi Language Integrating 4106S fiber splicing machine

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: Fusion Splicer 4106S

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Detailed Product Description
Material: Quartz Series Core Quantity: Simplex
Fiber Type: Type Cladding Diameterface: 80µm~150µm
Coating Diameter: 0.1mm~1.0mm,2.0mm,3.0mm,2.0mm*3.1mm
High Light:

5.2ah optic fiber communication instrument

,

4.3 inch fiber optic splicing machine

Fusion Splicer 4106S Intelligent Welding Multi-language Instrument Integrating Optic Fiber Communication



General information



Fusion splicer 4106S implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with 4106, our start product, 4106S lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get a new level fusion splicing experience.



Key Features

  • Precise cladding alignment, ultra-low fiber fusion splicing consumption 7s fast fusion splicing
  • 18s highly efficient heating
  • 320 times image magnification
  • 5mm fusion splicing for fibers of ultra-short cutting length
  • 300 groups of fusion splicing modes
  • 100 groups of heating modes
  • 10000 groups of fusion records
  • 64 images storage Ceramic presser foot
  • Dual-direction splicing, automatic splicing, intelligent pyrocondensation
  • USB and SD card interfaces, U-disk automatic software upgrade
  • Three Splicing modes: auto, half-auto, manual
  • Built-in modular lithium battery, supports 220 times of splicing and heating cycles.



Applications

  • Fiber Optic Lab Testing
  • Other Fiber Optic Measurements
  • Maintenance in Telecom
  • Maintenance CATV



Technical Specifications

Optical Specifications 4106S

Fiber Heater



Effective heating length: ≤60mm

Heating time: 10s~255s, settable as required.

Typical heating time: ≤25s(standard 40mm sleeve),≤28s(standard 60mm sleeve).



Power supply



External DC power input

Input voltage is 13.5±0.5V; input current≥4.4A; socket center is positive.

Built-in lithium-ion battery for power supply.

The lithium-ion battery is 11.1V, ≥5.2Ah, full charging time is approx. 2.5h.

Dimensions

and weight

Dimensions: W×H×D=120mm×130mm×154mm(without vibration-free rubber pad)

Weight: approx.1.95kg (with the lithium-ion battery), approx.1.75kg (without the lithium-ion battery).





Environmental

conditions



Operating temperature: -10℃~+50℃

Temperature limit: -20℃~+55℃

Operating humidity: 95%RH and below(non-condensing)

Max. wind speed: 15m/s

Storage temperature: -40℃~+80℃,

Storage humidity: 95%RH and below (non-condensing).











Splice loss

Typical loss values of spliced points are:

Single-mode fiber: 0.03dB

Multi-mode fiber: 0.01dB

Dispersion shifted fiber: 0.04dB

Non-zero dispersion shifted fiber: 0.04dB

Typical splice time: 7s(FAST mode, typical)

Monitor: with touch screen function, 4.3 inch TFT color LCD

USB port: system update and data transmission

Real-time display of remaining battery capacity

Built-in lighting with high brightness, for convenient loading of fibers


Standard Configuration of Fusion Splicer 4106S
MODEL INCLUDES
4106S

Instrument (Main Body), Fiber Cleaver, Fiber Coat Stripper, Internal Battery, Charger, AC Power Cord, 2G USB Flash Disk, Spare Electrodes (one pair), Cooling Tray, Alcohol Pump Bottle, Carrying Case, Carrying Belt, User's Manual.
