Fiber Optic Test and measurement Visual Fault Identifier VFL Used in Fiber Optic Cable Testing

China Fiber Optic Test and measurement Visual Fault Identifier VFL Used in Fiber Optic Cable Testing supplier
Fiber Optic Test and measurement Visual Fault Identifier VFL Used in Fiber Optic Cable Testing supplier Fiber Optic Test and measurement Visual Fault Identifier VFL Used in Fiber Optic Cable Testing supplier

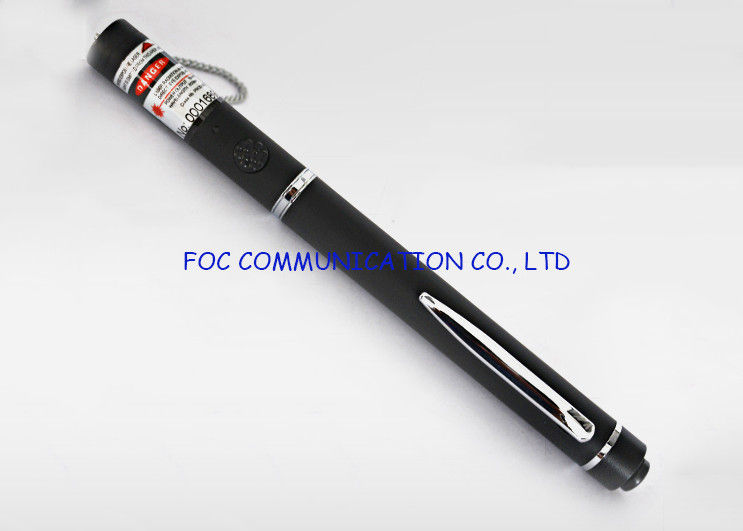

Large Image :  Fiber Optic Test and measurement Visual Fault Identifier VFL Used in Fiber Optic Cable Testing

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: Visual Fault Locator VFL650-6S

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Contact Now
Detailed Product Description
Type: Handheld Wavelength(nm): 650
Output Power: 5mW, 10mW, 20mW, 30mW Optical Connector: FC

Fiber Optic Test Equipment Visual Fault Identifier VFL Used in Fiber Optic Cable Testing



General information



The Visual Fault Locator launches 650nm visible laser light into the fiber.


The visual fault locator devices allow tracing and testing fibers for continuity or proper connections and one even is used to optimize splices or pre polished/splice connectors.

Many of the problems in connection of fiber optic networks are related to making proper connections. Since the light used in systems is invisible infrared light (IR) beyond the range of the human eye, one cannot see the system transmitter light. By injecting the light from a visible source, such as a LED, laser or incandescent bulb, one can visually trace the fiber from transmitter to receiver to ensure correct orientation and check continuity besides. The simple instruments that inject visible light are called fiber tracers or visual fault locators.



Applications

  1. Maintenance in telecom , CATV
  2. Test Lab of optical fibers
  3. Fiber routing and continuity checking in optical networks.
  4. Other fiber optic measurements

Features

  1. Very simple to use, compact pen-style checker
  2. High quality, durable, drop resistant, metal / rubber body
  3. Eye-safe Class 1 visible laser needs no safety precautions
  4. 2.5 mm universal connector with translucent captive cap
  5. Will not turn on by mistake, or roll off a bench
  6. Continuous or pulsed operation
  7. The smallest pen available with convenient 2 x AA batteries
  8. Also available in convenient Test Kits

Function

  1. Fiber breakage, bending failure location Fault check
  2. OTDR dead zone
  3. End-to-end optical recognition
  4. Mechanical connection point optimization

Technical Specifications

Model

VFL650-6S

Central wavelength

650nm±10nm (635nm is available on request)

Emitter type

FP-LD

Output power

5mw

10mw

20mw

30mw

Laser Range

≥5KM

≥10KM

≥20KM

≥30KM

Optical connector

2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request

Operating model

Both CW and Pulse available

Pulse frequency

2Hz to 3Hz/9Hz

Power supply

2AA alkaline batteries

Battery

AA alkaline battery

Operating temperature

-20°C to 60°C

Storage temperature

-40°C to 85°C

Dimension

176*16mm

Weight

100g (without battery)



Standard Packages – Pen-type Visual Fault Locator

Model

Includes

VFL-650-2S

Main unit, User Manual



Fiber Optic Test and measurement Visual Fault Identifier VFL Used in Fiber Optic Cable Testing



Fiber Optic Visual Fault Locator, Optical Fiber Visual Fault Locator, Handheld Fiber Visual Fault Locator, Bench-top Visual Fault Locator
