Optical Fiber Visual Fault Locator VFL 10mW for CATV system and maintenance
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | Visual Fault Locator VFL650-2S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | 1PCS/BOX |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000PCS/MONTH |
|
Detail Information |
|||
| Type: | Handheld | Wavelength(nm): | 650 |
|---|---|---|---|
| Output Power: | 5mW, 10mW, 20mW, 30mW | Optical Connector: | FC |
| Highlight: | fiber optic test tools,fiber optic test and measurement |
||
Product Description
Fiber Optic Test Equipment Optical Fiber Visual Fault Locator VFL 10mW
General information
In today's fast-paced workplace maximizing productivity is essential. Whether installing new fiber links or troubleshooting an existing network, the faster you can locate a problem, the faster you can fix it. That's easier said than done when you are faced with a complex network of fibers, connectors and patch cords.
The laser-powered Optical Fiber Visual Fault Locator is a cable continuity tester that locates fibers, verifies cable continuity and polarity. This cable continuity tester helps find breaks in cables, connectors and splices. Continuous and flashing modes make for easier identification. Compatible with 2.5mm and 1.25mm connectors for easy connection. Ruggedly constructed for demanding field-testing. This visual fault locator has a long battery life for hours of use.
Applications
- Optic fiber communication and maintenance
- Security system optic fiber transmitter setup and maintenance
- Optic fiber CATV system and maintenance
- Optic fiber sensing research
- Optical devices manufacture and research
Features
- Convenient for use and carry Dust-proof design keeps fiber connectors clean
- Compact in size, light in weight, red laser output, both SM and MM available.
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
Technical Specifications
|
Model |
VFL650-2S |
|||
|
Central wavelength |
650nm±10nm (635nm is available on request) |
|||
|
Emitter type |
FP-LD |
|||
|
Output power |
5mw |
10mw |
20mw |
30mw |
|
Laser Range |
≥5KM |
≥10KM |
≥20KM |
≥30KM |
|
Optical connector |
2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request |
|||
|
Operating model |
Both CW and Pulse available |
|||
|
Pulse frequency |
2Hz to 3Hz/9Hz |
|||
|
Power supply |
2AA alkaline batteries |
|||
|
Battery |
AA alkaline battery |
|||
|
Operating temperature |
-20°C to 60°C |
|||
|
Storage temperature |
-40°C to 85°C |
|||
|
Dimension |
Φ25 X 195 |
|||
|
Weight |
100g (without battery) |
|||

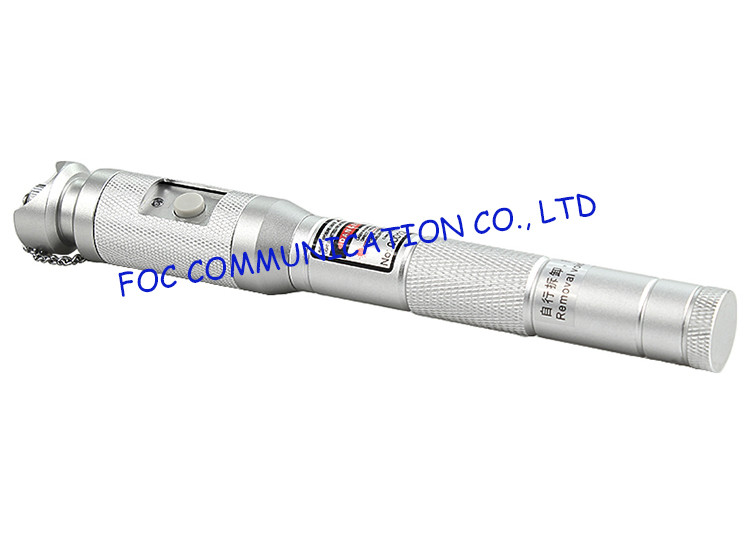

Standard Packages – Pen-type Visual Fault Locator
|
Model |
Includes |
|
VFL-650-2S |
Main unit, User Manual |
