Erect Type 6 Ports fiber optic splice closures 144Core Bunchy Fan Out

China Erect Type 6 Ports fiber optic splice closures 144Core Bunchy Fan Out supplier

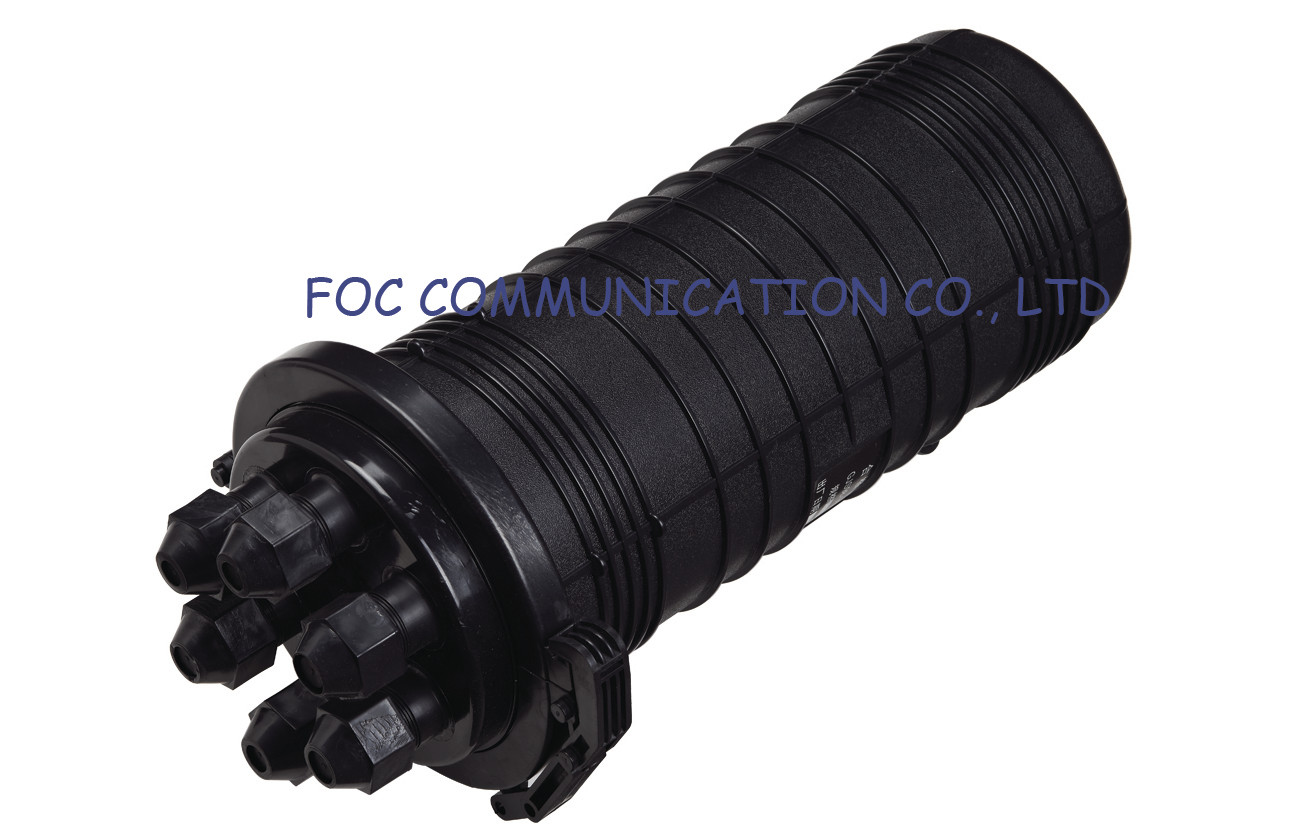

Large Image :  Erect Type 6 Ports fiber optic splice closures 144Core Bunchy Fan Out

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: FOJC98-002

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/Box
Delivery Time: 5-10days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Material: PC Applications: Aerial, Duct, Buried
Ports: 3 Input Port, 3 Output Ports Max.Capacity: 144Core Bunchy Fan Out

Erect Type 6 Ports fiber optic splice closures 144Core Bunchy Fan Out

Our fiber splice closure is a full series of splice closures and trays used for housing, organizing and protecting single or mass fusion fiber splices. Completely modular in design, the system offers total flexibility to meet the evolving requirements of worldwide fiber optic networks.



Fiber optic splice closure is the equipment used to offer room for fusion splicing optical fibers. It also provides protection for fused fiber joint point and fiber cables. There are mainly two types of closures: vertical type and horizontal type. A large variety of fiber splice closures are designed for different applications, such as aerial, duct fiber cables and direct burial. Generally speaking, they are usually used in outdoor environment, even underwater.



Features

A large storage area for tubes, microstructures or for by-passing cables

Splice trays are structured in a tree style allowing easy access to each splice

Large cable guide channels on each side of the cable closure

Each fibre splice tray is protected by an individual cover

Marking of each splice tray is visible in the open or closed position

Watertight splice closures



Applications: Aerial, Wall-mounting, Direct Buried



Specification

Item

FOJC98-002

Dimension(mm)

Φ240×440

Weight (Kg)

4

Cable Diameter (mm)

Φ7-Φ22

Cables Entry & Exit

3 & 3

Max Capacity of Cores Per Splice Tray

12/24

Max Capacity

Bunchy:144Cores

Sealing Structure of Cable Entry Port

The mechanical structure filled with Silicon Gum Material and heat-shrinkable Sealing Structure

Sealing Structure

Silicon Gum Material

Fiber Optic Splice Closure, Fiber Optic Joint Closure, Dome Closure, Horizontal Closure
