OTB-E0224 Fiber Optic Termination Box For Fiber Splicing And Terminating

China OTB-E0224 Fiber Optic Termination Box For Fiber Splicing And Terminating supplier

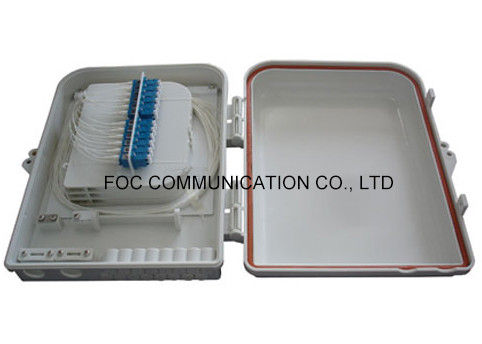

Large Image :  OTB-E0224 Fiber Optic Termination Box For Fiber Splicing And Terminating

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: OTB-E0224

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Contact Now
Detailed Product Description
Mount Type: Wall Mount, Pole Mount Material: ABS Plastic
Port: 12, 24, 32, 48, 72, 96 Port Connector: SC, FC, LC, ST, E2000

Optical Fiber Termination Box OTB-E0224 For Fiber Splicing And Terminating



Fiber optic termination box is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



This 12 core fiber optic terminal box can load with 12pcs of SC simplex adapters. All the components can be pre-assembled and easy to be installed together.  And it is a perfect solution for optical fiber installations and management.



Features

Material: ABS plastic, water-proof IP65.

Cable, pigtails, patch cords are running through its own path without disturbing each other.

Suitable for SC, LC, FC, ST ... etc. adapters and can load PLC splitter.

Standard size, light weight and reasonable enclosed structure.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc.

Distribution panel can be flipped up, easy for maintenance and installation.

Indoor & outdoor wall mounted, pole mounted application.



Application

LAN/WAN

CATV

Telecommunications subscriber loop

Fiber to the home (FTTH)



Specifications

Working Temperature: -40℃~+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)



Description OTB-E0224
Dimensions(W×D×H) 250.4x322.5x91.9mm
Splice capacity Max. 36 cores
Max. qty of splice tray 3
Max. capacity of splice tray 12
Color Ivory/White
Main body material Plastic(ABS)
Installation type Wall mounting and pole mounting



Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box
