|Mount Type:||Wall Mount, Pole Mount||Material:||ABS Plastic|
|Port:||12, 24, 32, 48, 72, 96 Port||Connector:||SC, FC, LC, ST, E2000|
cable termination box,
ftth termination box

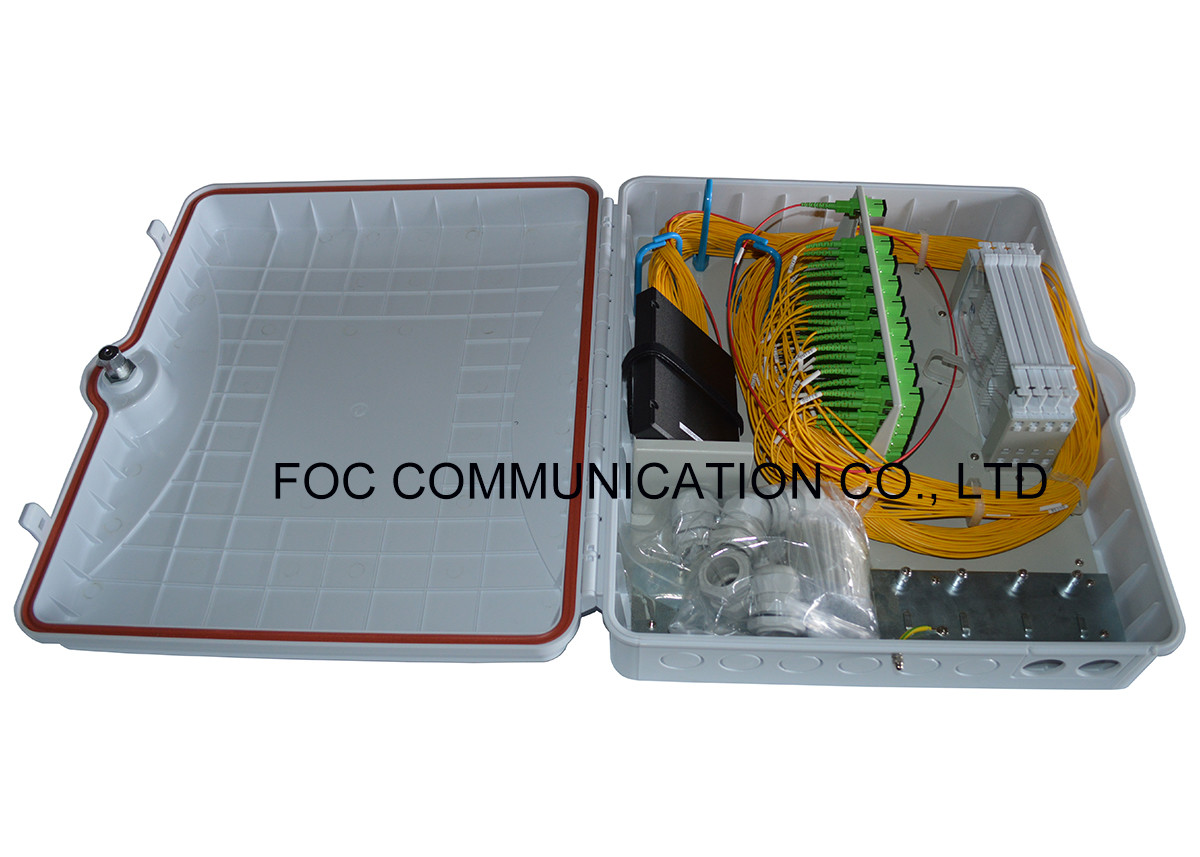

Fiber Optic Termination Box 96 Core With 1:64 PLC ABS Module Type For FTTX
The wall mount optical termination box is based on a modular design philosophy, fully considering various applications and combining different requirements. The optical termination box is designed to provide ample fiber optic cable routing, storage of fibers, split fiber, manage pigtails and patchcords.
Fiber splitter termination box is available for the distribution and terminal connection for various kinds of optical fiber system, it is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails. Can be installed on the wall. May adapt variety of optical connection styles. Optical fiber can be managed effectively. Available for PLC Splitter.
We offer 2 ports, 4 ports, 6 ports, 8 ports,12 ports, 24 ports, 48 ports, 96 ports fiber distribution box, they are made of ABS plastic.
Different adapter panel, SC, LC, ST, FC ...
Support cable entry without cutting
Max. can load 8pcs 1:8 or 1pc 1:64 box type splitter
72 adapter port
Max.4pcs splice tray for 96 fiber splicing (splice tray in one side)
Max. 6pcs PG21 cable port + 2 rubber cable port
Wall mounted or pole mounted applications
Data communications Networks
Local Area Networks, Wide Area Networks
Widely used in FTTH access network.
Working Temperature: -40℃～+85℃
Insertion Loss: ≤0.2dB
Return Loss UPC: ≥50dB
Return Loss APC: ≥60dB
Durability: ≤0.3dB(1000 matings)
|OTB-S96-A||72||Max. 8pcs 1:8 or 1pc 1:64 box type splitter|
Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box, Fiber Termination Box, Fiber Distribution Box
